Invert Bucket Steam Trap (Flanged)
Model: VKRF-16
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN50
- Pressure Class
- PN16
- Standards
- DIN 2501
- End connection
- DIN 2501 Flange
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- other.bucket
- other.cover
- other.filter
- other.orifice
- other.valve
Dimensions per size(6 sizes)

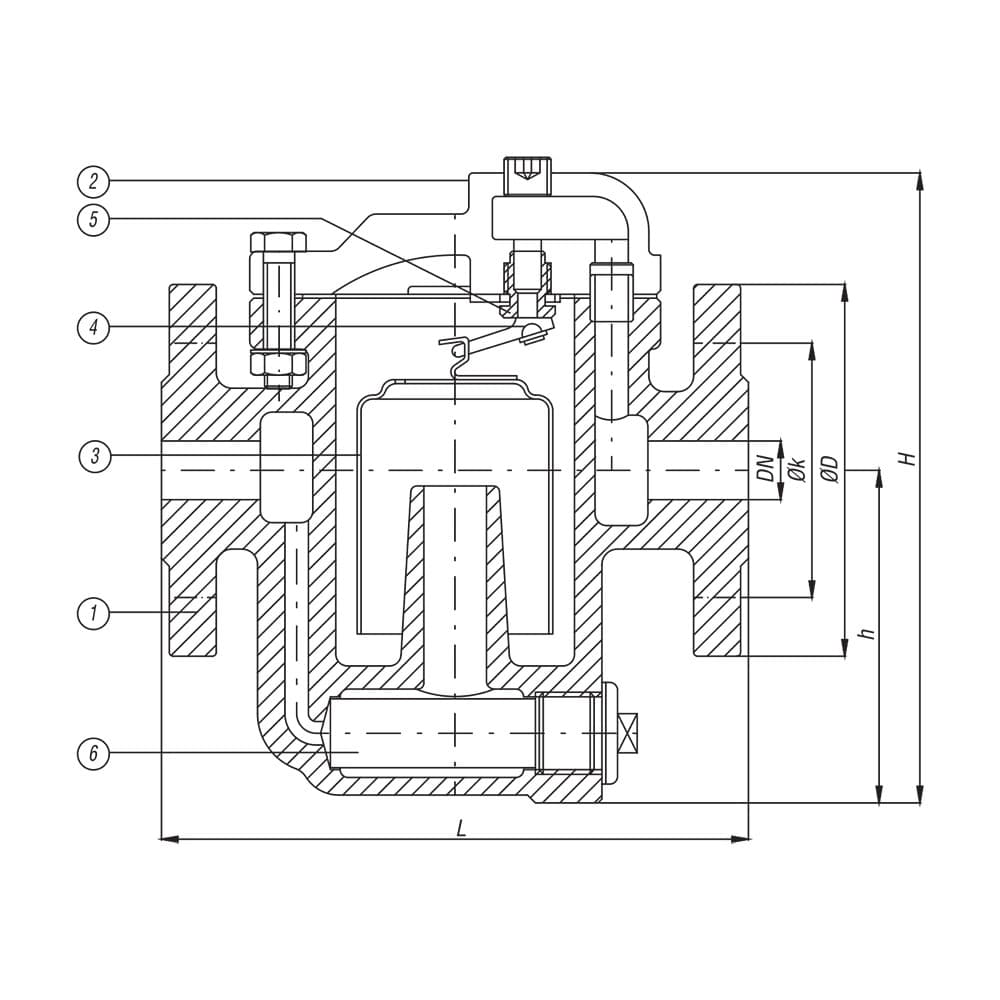

| Size | L | h | H | D | k | Weight |
|---|---|---|---|---|---|---|
| DN15 | 156 mm | 81 mm | 150 mm | 95 mm | 65 mm | 4.2 kg |
| DN20 | 200 mm | 146 mm | 238 mm | 105 mm | 75 mm | 9 kg |
| DN25 | 240 mm | 187 mm | 320 mm | 115 mm | 85 mm | 17 kg |
| DN32 | 260 mm | 187 mm | 320 mm | 140 mm | 100 mm | 21 kg |
| DN40 | 280 mm | 200 mm | 370 mm | 150 mm | 110 mm | 29 kg |
| DN50 | 300 mm | 200 mm | 370 mm | 165 mm | 125 mm | 30 kg |
Features
- Inverted bucket mechanism
- Bucket material 1.4301 stainless steel
- Orifice material 1.4021 stainless steel
- Filter material 1.4301 stainless steel
- Cover material GG 25 / GGG-40 cast iron
Description
Flanged invert bucket steam trap rated at PN16 pressure. Body and cover constructed from grey cast iron (GG 25 / GGG-40), with stainless steel internal components including bucket, valve, orifice, and filter. Available in nominal diameters DN15 to DN50 with DIN 2501 flange dimensions.
