SKAS - Sewage Combination Air Release Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN25-DN200
- Pressure Class
- PN10 / PN16
- Standards
- EN 1074-4
- End connection
- Threaded
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- seat
- stem
- butterfly ball valve
- float
- guide barrel
- hex bolt
- middle part
- nozzle seat
- o rings
- plug
- screw
- sealing arc
- small nozzle
- washer

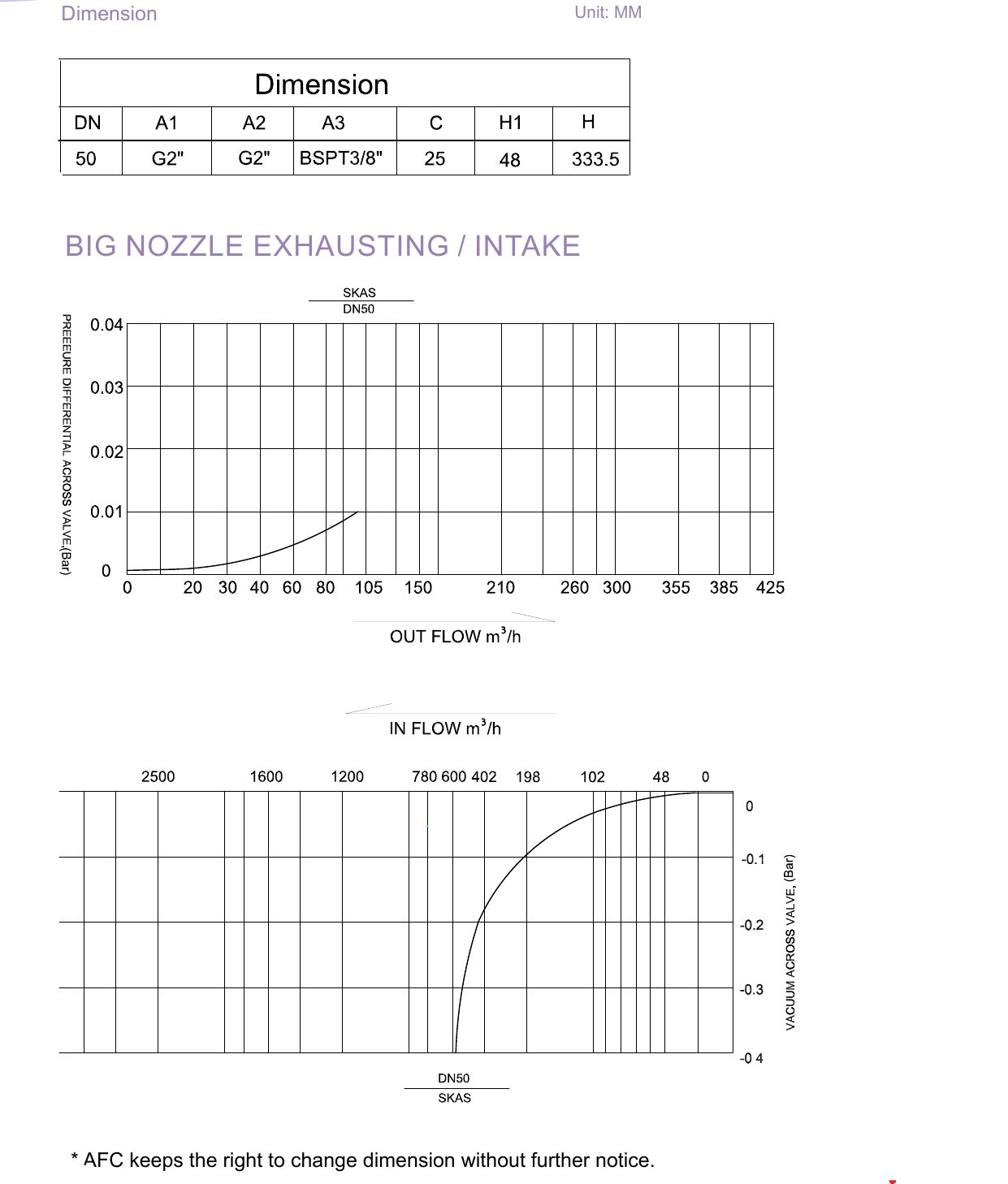

Dimensions per size(1 sizes)
| Size | A1 | A2 | A3 | C | H1 | H | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | G2" inch | G2" inch | BSPT3/8" inch | 25 mm | 48 mm | 333.5 mm | — |

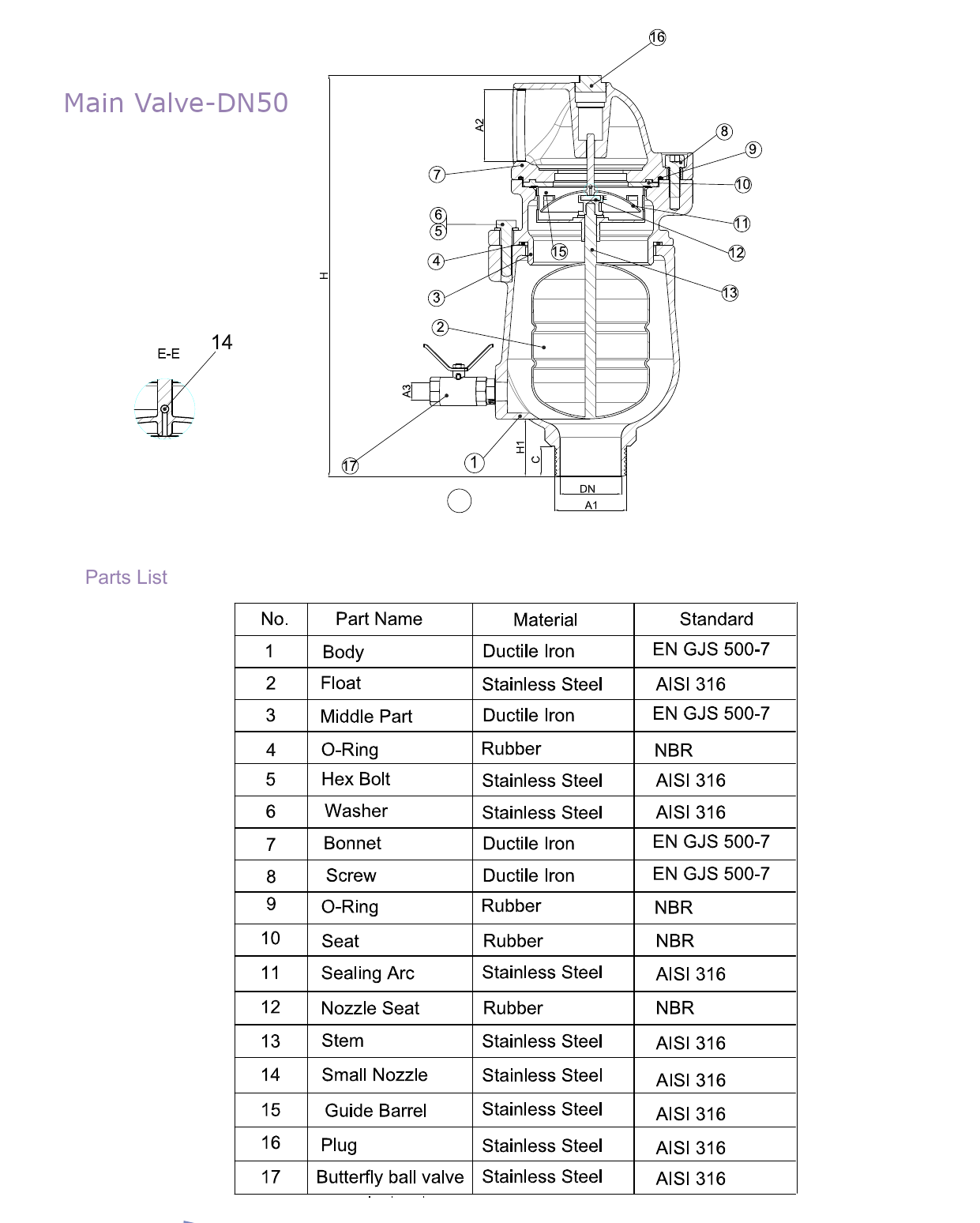

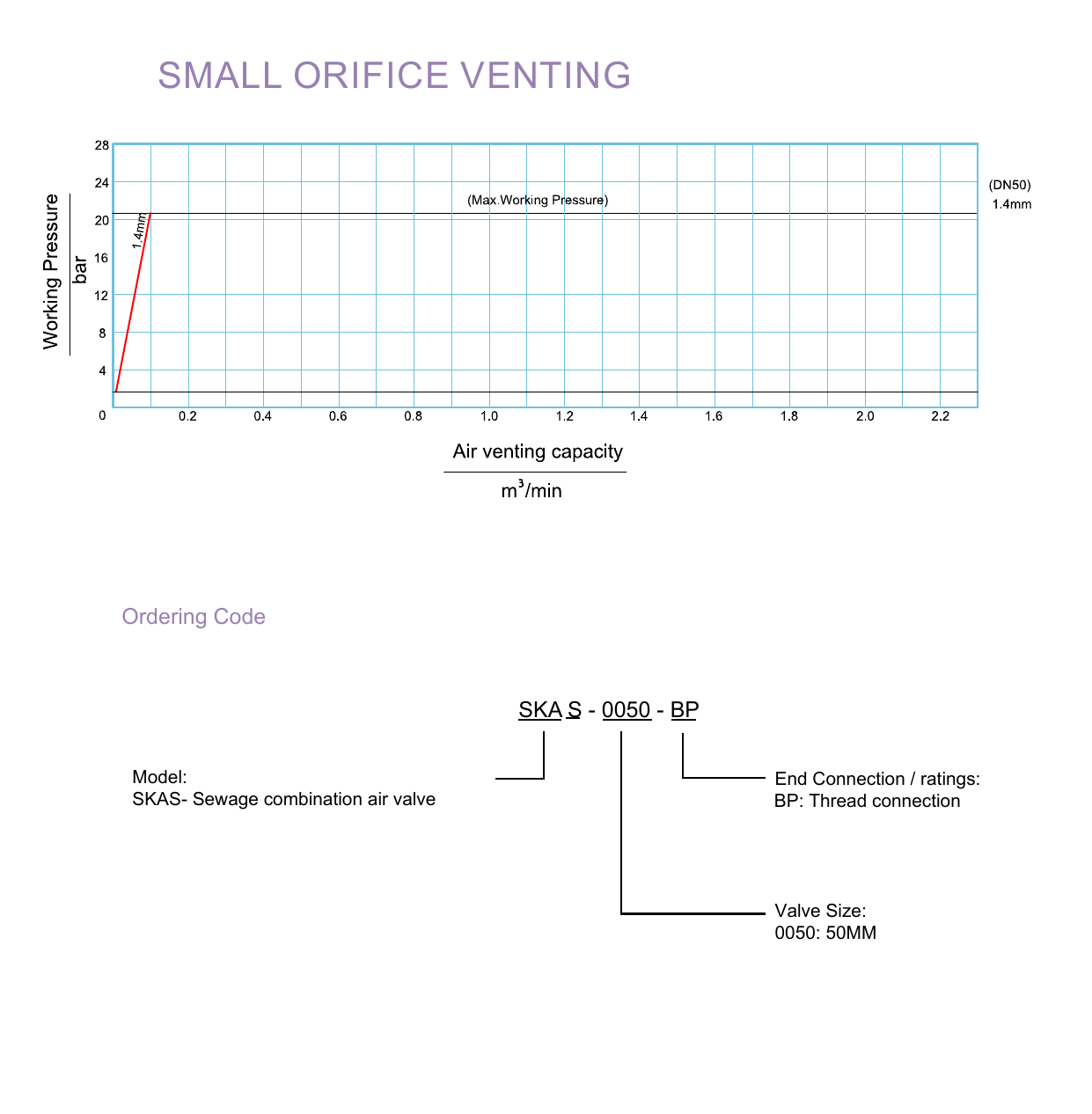

Technical drawings(3 pages)
Approvals
Features
- The SKAS provides combined air release and vacuum breaking for sewage systems operating under both gravity and pressurised conditions
- Non-clog internals and a ball float resist fouling from wastewater constituents
- Vacuum break function protects pipe walls from collapse during drain-down or sudden pump shutdown
Description
Sewage air release for gravity and pressurised systems. The SKAS provides combined air release and vacuum breaking for sewage systems operating under both gravity and pressurised conditions. Non-clog internals and a ball float resist fouling from wastewater constituents. Vacuum break function protects pipe walls from collapse during drain-down or sudden pump shutdown.
Available pressure classes
Pressure classes this product is rated to.
