Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN200-DN600
- Pressure Class
- PN16 / PN25
- Standards
- EN 1074-5
- End connection
- EN 1092-2 flange
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | -10°C | 10 bar |
| PN10 | 80°C | 10 bar |
| PN16 | -10°C | 16 bar |
| PN16 | 80°C | 16 bar |
| PN25 | -10°C | 25 bar |
| PN25 | 80°C | 25 bar |
Dimensions per size(7 sizes)

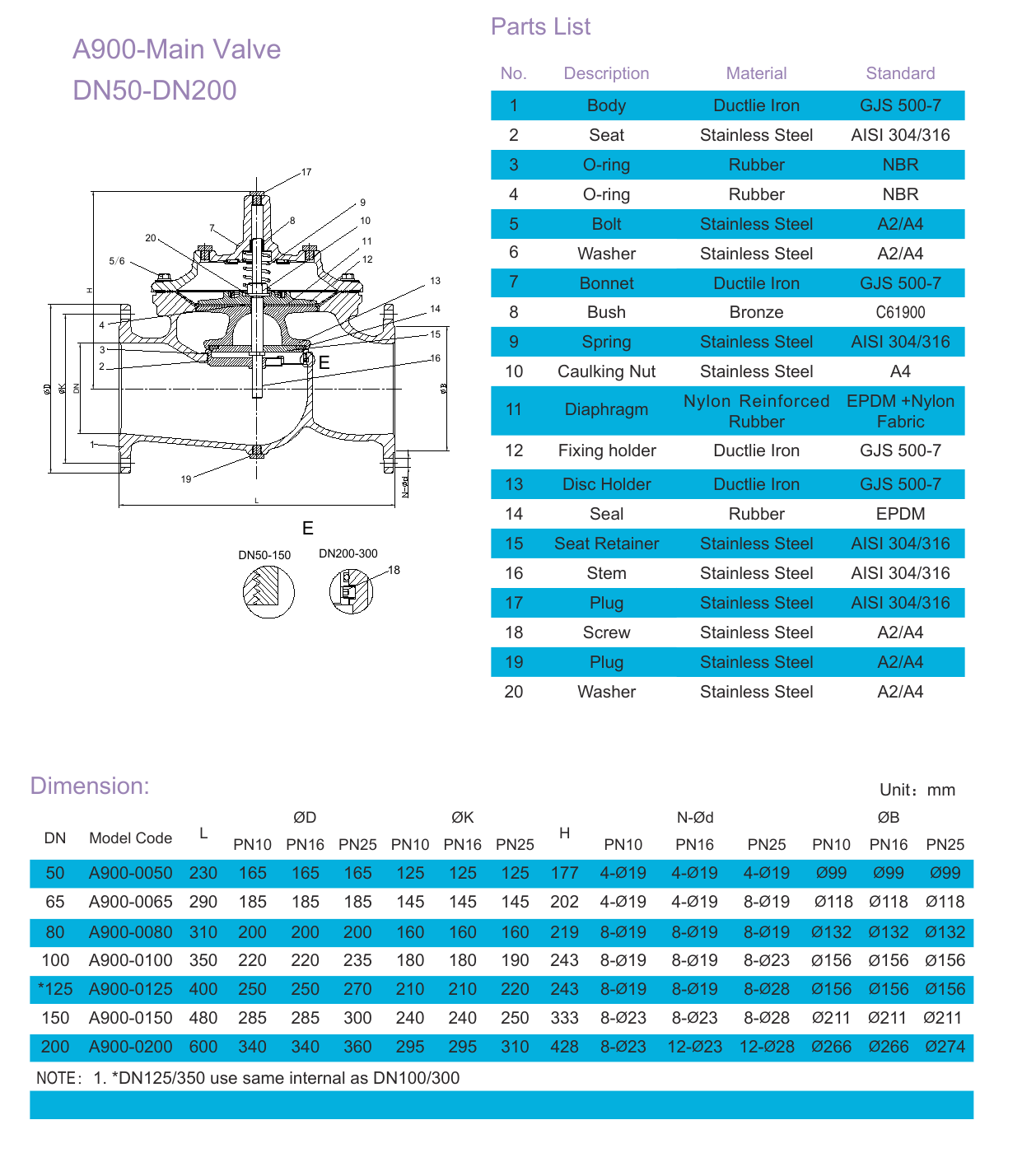

| Size | L | H | OD_PN10 | OD_PN16 | OD_PN25 | K_PN10 | K_PN16 | K_PN25 | OB | OB_PN10 | OB_PN16 | OB_PN25 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 mm | 177 mm | 165 mm | 165 mm | 165 mm | 125 mm | 125 mm | 125 mm | 99 mm | — | — | — | — |
| DN65 | 290 mm | 202 mm | 185 mm | 185 mm | 185 mm | 145 mm | 145 mm | 145 mm | 118 mm | — | — | — | — |
| DN80 | 310 mm | 219 mm | 200 mm | 200 mm | 200 mm | 160 mm | 160 mm | 160 mm | 132 mm | — | — | — | — |
| DN100 | 350 mm | 243 mm | 220 mm | 220 mm | 235 mm | 180 mm | 180 mm | 190 mm | 156 mm | — | — | — | — |
| DN125 | 400 mm | 243 mm | 250 mm | 250 mm | 270 mm | 210 mm | 210 mm | 220 mm | 156 mm | — | — | — | — |
| DN150 | 480 mm | 333 mm | 285 mm | 285 mm | 300 mm | 240 mm | 240 mm | 250 mm | 211 mm | — | — | — | — |
| DN200 | 600 mm | 428 mm | 340 mm | 340 mm | 360 mm | 295 mm | 295 mm | 310 mm | — | 266 mm | 266 mm | 274 mm | — |

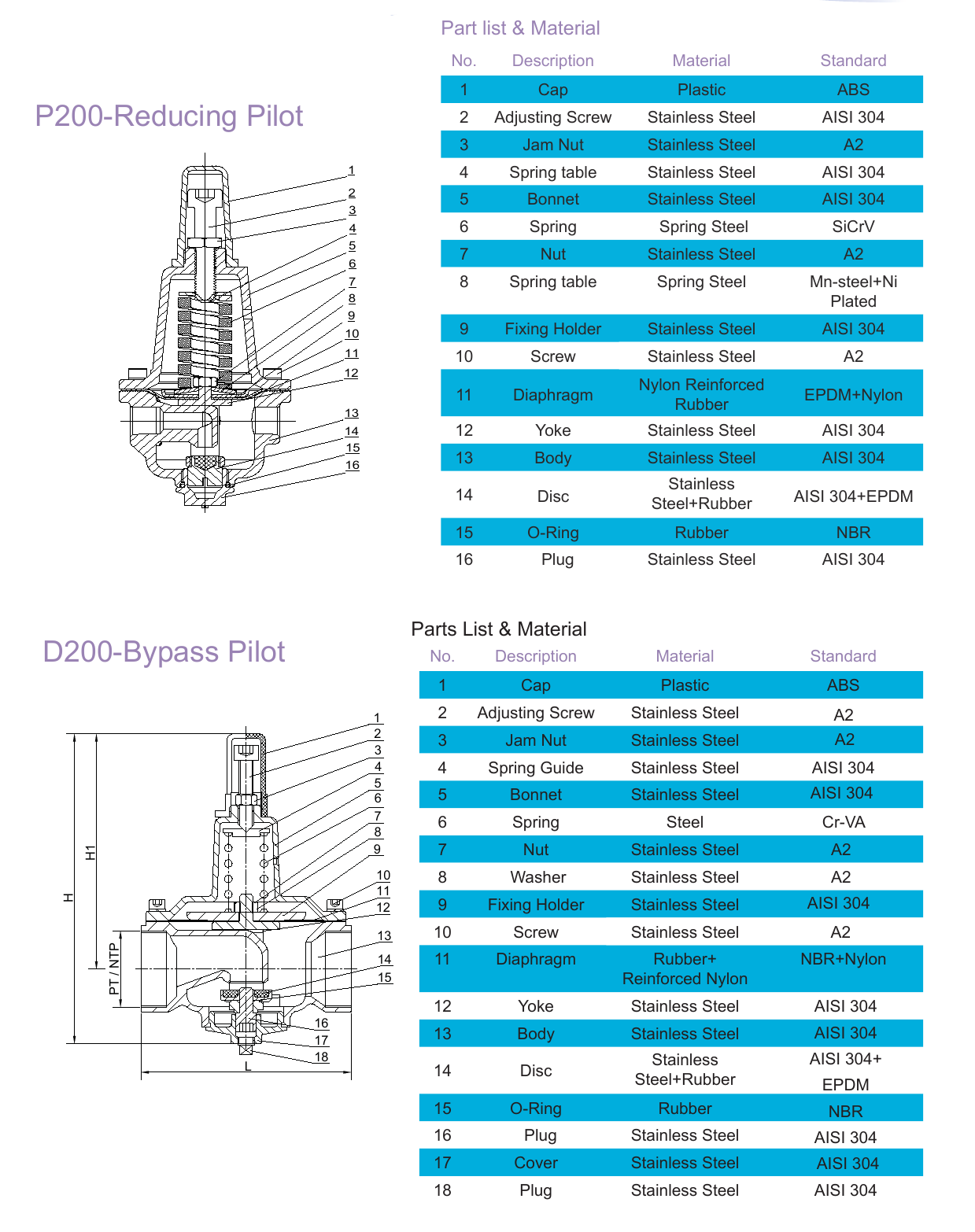

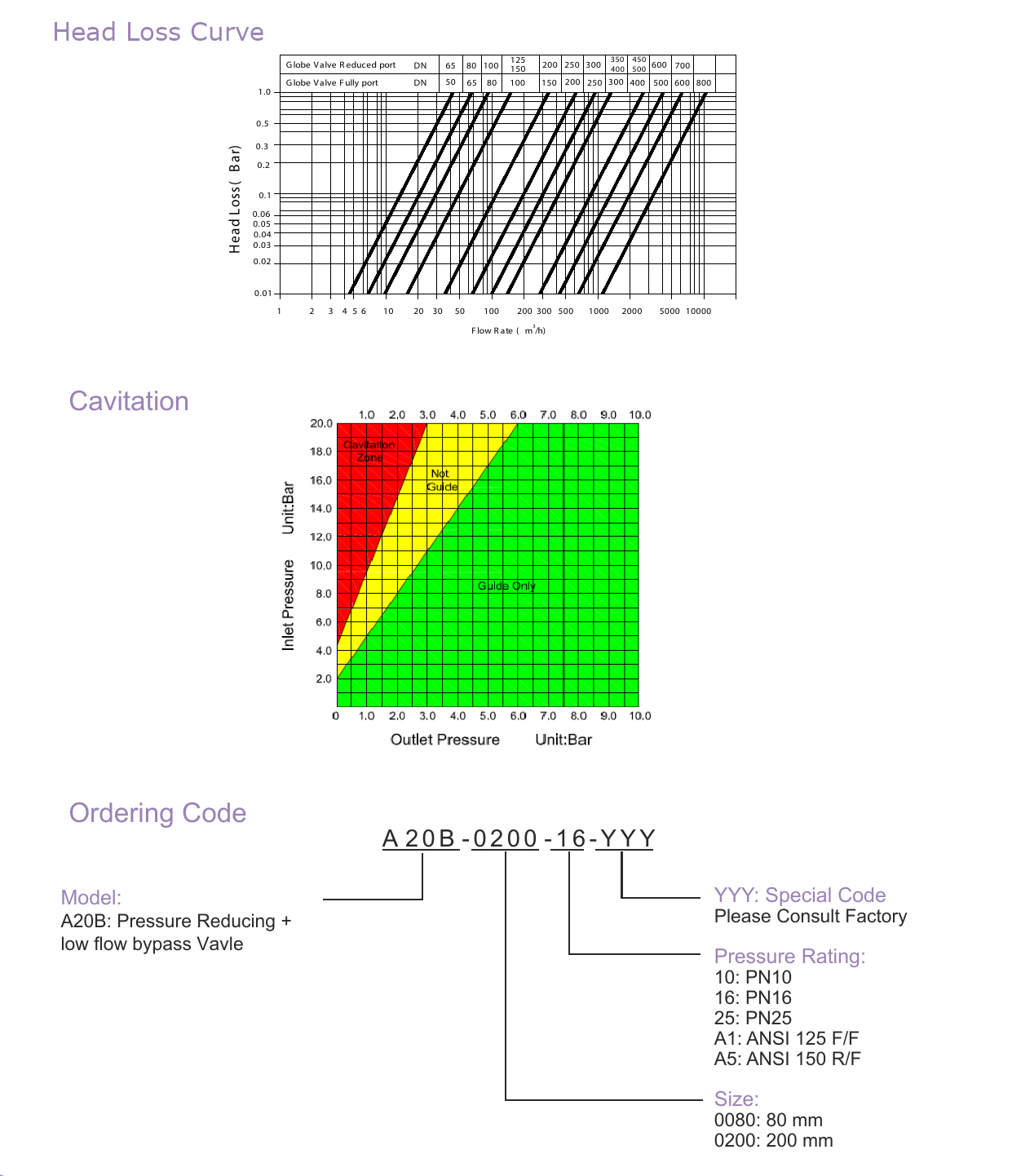

Technical drawings(3 pages)
Approvals
Features
- The A20B is a high-flow pressure reducing valve for trunk main and bulk supply duty where the A200 body is undersized for the required flow capacity
- The enlarged body and flow passages accommodate higher flow rates at low headloss, making it suitable for primary pressure management stations serving large distribution zones
Description
The A20B is a high-flow pressure reducing configuration of the A900 main valve body for trunk main and bulk supply duty where the standard A200 body is undersized for the required flow capacity. The enlarged body and flow passages accommodate higher flow rates at low headloss. Fitted with a P200 reducing pilot, the control behaviour is identical to the A200. Used at primary pressure management stations serving large distribution zones.
