BCVX - Ball Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50-DN400
- Pressure Class
- PN10 / PN16
- Standards
- EN 12334
- End connection
- EN 1092-2 flange
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- gasket
- bolt
- float
- plug
- washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 | -10°C | 16 bar |
| PN16 | 80°C | 16 bar |
Dimensions per size(9 sizes)
| Size | L | D_PN10 | K_PN10 | B | D_PN16 | K_PN16 | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 200 mm | 165 mm | 125 mm | 19 mm | — | — | — |
| DN65 | 240 mm | 185 mm | 145 mm | 19 mm | — | — | — |
| DN80 | 260 mm | 200 mm | 160 mm | 19 mm | — | — | — |
| DN100 | 300 mm | 220 mm | 180 mm | 19 mm | — | — | — |
| DN125 | 350 mm | 250 mm | 210 mm | 19 mm | — | — | — |
| DN150 | 400 mm | 285 mm | 240 mm | 19 mm | — | — | — |
| DN200 | 500 mm | 340 mm | 295 mm | 20 mm | — | — | — |
| DN250 | 600 mm | 395 mm | 350 mm | 22 mm | 405 mm | 355 mm | — |
| DN300 | 700 mm | 445 mm | 400 mm | 24.5 mm | 460 mm | 410 mm | — |

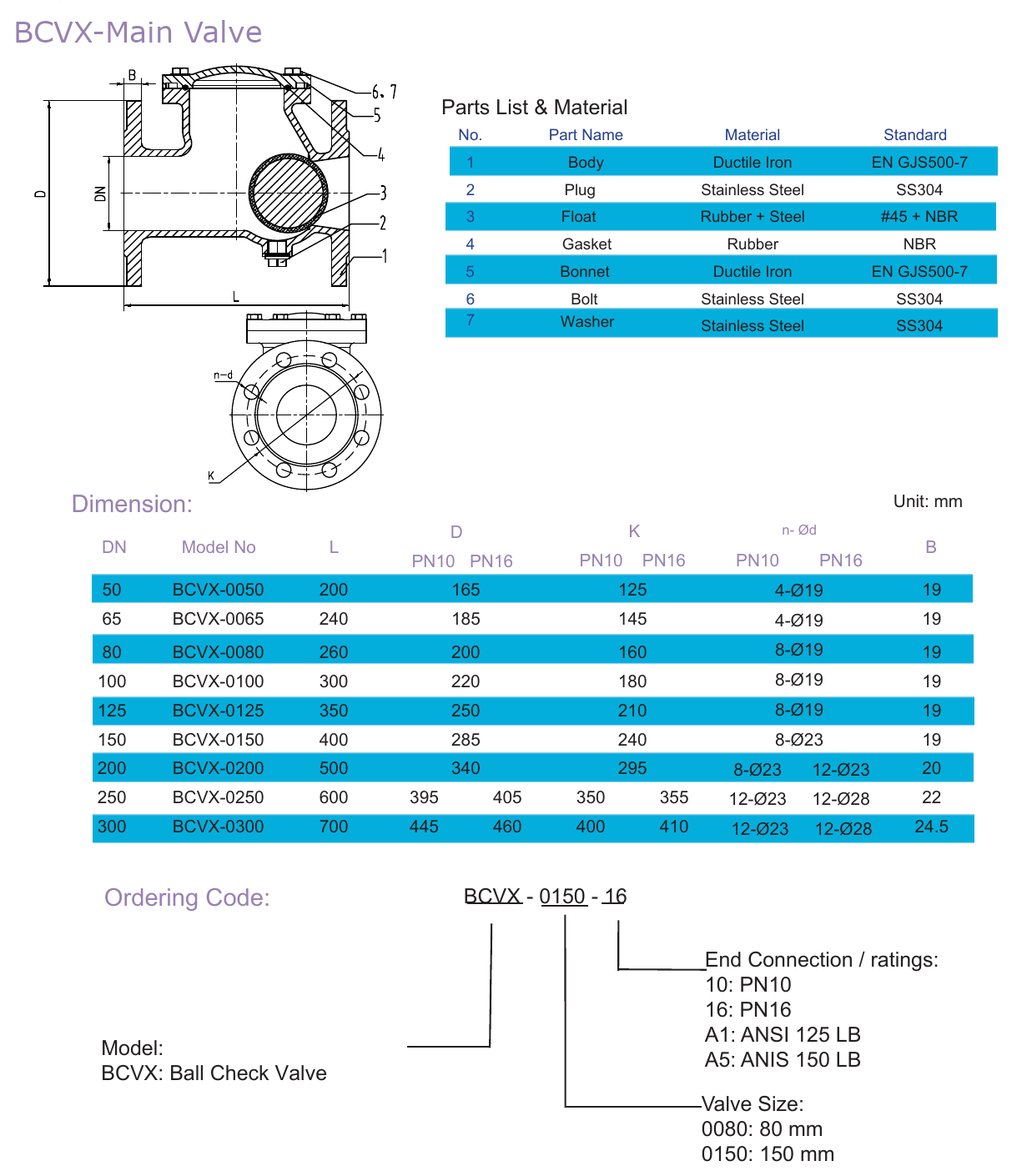

Technical drawings(1 page)
Approvals
Features
- The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on
- Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight
- The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage
- Essential for raw sewage lift stations
Description
Full-bore ball check for sewage and solids-laden flow. The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on. Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight. The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage. Essential for raw sewage lift stations.
Available pressure classes
Pressure classes this product is rated to.
Smart find
