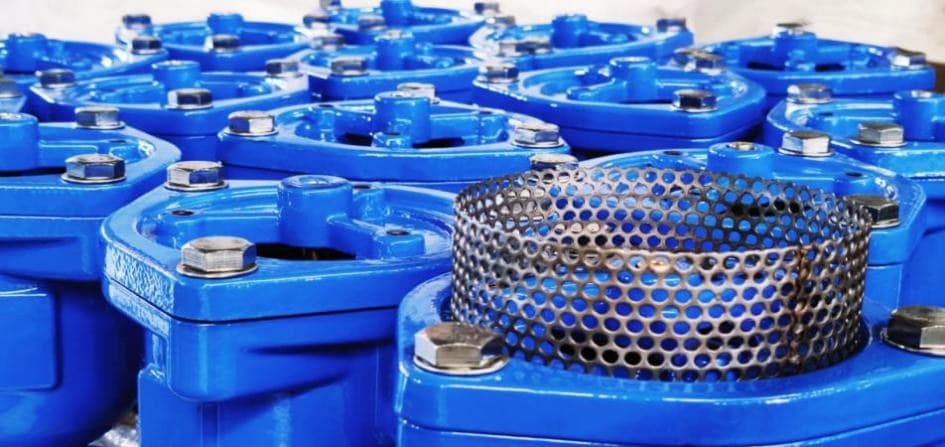

Air Valve
Air Valve triple function nonslam
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50-DN200
- Pressure Class
- PN10/PN25
- Standards
- EN-12266-1, class A, EN-1074/4, AWWA C-512, EN-1092/2, ANSI-150, BS4504
- End connection
- Flange to EN-1092/2 or ANSI-150
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

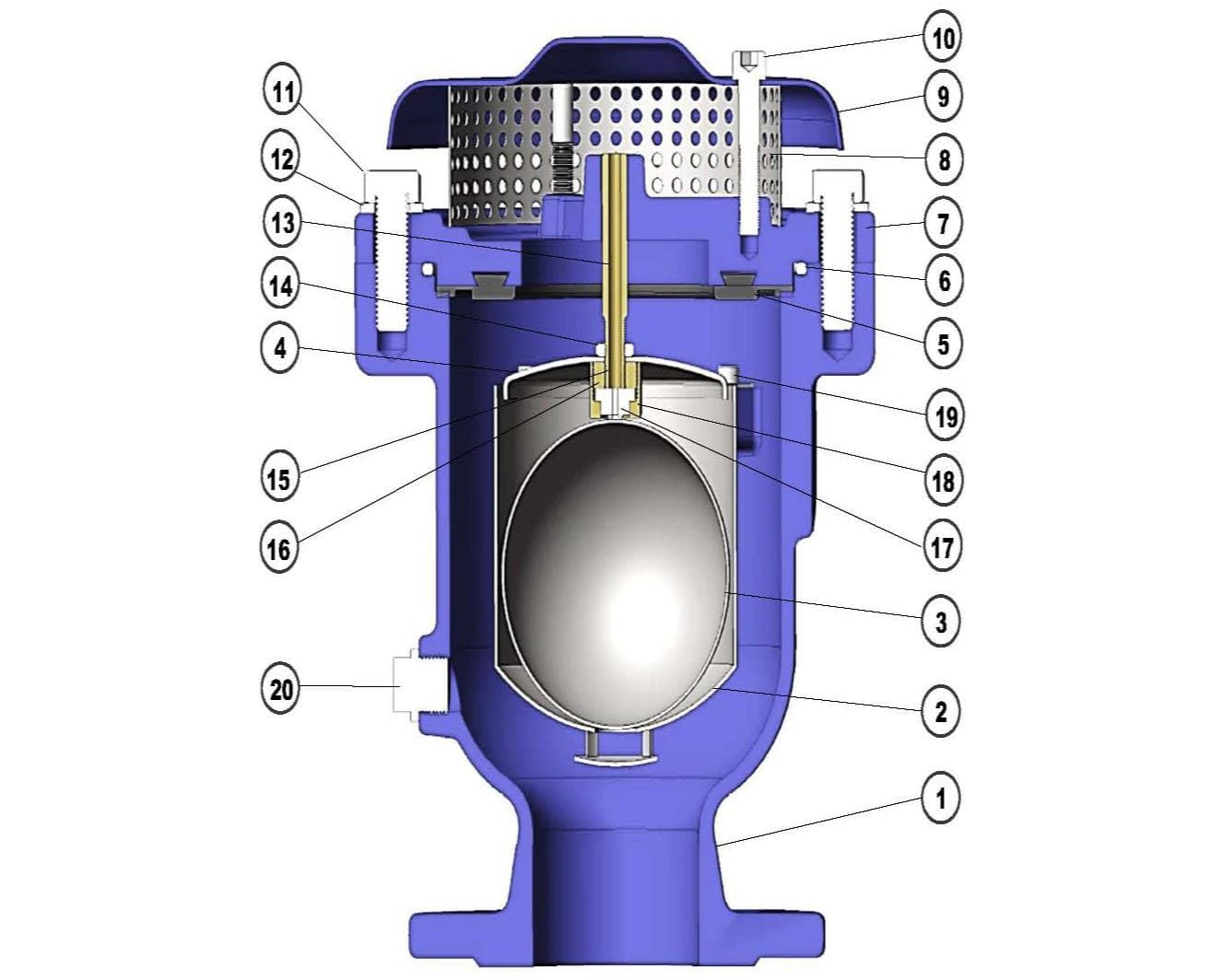

Materials
All available material options per part. Click a pill to set it in the configurator.
- bonnet
- stem
- Body
- Bolt
- Bushing
- Cap
- Disc
- Drain Valve
- Floating Ball
- Guide Shaft
- Lock Nut
- O-Ring
- Screen
- Screw
- Sealing Plug
- Sealing Ring
- Sealing Sleeve
- Seat
- Shaft Nut
- Stud
- Washer
Dimensions per size(6 sizes)
| Size | H | D_PN10_16 | K_PN10_16 | n_d_PN10_16 | B_PN10_16 | D_PN25 | K_PN25 | n_d_PN25 | B_PN25 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 305 mm | 165 mm | 125 mm | 4-φ19 mm | 19 mm | 165 mm | 125 mm | 4-φ19 mm | 19 mm | — |
| DN65 | 305 mm | 185 mm | 145 mm | 4-φ19 mm | 19 mm | 185 mm | 145 mm | 8-φ19 mm | 19 mm | — |
| DN80 | 330 mm | 200 mm | 160 mm | 8-φ19 mm | 19 mm | 200 mm | 160 mm | 8-φ19 mm | 19 mm | — |
| DN100 | 370 mm | 220 mm | 180 mm | 8-φ19 mm | 19 mm | 235 mm | 190 mm | 8-φ23 mm | 19 mm | — |
| DN150 | 450 mm | 285 mm | 240 mm | 8-φ23 mm | 19 mm | 300 mm | 220 mm | 8-φ28 mm | 20 mm | — |
| DN200 | 500 mm | 340 mm | 295 mm | 8-φ23 / 12-φ23 mm | 20 mm | 360 mm | 310 mm | 12-φ28 mm | 22 mm | — |
Operating media
water
Coatings
fusion bond epoxy coating (inside & outside)
Approvals
WRAS Approved MaterialISO 9001ISO 14001

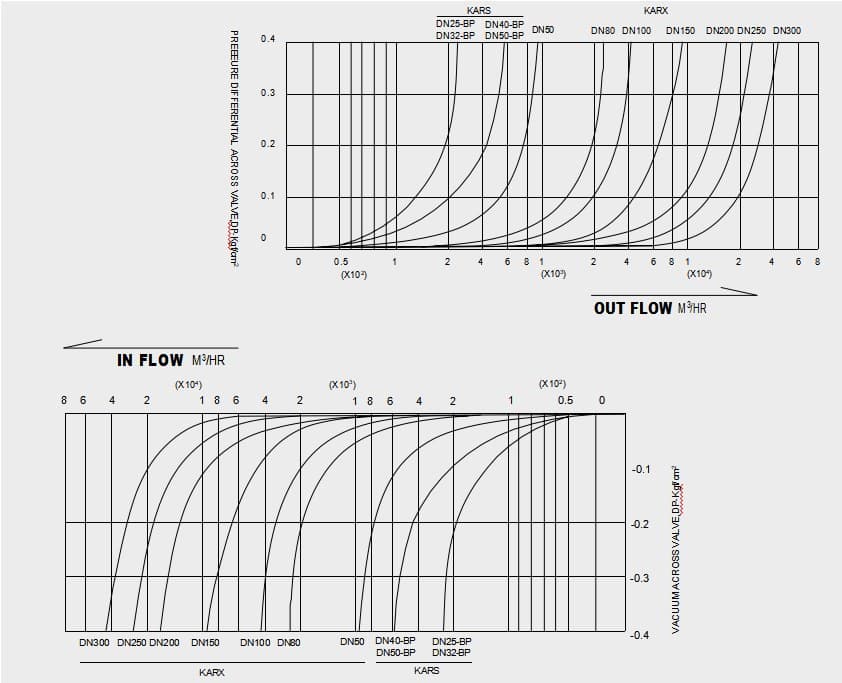

Features
- Self-operating float type
- Discharges large air flow from water pipeline during filling
- Admits large air flow into water pipeline during draining
- Purges entrapped air from pipeline under pressure
- Anti-water hammer (non-slam) system
- Anti-insect screen (SS304)
- Full bore body design
- Low pressure sealing at 0.2 bar
- Stainless steel float (SS304/SS316)
- Smooth cage outside float; float guided in specified guide rail
- Optional outlet for submerged applications
- Combination air valve (dual-function: large orifice air release/intake + small orifice automatic air release)
- Flanged end connection
- Perforated stainless steel mesh screen/guard over air outlet
- Float ball actuates small-orifice needle valve for continuous air release under pressure
- Large orifice opens for bulk air intake/exhaust during pipeline filling/draining
- Side-mounted drain/test plug
Notes
- WRAS paint and rubber upon request
- Optional upon request: stainless steel AISI 316 for bushing, floating ball, disc, screen, stud, bolt, washer, shaft nut, screw, drain valve
- Optional upon request: EPDM for sealing ring and O-rings
- Optional upon request: stainless steel AISI 304/316 for guide shaft
Description

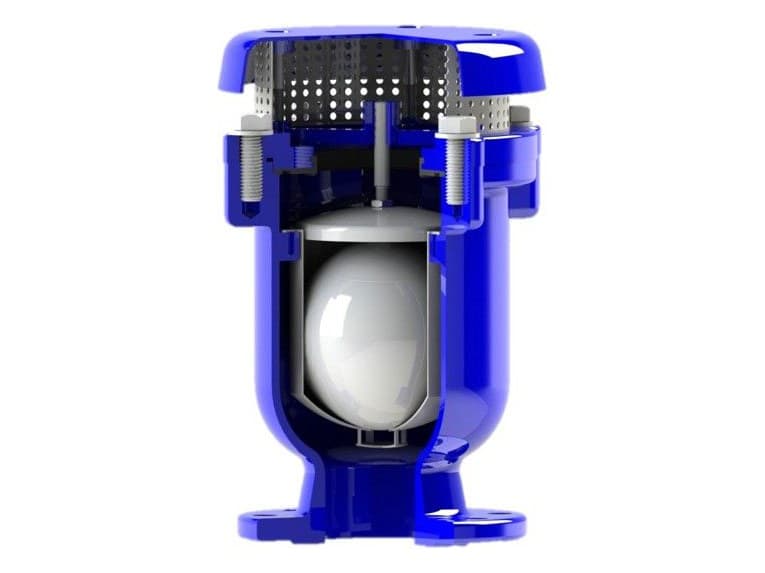

Self-operating float-type combination air release valve designed to be fitted at any high point on a pipeline. Capable of discharging large volumes of air during filling, admitting air during draining, and purging entrapped air under pressure. Incorporates an anti-shock (non-slam) mechanism to mitigate water hammer.
