Invert Bucket Steam Trap (Threaded)

Model: VTKD-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 184

Specifications

Confirmed at quote
Size Range
DN15-DN32
Pressure Class
PN16
Standards
ISO 228/1
End connection
Threaded (ISO 228/1)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15DN20DN25DN32

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
other.bucket
other.filter
other.orifice
other.valve

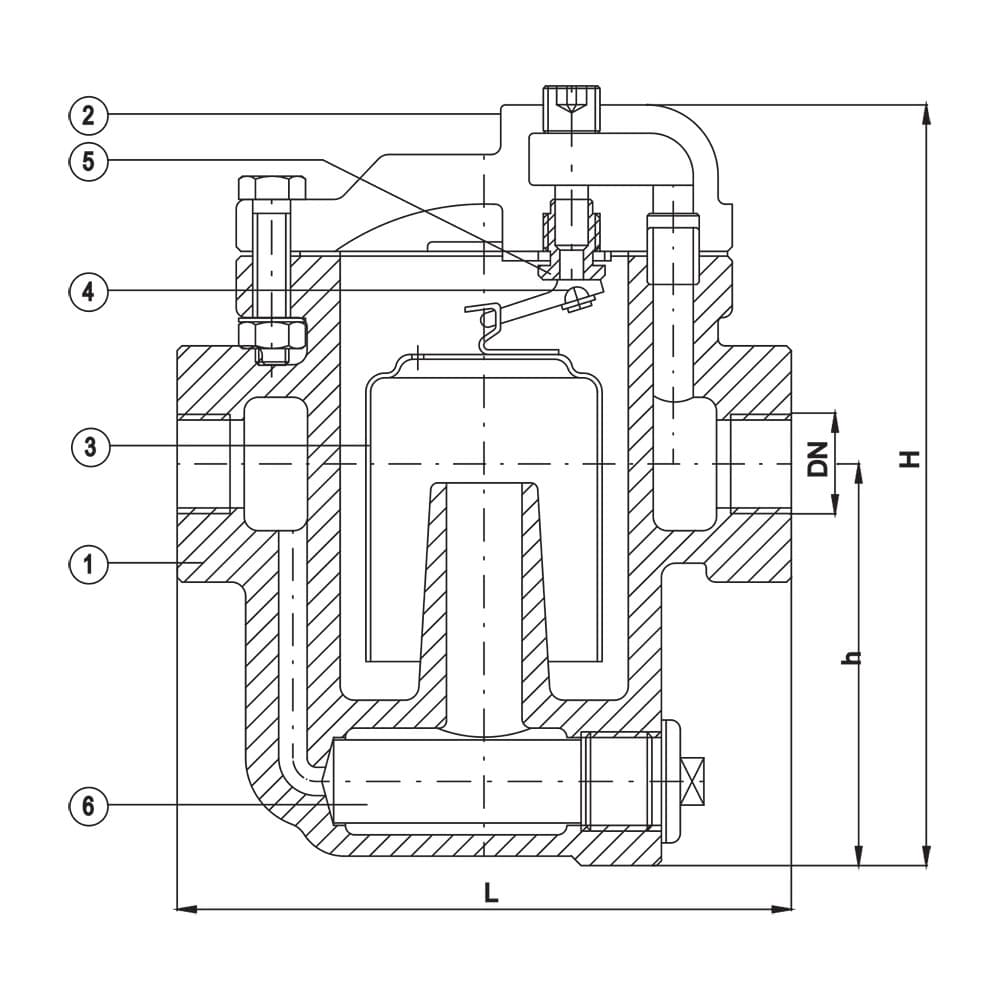

Dimensions per size(4 sizes)
SizeLhHWeight
DN15125 mm81 mm150 mm3.1 kg
DN20170 mm146 mm238 mm8.5 kg
DN25207 mm——16 kg
DN32230 mm187 mm320 mm20 kg

Description

Threaded inverted bucket steam trap rated to PN16, available in DN15 to DN32. Body and bonnet are cast iron (GG25/GGG-40), with stainless steel internal components. Dimensions conform to ISO 228/1 threaded connections.
