Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50-DN300
- Pressure Class
- PN16
- Standards
- EN 1074-5
- End connection
- EN 1092-2 flange · Table E flange
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- seat
- spring
- bolt
- bush 10
- bush 4
- caulking nut
- diaphragm
- disc holder
- fix holder
- middle body
- o ring 17
- o ring 18
- o ring 22
- o ring 3
- o ring 5
- o ring 6
- o rings 9
- screw
- seal
- seat retainer
- stem vport
- washer 13
- washer 8
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | -10°C | 10 bar |
| PN10 | 80°C | 10 bar |
| PN16 | -10°C | 16 bar |
| PN16 | 80°C | 16 bar |
| PN25 | -10°C | 25 bar |
| PN25 | 80°C | 25 bar |
Dimensions per size(8 sizes)

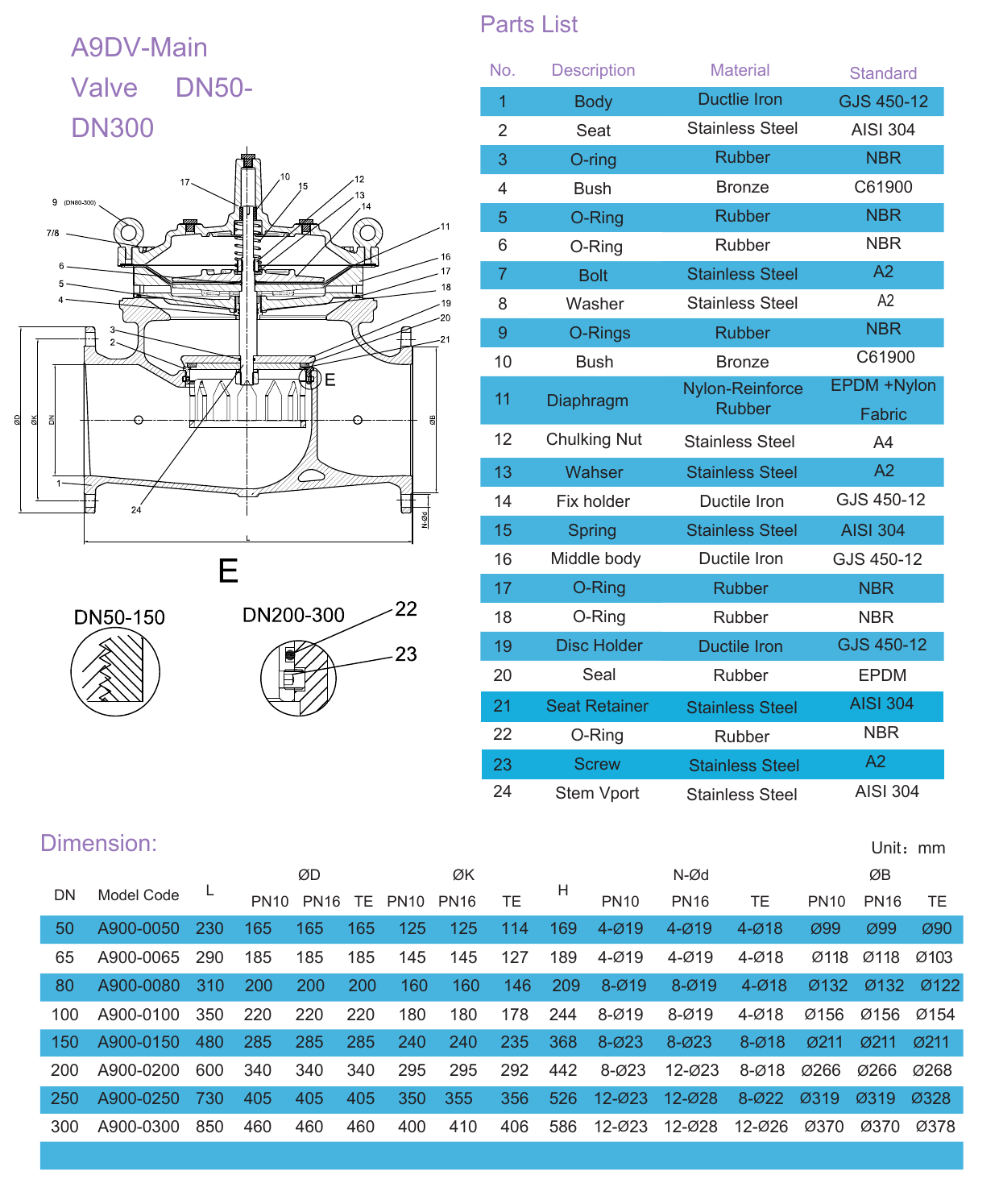

| Size | L | H | OD_PN10 | OD_PN16 | OD_TE | OK_PN10 | OK_PN16 | OK_TE | OB_PN10 | OB_PN16 | OB_TE | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 mm | 169 mm | 165 mm | 165 mm | 165 mm | 125 mm | 125 mm | 114 mm | 99 mm | 99 mm | 90 mm | — |
| DN65 | 290 mm | 189 mm | 185 mm | 185 mm | 185 mm | 145 mm | 145 mm | 127 mm | 118 mm | 118 mm | 103 mm | — |
| DN80 | 310 mm | 209 mm | 200 mm | 200 mm | 200 mm | 160 mm | 160 mm | 146 mm | 132 mm | 132 mm | 122 mm | — |
| DN100 | 350 mm | 244 mm | 220 mm | 220 mm | 220 mm | 180 mm | 180 mm | 178 mm | 156 mm | 156 mm | 154 mm | — |
| DN150 | 480 mm | 368 mm | 285 mm | 285 mm | 285 mm | 240 mm | 240 mm | 235 mm | 211 mm | 211 mm | 211 mm | — |
| DN200 | 600 mm | 442 mm | 340 mm | 340 mm | 340 mm | 295 mm | 295 mm | 292 mm | 266 mm | 266 mm | 268 mm | — |
| DN250 | 730 mm | 526 mm | 405 mm | 405 mm | 405 mm | 350 mm | 355 mm | 356 mm | 319 mm | 319 mm | 328 mm | — |
| DN300 | 850 mm | 586 mm | 460 mm | 460 mm | 460 mm | 400 mm | 410 mm | 406 mm | 370 mm | 370 mm | 378 mm | — |

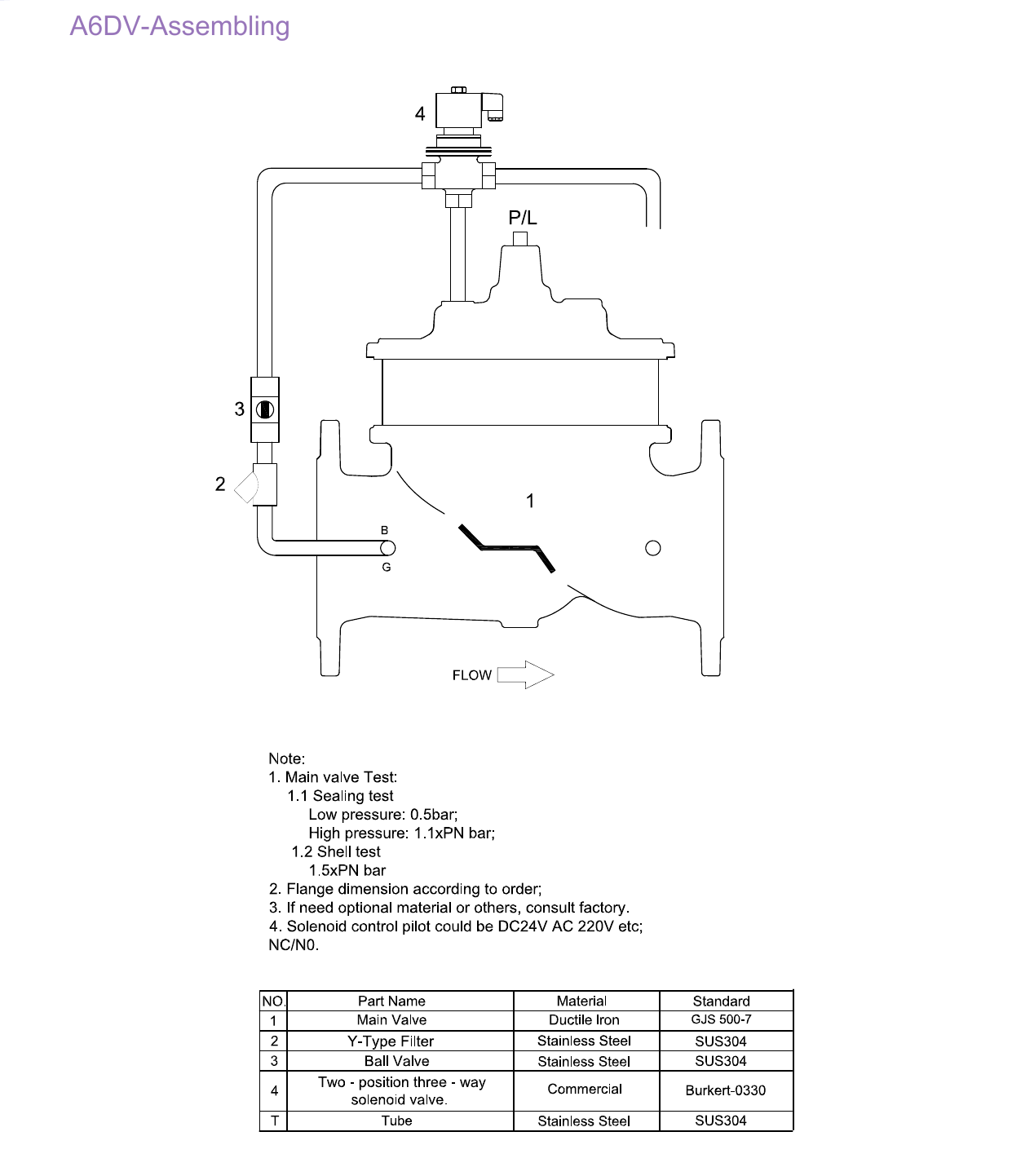

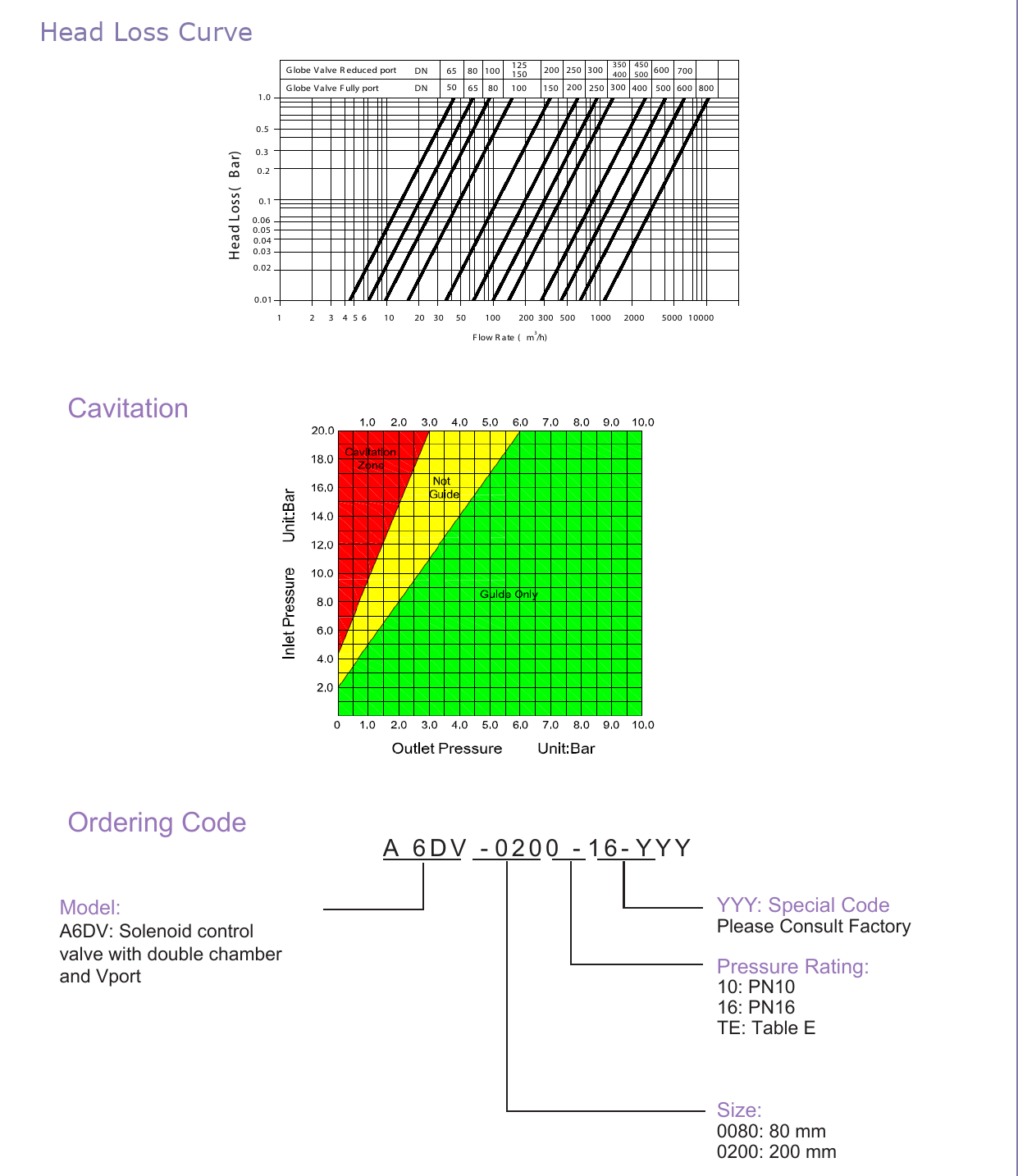

Technical drawings(3 pages)
Actuation options
Approvals
Features
- The A6DV features two independent solenoid pilots controlling the open and close functions separately
- This allows opening and closing rates to be adjusted independently via needle valves in each solenoid circuit, providing more precise control of valve stroke rate than a single solenoid design
- Used where slow opening but fast closing, or vice versa, is required to match specific system hydraulics
Description
The A6DV is a dual solenoid configuration of the A900 main valve body with independent pilots controlling the open and close functions. Independent needle valves in each solenoid circuit allow opening and closing rates to be set separately, providing precise control of stroke speed in both directions. Used where slow opening but fast closing, or vice versa, is required to match specific system hydraulics - for example, slow open on pump start combined with fast close on pump trip.
