FBGD - Double Eccentric Flange Butterfly Valve

Name: FBGD - Double Eccentric Flange Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-375
Availability: InStock

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN100-DN1800
Pressure Class: PN10 / PN16 / PN25
Standards: EN 593, API 609
End connection: EN 1092-2 flange

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800 DN900 DN1000 DN1200 DN1400

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
shaft
body seat
disc seat

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN10	-10°C	10 bar
PN10	80°C	10 bar
PN16	-10°C	16 bar
PN16	80°C	16 bar

Dimensions per size(30 sizes)

Size	B	K	L_EN558_13	L_EN558_14	H1	H2	H3	D	C	iso_5211	a1	b1	c1	gland_d1	e1	Weight
DN250 (PN10)	319 mm	350 mm	165 mm	250 mm	268 mm	280 mm	48 mm	405 mm	22 mm	F10	31 mm	8 mm	45 mm	25 mm	20 mm	—
DN250 (PN16)	—	355 mm	165 mm	250 mm	268 mm	280 mm	48 mm	405 mm	22 mm	F10	31 mm	8 mm	45 mm	25 mm	20 mm	—
DN300 (PN10)	370 mm	400 mm	178 mm	270 mm	322 mm	315 mm	50 mm	460 mm	24.5 mm	F12	36 mm	8 mm	45 mm	30 mm	18 mm	—
DN300 (PN16)	370 mm	410 mm	178 mm	270 mm	322 mm	315 mm	50 mm	460 mm	24.5 mm	F12	36 mm	8 mm	45 mm	30 mm	18 mm	—
DN350 (PN10)	429 mm	460 mm	190 mm	290 mm	350 mm	335 mm	50 mm	520 mm	26.5 mm	F12	36 mm	8 mm	45 mm	30 mm	25 mm	—
DN350 (PN16)	429 mm	470 mm	190 mm	290 mm	350 mm	335 mm	50 mm	520 mm	26.5 mm	F12	36 mm	8 mm	45 mm	30 mm	25 mm	—
DN400 (PN10)	480 mm	515 mm	216 mm	310 mm	375 mm	355 mm	55 mm	580 mm	28 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN400 (PN16)	480 mm	525 mm	216 mm	310 mm	375 mm	355 mm	55 mm	580 mm	28 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN450 (PN10)	530 mm	565 mm	222 mm	330 mm	415 mm	405 mm	55 mm	640 mm	30 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN450 (PN16)	548 mm	585 mm	222 mm	330 mm	415 mm	405 mm	55 mm	640 mm	30 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN500 (PN10)	582 mm	620 mm	229 mm	350 mm	450 mm	425 mm	55 mm	715 mm	31.5 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN500 (PN16)	609 mm	650 mm	229 mm	350 mm	450 mm	425 mm	55 mm	715 mm	31.5 mm	F14	46 mm	12 mm	50 mm	40 mm	25 mm	—
DN600 (PN10)	682 mm	725 mm	267 mm	390 mm	520 mm	525 mm	55 mm	780 mm	30 mm	F16	52 mm	14 mm	50 mm	45 mm	25 mm	—
DN600 (PN16)	720 mm	770 mm	267 mm	390 mm	520 mm	525 mm	55 mm	840 mm	36 mm	F16	52 mm	14 mm	50 mm	45 mm	25 mm	—
DN700 (PN10)	794 mm	840 mm	292 mm	430 mm	600 mm	565 mm	75 mm	895 mm	32.5 mm	F16	68 mm	18 mm	70 mm	60 mm	25 mm	—
DN700 (PN16)	794 mm	840 mm	292 mm	430 mm	600 mm	565 mm	75 mm	910 mm	39.5 mm	F16	68 mm	18 mm	70 mm	60 mm	25 mm	—
DN800 (PN10)	901 mm	950 mm	318 mm	470 mm	660 mm	640 mm	75 mm	1015 mm	35 mm	F16	68 mm	18 mm	70 mm	60 mm	25 mm	—
DN800 (PN16)	901 mm	950 mm	318 mm	470 mm	660 mm	640 mm	75 mm	1025 mm	43 mm	F25	68 mm	18 mm	70 mm	60 mm	25 mm	—
DN900 (PN10)	1001 mm	1050 mm	330 mm	510 mm	725 mm	718 mm	100 mm	1115 mm	37.5 mm	F25	90 mm	22 mm	90 mm	80 mm	30 mm	—
DN900 (PN16)	1001 mm	1050 mm	330 mm	510 mm	725 mm	718 mm	100 mm	1125 mm	46.5 mm	F25	90 mm	22 mm	90 mm	80 mm	30 mm	—
DN1000 (PN10)	1112 mm	1160 mm	410 mm	550 mm	800 mm	785 mm	110 mm	1230 mm	40 mm	F25	112 mm	28 mm	100 mm	100 mm	28 mm	—
DN1000 (PN16)	1112 mm	1170 mm	410 mm	550 mm	800 mm	785 mm	110 mm	1255 mm	50 mm	F25	112 mm	28 mm	100 mm	100 mm	28 mm	—
DN1200 (PN10)	1328 mm	1380 mm	470 mm	630 mm	950 mm	940 mm	110 mm	1455 mm	45 mm	F25	112 mm	28 mm	100 mm	100 mm	28 mm	—
DN1200 (PN16)	1328 mm	1390 mm	470 mm	630 mm	950 mm	940 mm	110 mm	1485 mm	57 mm	F25	112 mm	28 mm	100 mm	100 mm	28 mm	—
DN1400 (PN10)	1530 mm	1590 mm	530 mm	710 mm	990 mm	1070 mm	150 mm	1675 mm	46 mm	F30	134 mm	32 mm	125 mm	120 mm	30 mm	—
DN1400 (PN16)	1530 mm	1590 mm	530 mm	710 mm	990 mm	1070 mm	150 mm	1685 mm	60 mm	F30	134 mm	32 mm	125 mm	120 mm	30 mm	—
DN1600 (PN10)	1750 mm	1820 mm	600 mm	790 mm	1080 mm	1200 mm	175 mm	1915 mm	49 mm	F35	157 mm	36 mm	160 mm	140 mm	40 mm	—
DN1600 (PN16)	1750 mm	1820 mm	600 mm	790 mm	1080 mm	1200 mm	175 mm	1930 mm	65 mm	F35	157 mm	36 mm	160 mm	140 mm	40 mm	—
DN1800 (PN10)	1950 mm	2020 mm	670 mm	870 mm	1190 mm	1310 mm	180 mm	2115 mm	52 mm	F35	157 mm	36 mm	160 mm	140 mm	45 mm	—
DN1800 (PN16)	1950 mm	2020 mm	670 mm	870 mm	1190 mm	1310 mm	180 mm	2130 mm	70 mm	F35	157 mm	36 mm	160 mm	140 mm	45 mm	—

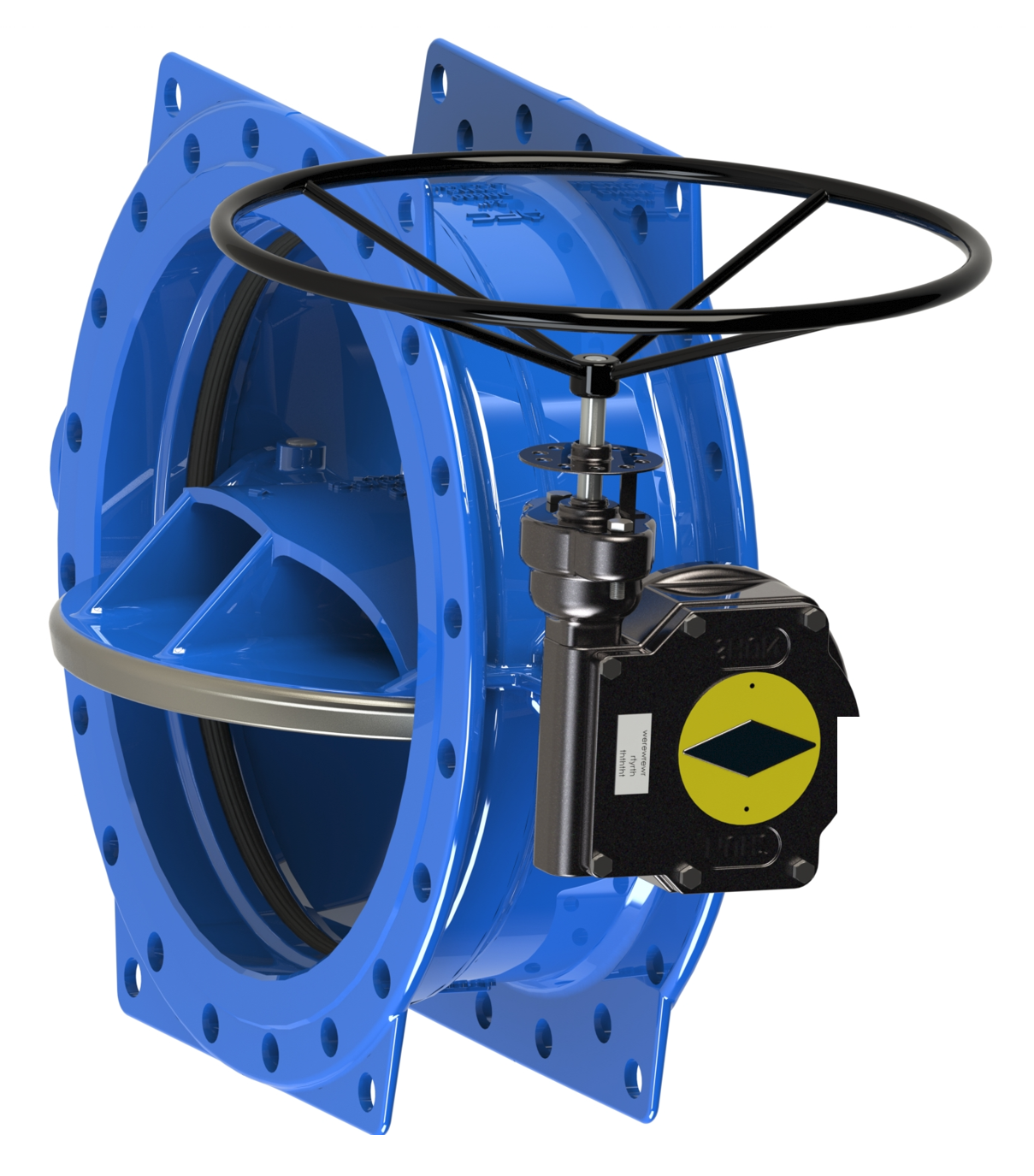

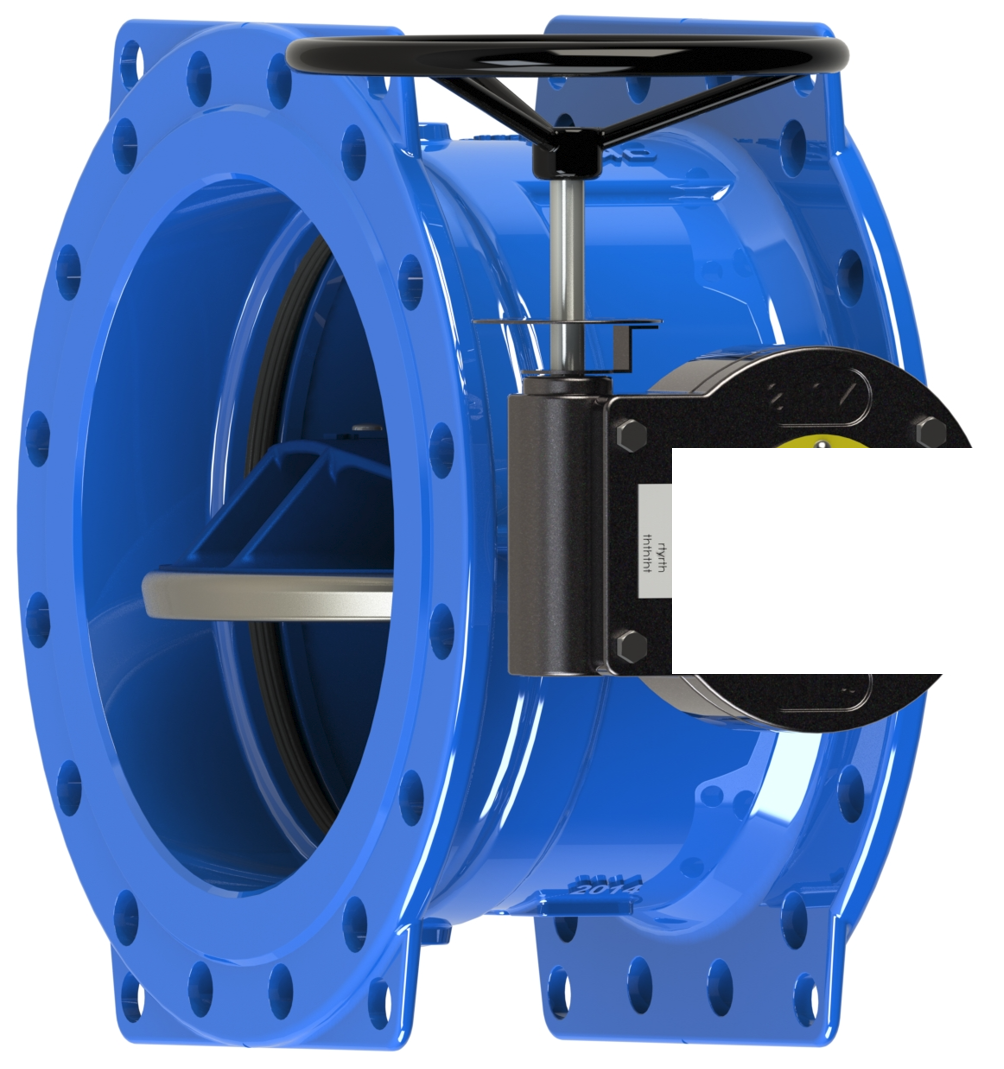

Technical drawings(2 pages)

Approvals

ISO 9001CE Mark

Features

The FBGD double-eccentric (high-performance) butterfly valve uses a two-offset disc geometry that lifts the disc clear of the seat immediately on opening, eliminating seat friction and wear
Suitable for frequent operation, throttling service and applications demanding tight shut-off to ANSI Class VI
Available in ductile iron or stainless body with a wide range of seat materials for media compatibility

Notes

DN100-500: flat disc; DN600-1200: arch shape disc
Standard operator: worm gear
Dovetail seal design captured by epoxy on the back with multiple raised rings

Description

High-performance double-eccentric for demanding duties. The FBGD double-eccentric (high-performance) butterfly valve uses a two-offset disc geometry that lifts the disc clear of the seat immediately on opening, eliminating seat friction and wear. Suitable for frequent operation, throttling service and applications demanding tight shut-off to ANSI Class VI. Available in ductile iron or stainless body with a wide range of seat materials for media compatibility.
