SS Swing Check Valve - BSP
Model: VSSCCV-16
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN100
- Pressure Class
- 16 bar
- End connection
- BSP
- Operating temperature
- -20~180 ยฐC
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- gasket
- other.cap
- other.pin

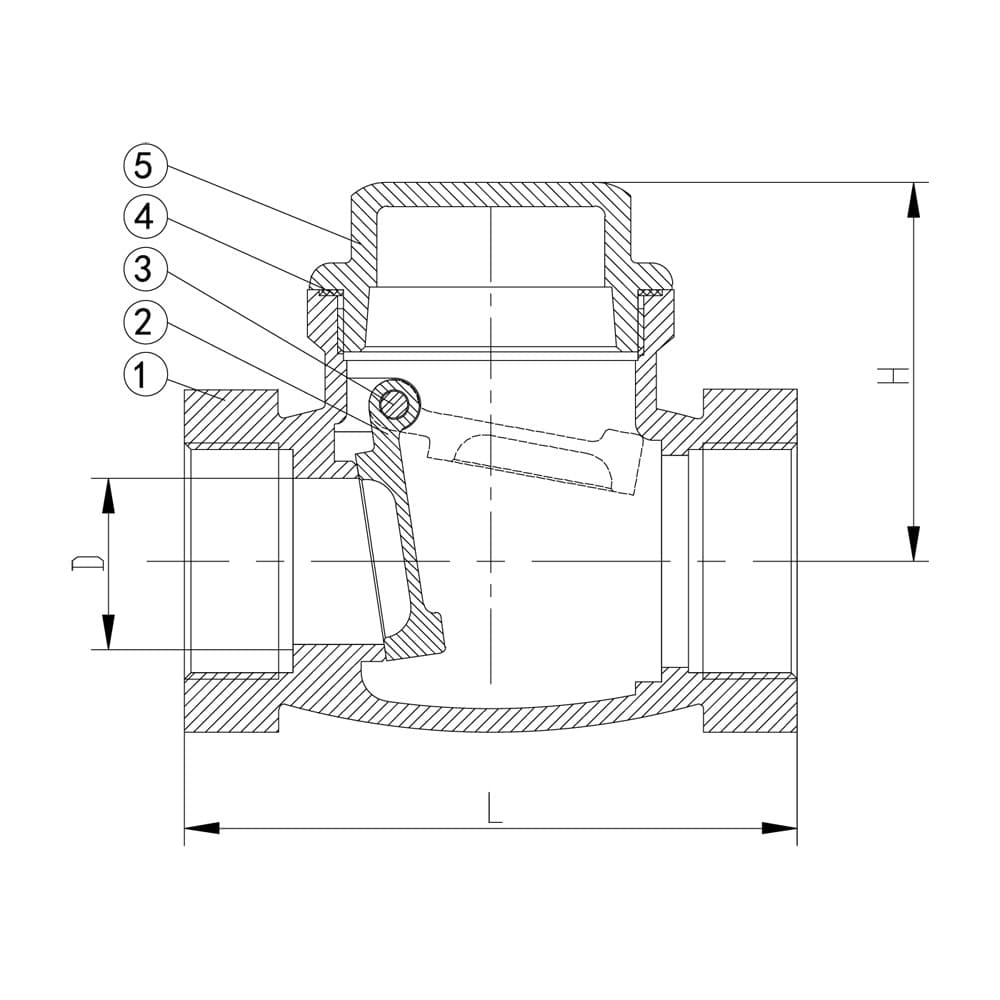

Dimensions per size(9 sizes)
| Size | L | D | H | Weight |
|---|---|---|---|---|
| DN15 | 62 mm | 15.5 mm | 43 mm | โ |
| DN20 | 75 mm | 20 mm | 45 mm | โ |
| DN25 | 84 mm | 23.5 mm | 49 mm | โ |
| DN32 | 100 mm | 30 mm | 56 mm | โ |
| DN40 | 115 mm | 37 mm | 64 mm | โ |
| DN50 | 134 mm | 46 mm | 71 mm | โ |
| DN65 | 164 mm | 64 mm | 91 mm | โ |
| DN80 | 190 mm | 74.5 mm | 103 mm | โ |
| DN100 | 237 mm | 96 mm | 138 mm | โ |
Operating media
Description
A stainless steel swing check valve with BSP threaded end connections, rated at 16 bar. Available in sizes DN15 to DN50, it is designed for use with water, oil, and gas at temperatures from -20ยฐC to 180ยฐC. The body, disc, and cap are manufactured from CF8 or CF8M stainless steel.
