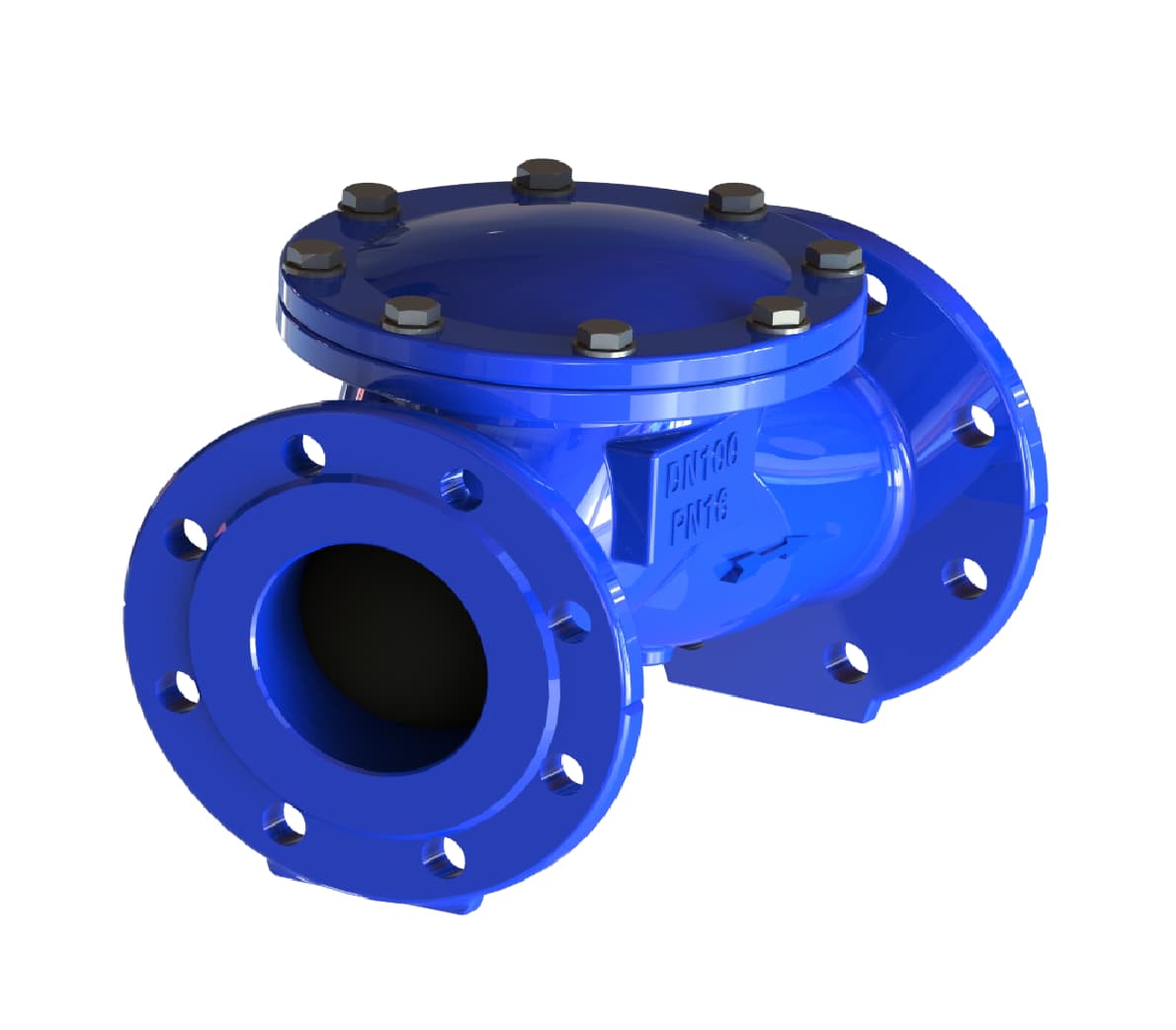

BCVX โ Ball Check Valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50โDN400
- Pressure Class
- PN10 / PN16
- Standards
- EN 12334
- End connection
- Flanged to EN 1092-2
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
- Body
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 | -10ยฐC | 16 bar |
| PN16 | 80ยฐC | 16 bar |
Dimensions per size(9 sizes)
| Size | L | D_PN10 | K_PN10 | B | D_PN16 | K_PN16 | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 200 mm | 165 mm | 125 mm | 19 mm | โ | โ | โ |
| DN65 | 240 mm | 185 mm | 145 mm | 19 mm | โ | โ | โ |
| DN80 | 260 mm | 200 mm | 160 mm | 19 mm | โ | โ | โ |
| DN100 | 300 mm | 220 mm | 180 mm | 19 mm | โ | โ | โ |
| DN125 | 350 mm | 250 mm | 210 mm | 19 mm | โ | โ | โ |
| DN150 | 400 mm | 285 mm | 240 mm | 19 mm | โ | โ | โ |
| DN200 | 500 mm | 340 mm | 295 mm | 20 mm | โ | โ | โ |
| DN250 | 600 mm | 395 mm | 350 mm | 22 mm | 405 mm | 355 mm | โ |
| DN300 | 700 mm | 445 mm | 400 mm | 24.5 mm | 460 mm | 410 mm | โ |
Approvals
Features
- The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on
- Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight
- The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage
- Essential for raw sewage lift stations
Description
Full-bore ball check for sewage and solids-laden flow. The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on. Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight. The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage. Essential for raw sewage lift stations.
