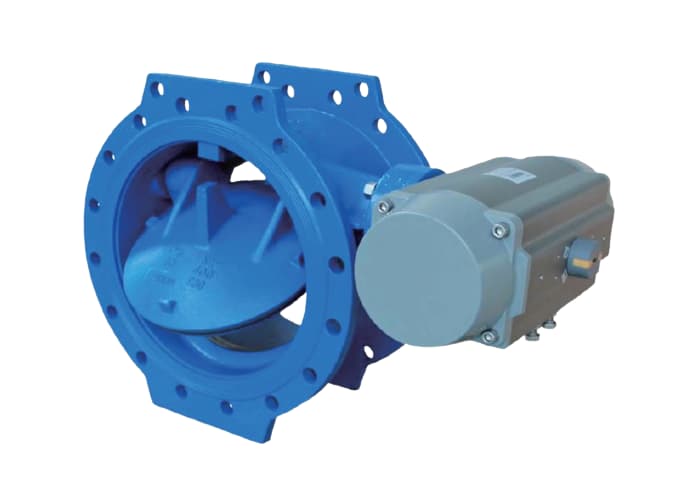

SDCV โ Slanted Disc Check Valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50โDN1200
- Pressure Class
- PN10 / PN16
- Standards
- EN 12334
- End connection
- Flanged to EN 1092-2
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
- Body
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | -10ยฐC | 10 bar |
| PN10 | 80ยฐC | 10 bar |
| PN16 | -10ยฐC | 16 bar |
| PN16 | 80ยฐC | 16 bar |

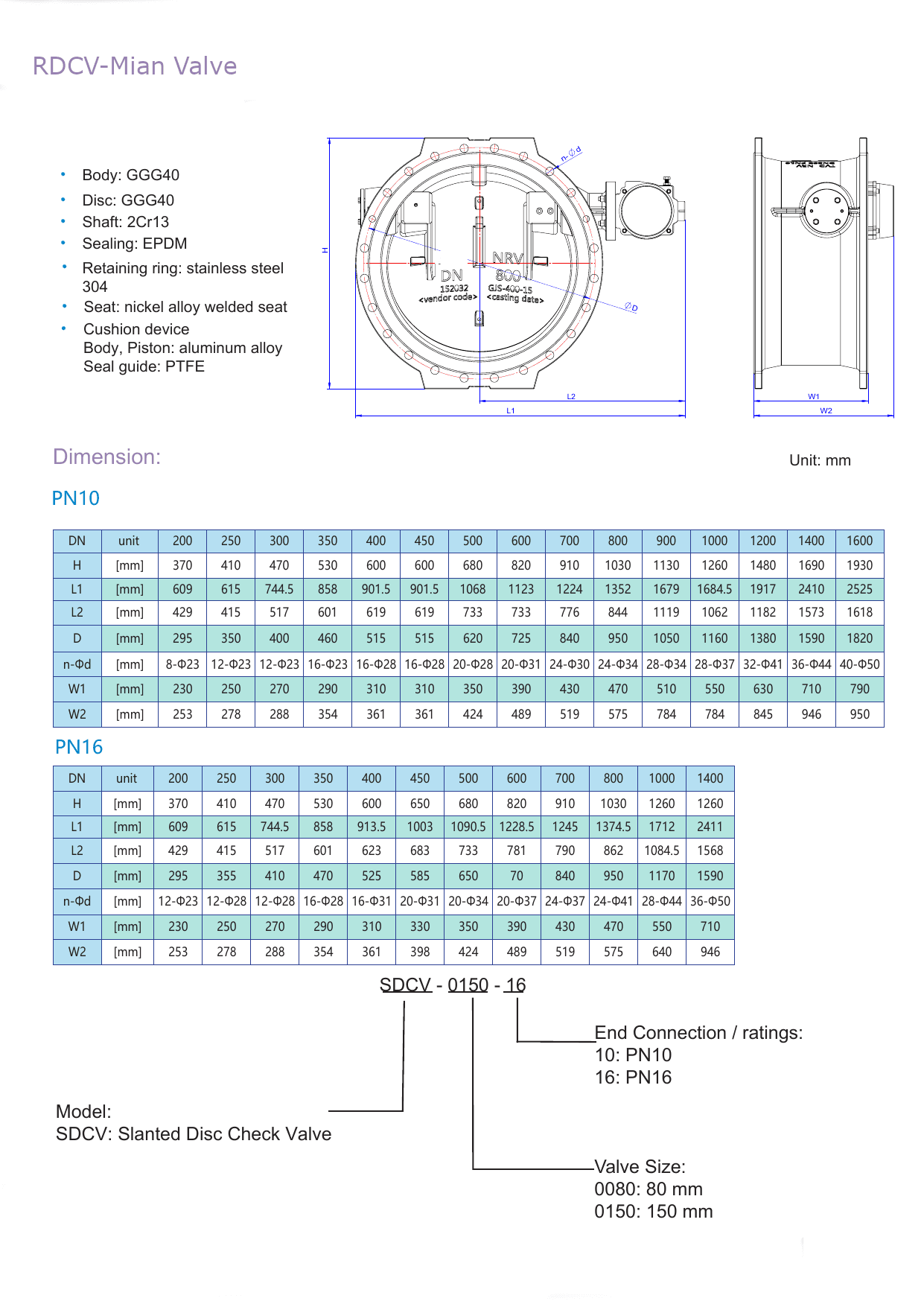

Dimensions per size(15 sizes)
| Size | H | L1 | L2 | D | W1 | W2 | Weight |
|---|---|---|---|---|---|---|---|
| DN200 | 370 mm | 609 mm | 429 mm | 295 mm | 230 mm | 253 mm | โ |
| DN250 | 410 mm | 615 mm | 415 mm | 350 mm | 250 mm | 278 mm | โ |
| DN300 | 470 mm | 744.5 mm | 517 mm | 400 mm | 270 mm | 288 mm | โ |
| DN350 | 530 mm | 858 mm | 601 mm | 460 mm | 290 mm | 354 mm | โ |
| DN400 | 600 mm | 901.5 mm | 619 mm | 515 mm | 310 mm | 361 mm | โ |
| DN450 | 600 mm | 901.5 mm | 619 mm | 515 mm | 310 mm | 361 mm | โ |
| DN500 | 680 mm | 1068 mm | 733 mm | 620 mm | 350 mm | 424 mm | โ |
| DN600 | 820 mm | 1123 mm | 733 mm | 725 mm | 390 mm | 489 mm | โ |
| DN700 | 910 mm | 1224 mm | 776 mm | 840 mm | 430 mm | 519 mm | โ |
| DN800 | 1030 mm | 1352 mm | 844 mm | 950 mm | 470 mm | 575 mm | โ |
| DN900 | 1130 mm | 1679 mm | 1119 mm | 1050 mm | 510 mm | 784 mm | โ |
| DN1000 | 1260 mm | 1684.5 mm | 1062 mm | 1160 mm | 550 mm | 784 mm | โ |
| DN1200 | 1480 mm | 1917 mm | 1182 mm | 1380 mm | 630 mm | 845 mm | โ |
| DN1400 | 1690 mm | 2410 mm | 1573 mm | 1590 mm | 710 mm | 946 mm | โ |
| DN1600 | 1930 mm | 2525 mm | 1618 mm | 1820 mm | 790 mm | 950 mm | โ |
Approvals
Features
- The SDCV features a slanted disc that closes at a low angle to the flow direction, significantly reducing the closing velocity and disc slam compared to conventional swing check valves
- The low headloss design minimises pumping energy
- The slanted geometry ensures self-closing under gravity with minimal reverse flow
- Suitable for pump discharge on clean water and treated effluent
Description
Low headloss slanted disc for pump discharge. The SDCV features a slanted disc that closes at a low angle to the flow direction, significantly reducing the closing velocity and disc slam compared to conventional swing check valves. The low headloss design minimises pumping energy. The slanted geometry ensures self-closing under gravity with minimal reverse flow. Suitable for pump discharge on clean water and treated effluent.
