Ball Check Valve
Model: VTCV-10
Debug Β· supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN500
- Pressure Class
- PN10
- Standards
- EN 558 Serie 48, DIN 3202 F6, EN 12266, DIN 2501/TS 810
- End connection
- Flange (DIN 2501/TS 810)
- Face-to-face
- EN 558 Serie 48, DIN 3202 F6
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- ball
- gasket
- other.bolt

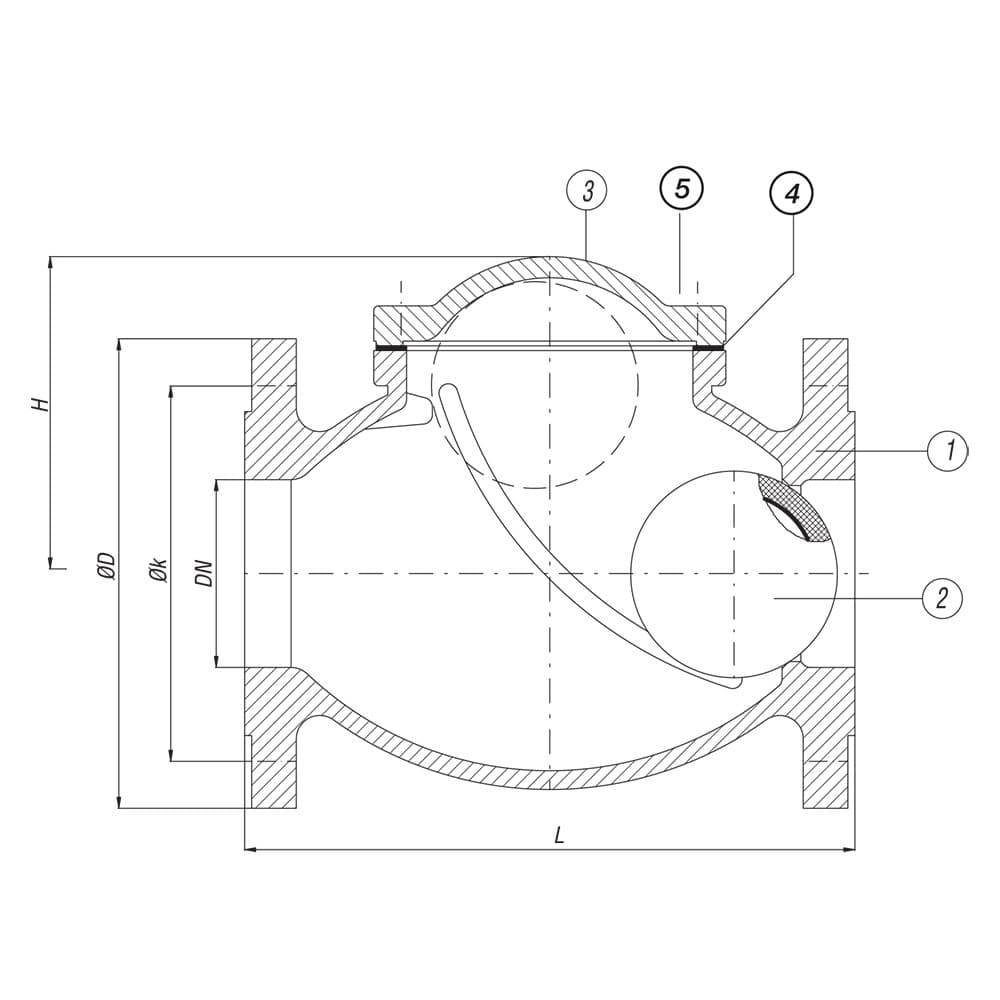

Dimensions per size(13 sizes)
| Size | L | H | D | k | Weight |
|---|---|---|---|---|---|
| DN40 | 180 mm | 100 mm | 150 mm | 110 mm | 8 kg |
| DN50 | 200 mm | 110 mm | 165 mm | 125 mm | 9 kg |
| DN65 | 240 mm | 130 mm | 185 mm | 145 mm | 12 kg |
| DN80 | 260 mm | 145 mm | 200 mm | 160 mm | 14 kg |
| DN100 | 300 mm | 170 mm | 220 mm | 180 mm | 22 kg |
| DN125 | 350 mm | 195 mm | 250 mm | 210 mm | 30 kg |
| DN150 | 400 mm | 205 mm | 285 mm | 240 mm | 49 kg |
| DN200 | 500 mm | 260 mm | 340 mm | 295 mm | 98 kg |
| DN250 | 600 mm | 390 mm | 395 mm | 350 mm | 125 kg |
| DN300 | 700 mm | 500 mm | 445 mm | 400 mm | 240 kg |
| DN350 | 800 mm | 500 mm | 505 mm | 460 mm | 390 kg |
| DN400 | 900 mm | 600 mm | 565 mm | 515 mm | 470 kg |
| DN500 | 1100 mm | 800 mm | 670 mm | 620 mm | 800 kg |
Description
A flanged ball check valve rated at PN10, available in nominal diameters DN40 to DN500. The body and bonnet are cast iron or ductile iron, with an NBR-coated or rubber-lined ball acting as the closure element. Face-to-face dimensions conform to EN 558 Series 48 and DIN 3202 F6.
