Aluminum Angle Globe Valve PN16
Model: VGSA-16
Debug Β· supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN100
- Pressure Class
- PN16
- Standards
- VisVana Short Pattern, EN 12266, EN 1092
- End connection
- Flange Ends (EN 1092)
- Face-to-face
- VisVana
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- gasket
- o ring
- handwheel
- other.bolt
- other.disc nut

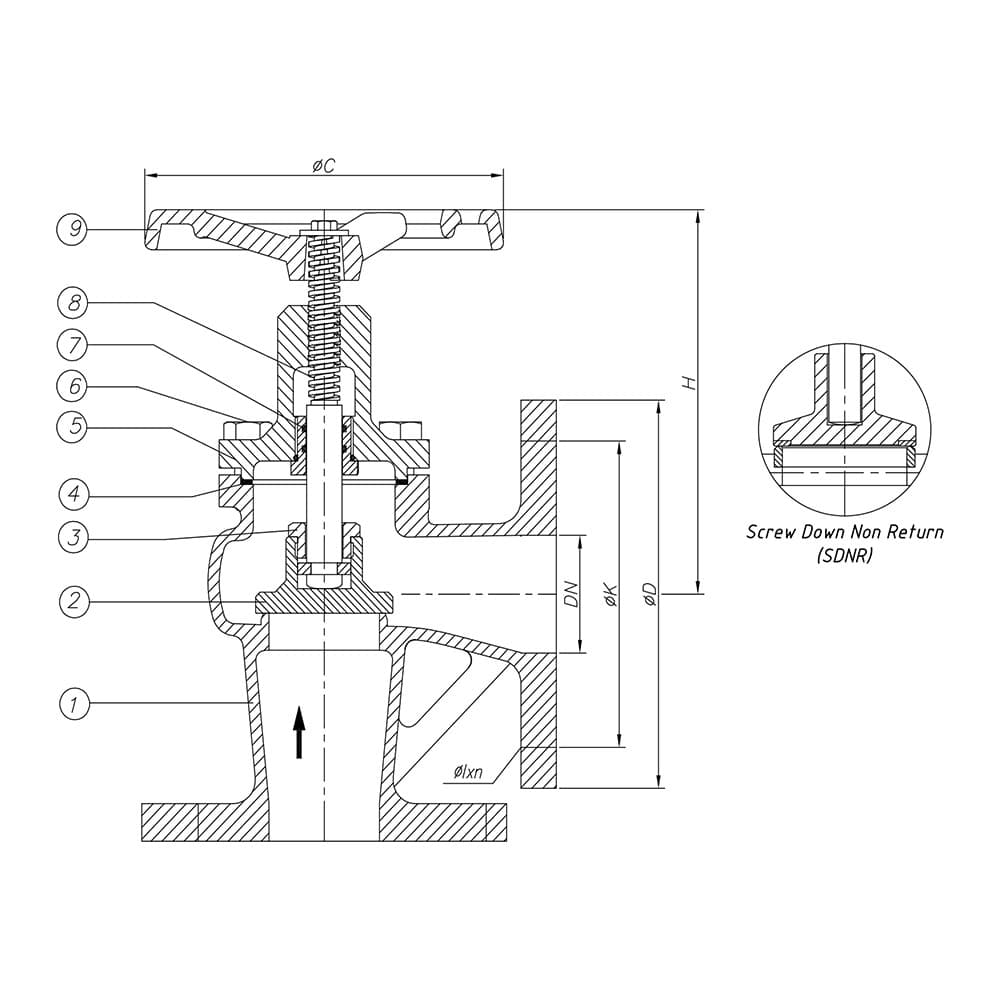

Dimensions per size(9 sizes)
| Size | L | H | C | D | K | Weight |
|---|---|---|---|---|---|---|
| DN15 | 65 mm | 130 mm | 120 mm | 95 mm | 65 mm | β |
| DN20 | 65 mm | 135 mm | 120 mm | 105 mm | 75 mm | β |
| DN25 | 70 mm | 150 mm | 140 mm | 115 mm | 85 mm | β |
| DN32 | 90 mm | 170 mm | 140 mm | 140 mm | 100 mm | β |
| DN40 | 90 mm | 170 mm | 140 mm | 150 mm | 110 mm | β |
| DN50 | 105 mm | 185 mm | 160 mm | 165 mm | 125 mm | β |
| DN65 | 115 mm | 240 mm | 180 mm | 185 mm | 145 mm | β |
| DN80 | 125 mm | 260 mm | 200 mm | 200 mm | 160 mm | β |
| DN100 | 145 mm | 280 mm | 225 mm | 220 mm | 180 mm | β |
Actuation options
Features
- Angle body configuration allowing 90Β° flow direction change
- Short pattern design
- Optional Screw Down Non Return (SDNR) function
- Aluminium alloy body and bonnet construction
- Stainless steel stem
Description
Angle pattern globe valve constructed primarily from aluminium alloy, rated to PN16. Available in DN15 to DN100 with flanged ends to EN 1092. An optional Screw Down Non Return (SDNR) configuration is available.
