Gate Valve
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN1000
- Pressure Class
- PN10/PN40
- Standards
- EN 1171, DIN 3352, EN 558 Serie 15, DIN3202 F5, EN 12266, DIN EN 1092-2/B
- End connection
- Flanged (EN 1092-2)
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- wedge
- seat
- stem
- packing
- gasket
- o ring
- handwheel
- other.bolt
- other.packing nut
- other.stem nut
- other.wedge seat
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 (Cast Iron GG25, DN40-DN600) | 20°C | 16 bar |
| PN10 (Cast Iron GG25, DN700-DN1000) | 20°C | 10 bar |
| PN25 (Ductile Iron GGG40, DN40-DN600) | 20°C | 25 bar |
| PN16 (Ductile Iron GGG40, DN700-DN1000) | 20°C | 16 bar |

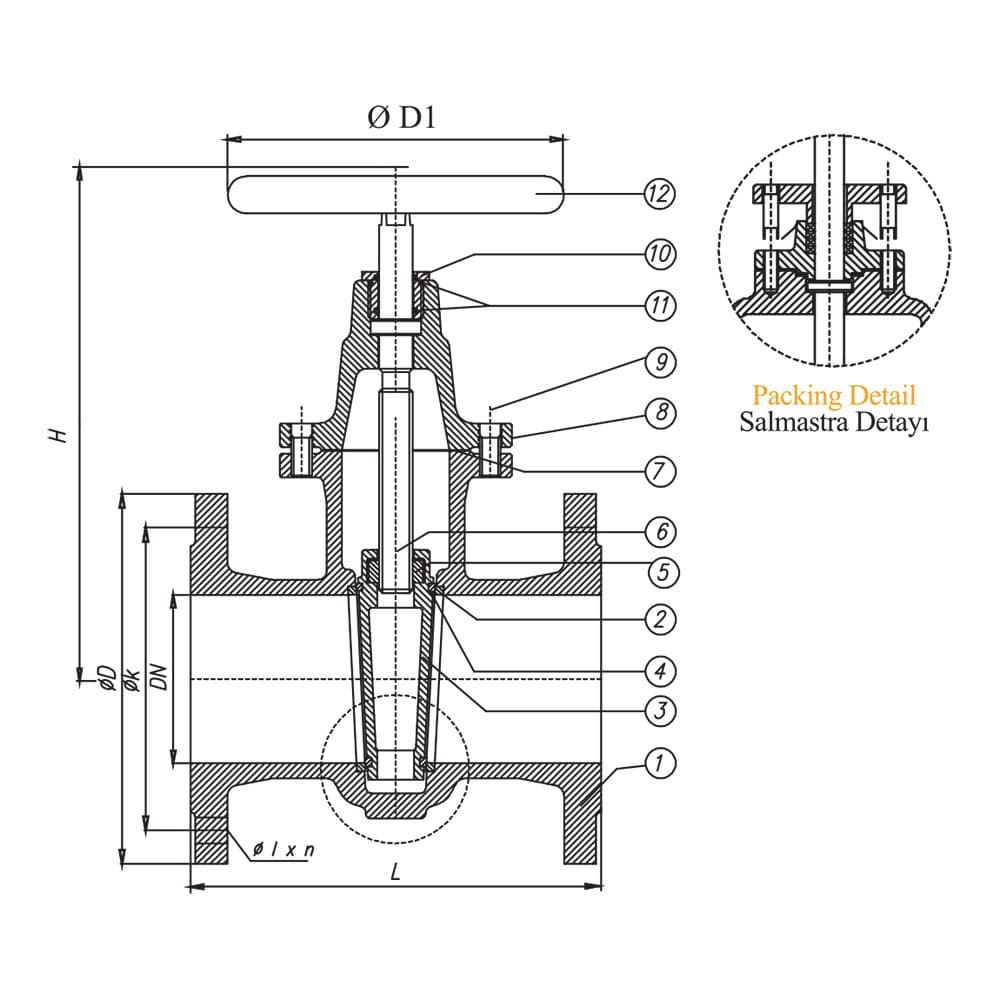

Dimensions per size(18 sizes)
| Size | L | H | Weight |
|---|---|---|---|
| DN40 | 240 mm | 215 mm | 13 kg |
| DN50 | 250 mm | 220 mm | 15 kg |
| DN65 | 270 mm | 265 mm | 22 kg |
| DN80 | 280 mm | 300 mm | 27 kg |
| DN100 | 300 mm | 320 mm | 36 kg |
| DN125 | 325 mm | 370 mm | 47 kg |
| DN150 | 350 mm | 415 mm | 59 kg |
| DN200 | 400 mm | 590 mm | 141 kg |
| DN250 | 450 mm | 675 mm | 195 kg |
| DN300 | 500 mm | 750 mm | 285 kg |
| DN350 | 550 mm | 870 mm | 371 kg |
| DN400 | 600 mm | 950 mm | 460 kg |
| DN500 | 700 mm | 1200 mm | 751 kg |
| DN600 | 800 mm | 1330 mm | 1143 kg |
| DN700 | 900 mm | 1530 mm | 1330 kg |
| DN800 | 1000 mm | 1690 mm | 2300 kg |
| DN900 | 1100 mm | 1925 mm | 3400 kg |
| DN1000 | 1200 mm | 2160 mm | 4300 kg |
Actuation options
Description
Flanged gate valve designed to EN 1171 and DIN 3352, available in cast iron and ductile iron body materials. Covers nominal diameters DN40 to DN1000 with pressure ratings up to PN40. Suitable for temperatures from -20°C to +120°C with DIN EN 1092-2/B flange ends.
