Float Valve Switch
Debug Β· supplier source (internal only)
Materials
- Body
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| β | 80Β°C | 10 bar |

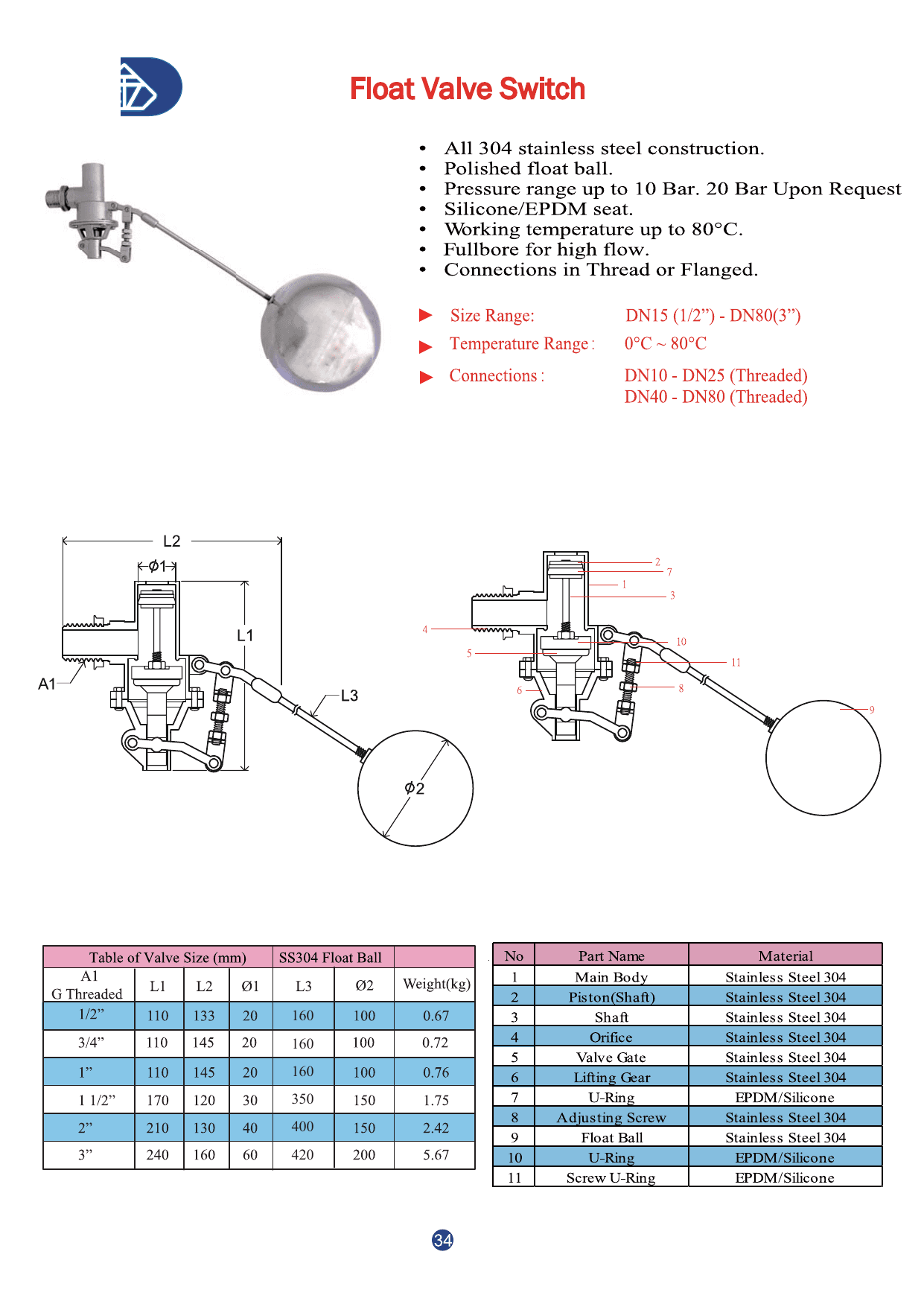

Dimensions per size(6 sizes)
| Size | L1 | L2 | Γ1 | L3 | Γ2 | Weight |
|---|---|---|---|---|---|---|
| 1/2" | 110 mm | 133 mm | 20 mm | 160 mm | 100 mm | 0.67 kg |
| 3/4" | 110 mm | 145 mm | 20 mm | 160 mm | 100 mm | 0.72 kg |
| 1" | 110 mm | 145 mm | 20 mm | 160 mm | 100 mm | 0.76 kg |
| 1 1/2" | 170 mm | 120 mm | 30 mm | 350 mm | 150 mm | 1.75 kg |
| 2" | 210 mm | 130 mm | 40 mm | 400 mm | 150 mm | 2.42 kg |
| 3" | 240 mm | 160 mm | 60 mm | 420 mm | 200 mm | 5.67 kg |
Approvals
Features
- The float valve switch provides an electrical level signal from a reservoir or tank for high-level alarm, low-level alarm or SCADA telemetry
- A stainless steel float on a pivot arm actuates a micro-switch at the set water level
- The switch contact can drive a relay, alarm panel or telemetry input directly
- No electronic components in the wetted zone
Description
Electrical float switch for level alarm and SCADA signalling. The float valve switch provides an electrical level signal from a reservoir or tank for high-level alarm, low-level alarm or SCADA telemetry. A stainless steel float on a pivot arm actuates a micro-switch at the set water level. The switch contact can drive a relay, alarm panel or telemetry input directly. No electronic components in the wetted zone.
