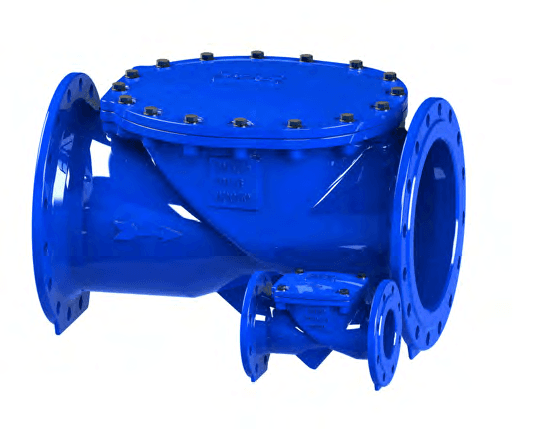

RDCV – Rubber Disc Check Valve

Name: RDCV – Rubber Disc Check Valve
Brand: Euro Flow Control
SKU: EFC-382
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: afc · ref: 382

Specifications

Confirmed at quote

Size Range: DN50–DN600
Pressure Class: PN10 / PN16
Standards: EN 12334
End connection: Flanged to EN 1092-2

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN16	-10°C	16 bar
PN16	80°C	16 bar

Dimensions per size(14 sizes)

Size	L	D1_PN10	D2_PN10	C	D1_PN16	D2_PN16	Weight
DN50	203 mm	165 mm	125 mm	19 mm	—	—	—
DN65	216 mm	185 mm	145 mm	19 mm	—	—	—
DN80	241 mm	200 mm	160 mm	19 mm	—	—	—
DN100	292 mm	220 mm	180 mm	19 mm	—	—	—
DN125	330 mm	250 mm	210 mm	19 mm	—	—	—
DN150	356 mm	285 mm	240 mm	19 mm	—	—	—
DN200	495 mm	340 mm	295 mm	20 mm	—	—	—
DN250	622 mm	395 mm	350 mm	22 mm	405 mm	355 mm	—
DN300	698 mm	445 mm	400 mm	24.5 mm	460 mm	410 mm	—
DN350	787 mm	505 mm	460 mm	24.5 mm	520 mm	470 mm	—
DN400	914 mm	565 mm	515 mm	24.5 mm	580 mm	525 mm	—
DN450	914 mm	615 mm	565 mm	25.5 mm	640 mm	585 mm	—
DN500	978 mm	670 mm	620 mm	26.5 mm	715 mm	650 mm	—
DN600	1067 mm	780 mm	725 mm	30 mm	840 mm	770 mm	—

Approvals

WRASISO 9001

Features

The RDCV uses a flexible rubber disc that deflects to allow forward flow and returns to seat on flow reversal
The all-rubber disc provides tight shut-off without a metal disc that could damage seat surfaces
Suitable for clean water distribution, irrigation networks and low-pressure applications
Simple construction with no external bearings, pivots or springs

Description

Resilient rubber disc for waterworks and irrigation. The RDCV uses a flexible rubber disc that deflects to allow forward flow and returns to seat on flow reversal. The all-rubber disc provides tight shut-off without a metal disc that could damage seat surfaces. Suitable for clean water distribution, irrigation networks and low-pressure applications. Simple construction with no external bearings, pivots or springs.
