PTFE Full Coated Lug Butterfly Valve

Name: PTFE Full Coated Lug Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-297
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: watts · ref: 297

Specifications

Confirmed at quote

Size Range: DN50-DN600
Pressure Class: PN6/PN10
Standards: ANSI B16.10, BS5152
End connection: Lug type

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600

Available pressure classes

Pressure classes this product is rated to.

PN6 PN10

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
seat
stem
lower stem
nut
upper stem

Dimensions per size(14 sizes)

Size	L	D1	N-M	Weight
DN50	43 mm	125 mm	4-M16 null	—
DN65	46 mm	145 mm	4-M16 null	—
DN80	46 mm	160 mm	8-M16 null	—
DN100	52 mm	180 mm	8-M16 null	—
DN125	56 mm	210 mm	8-M16 null	—
DN150	56 mm	240 mm	8-M20 null	—
DN200	60 mm	295 mm	8-M20 null	—
DN250	68 mm	350 mm	12-M20 null	—
DN300	78 mm	400 mm	12-M20 null	—
DN350	78 mm	460 mm	16-M20 null	—
DN400	102 mm	515 mm	16-M24 null	—
DN450	114 mm	565 mm	20-M24 null	—
DN500	127 mm	620 mm	20-M24 null	—
DN600	154 mm	725 mm	20-M27 null	—

Operating media

chemicalsacidsalkaliswastewater

Actuation options

manual levermanual gearboxpneumatic actuatorelectric actuator

Coatings

PTFE full coating

Approvals

LR (Lloyd's Register)ECM (Ente Certificazione Macchine)ISOEACCEBureau VeritasACS (Attestation de Conformité Sanitaire)WRAS Approved Product

Features

Full PTFE coating for chemical, acid, and alkali resistance
Lug-type design allows end-of-line service without disturbing pipeline
PTFE seat provides low-torque operation and leak-tight sealing
Disc coated with PTFE or PFA for media purity
Lug-type body configuration

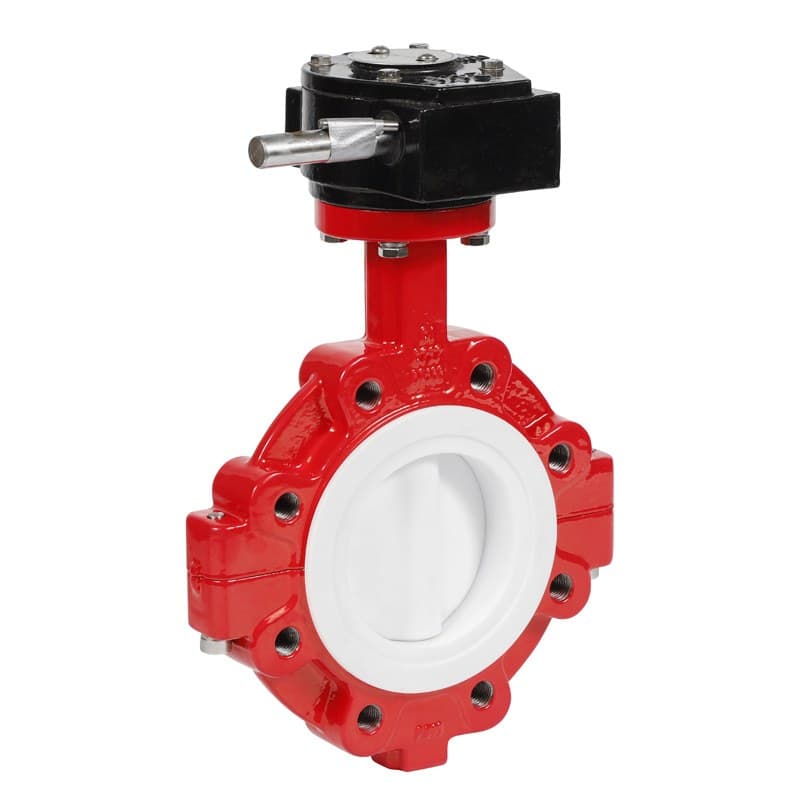

PTFE/full-lined seat and disc (white lining visible)
Gearbox actuator fitted
Raised face bolt pattern with threaded lug holes
Through-stem design with upper and lower stem bearings
Disc visible in closed position (face view)

Notes

Gear material not specified in materials table

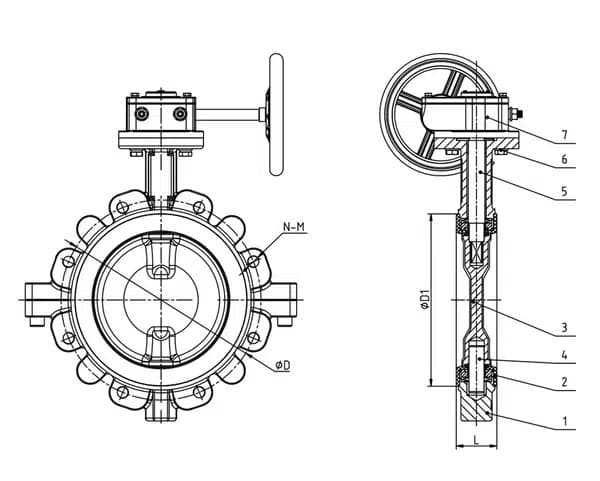

Diagram: Front and side elevation sectional drawing of a lug-type butterfly valve with gearbox. Front view shows bolt-hole circle (N-M) and disc bore (ØD). Side cross-section shows overall face-to-face length (L), outer body diameter (ØD1), and numbered part callouts 1–7 (body, seat/liner, disc, lower stem, upper stem, gearbox column, handwheel).

Description

A lug-type butterfly valve with full PTFE coating, designed for corrosive and aggressive media including chemicals, acids, and alkalis. The body is ductile iron with a PTFE seat and a CF8 disc coated with PTFE or PFA. The lug configuration permits end-of-line service and removal without disturbing the adjacent pipeline.
