Coupling
Pipe Coupling Saddle Joint
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN80-DN2600
- Pressure Class
- PN10/PN40
- Standards
- ANSI B16.10, BS5152, ISO 2531, EN545, EN598, AWWA C110, AWWA C153, ISO7005-2, BS 4504, ISO4179
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bolts and nuts
- rubber gaskets
Operating media
watergassewageirrigation water
Approvals
SGSBVTUVLloyd'sLR (Lloyd's Register)ECM (Ente Certificazione Macchine)ISOEACCEBureau VeritasACS (Attestation de Conformité Sanitaire)WRAS Approved Product
Features
- Branch connection on existing pipelines without cutting or welding
- Bolted or strap-style installation
- Compatible with PE, PVC, ductile iron, and steel host pipes
- Lost foam casting technology
- Wall thickness: K12 (main body), K14 (branch)
- Tensile strength ≥420 N/mm²
- Yield strength ≥300 N/mm²
- Elongation ≥5%
- Hardness ≤250 HB
- Two-piece split ring clamp body with bolted connection on each side
- Hexagonal boss/port on top of clamp ring
- Four sizes visible in product range: DN50, DN80, DN100, DN150
- Painted finish (black)
- Bolt-down mounting lugs/flanges on saddle clamp halves
- Two-bolt assembly using hex bolts and nuts
Notes
- Color: Black, red, or others
- Flange standard: ISO7005-2 or BS 4504 (options available)
- Bolts and nuts available in multiple grades and materials
- Diagram: Image 0: Pair of split ring pipe clamps shown side by side, black painted finish, no bolt hardware visible
- Diagram: Image 1: Single split ring pipe clamp viewed front-on showing hexagonal boss at top, no bolt hardware

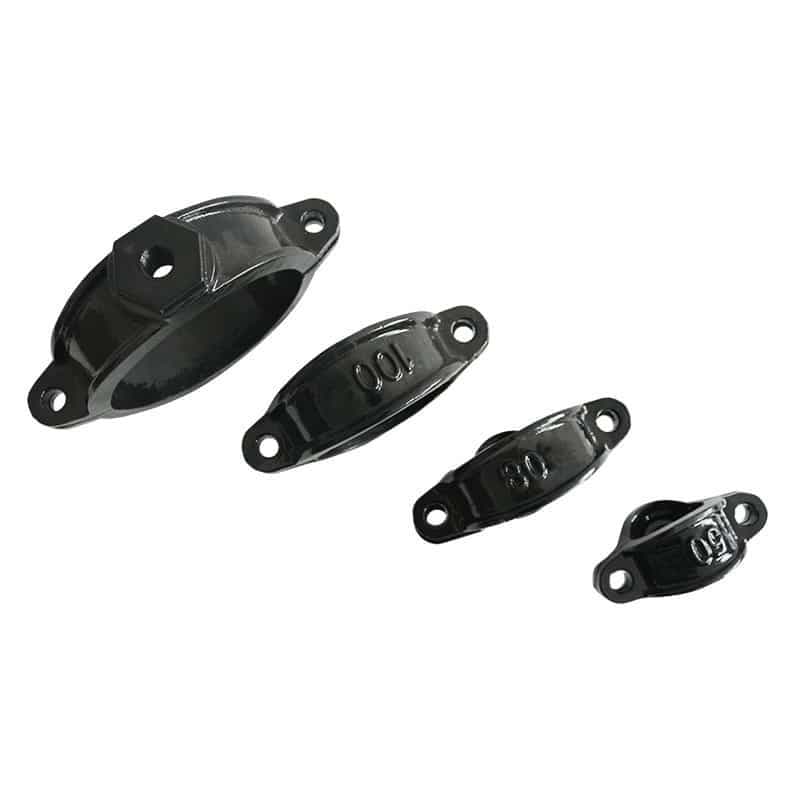

- Diagram: Image 2: Four saddle clamp halves in ascending size shown top-down/angled view, size numbers embossed: 100, 80, and smallest visible; largest unmarked

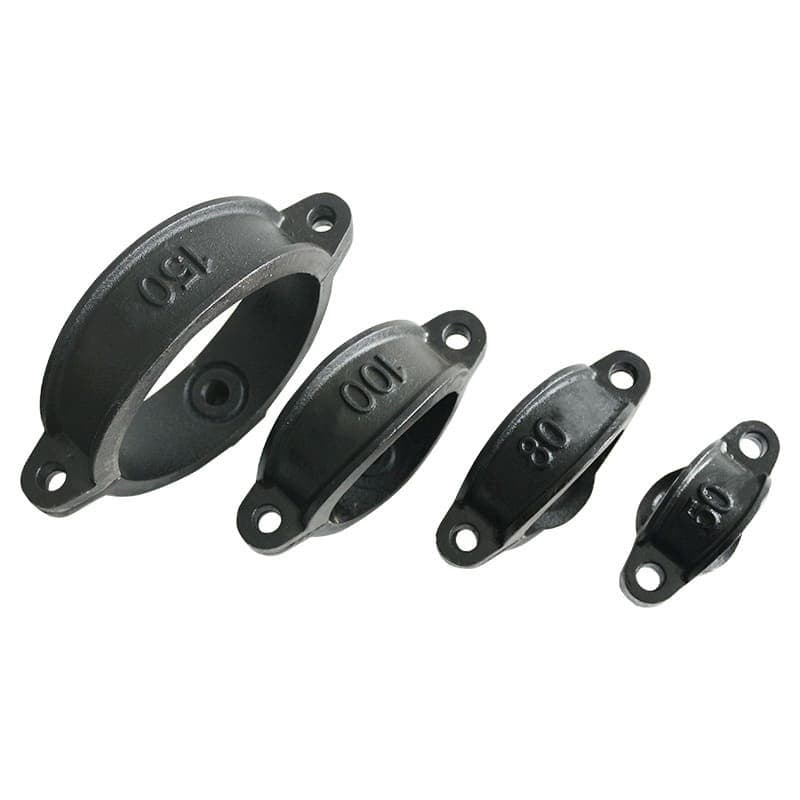

- Diagram: Image 3: Four saddle clamp halves in ascending size with embossed size markings: 150, 100, 80, 50; uncoated/raw casting finish
- Diagram: Image 4: Single saddle clamp half viewed from above showing hexagonal recess/boss and mounting holes

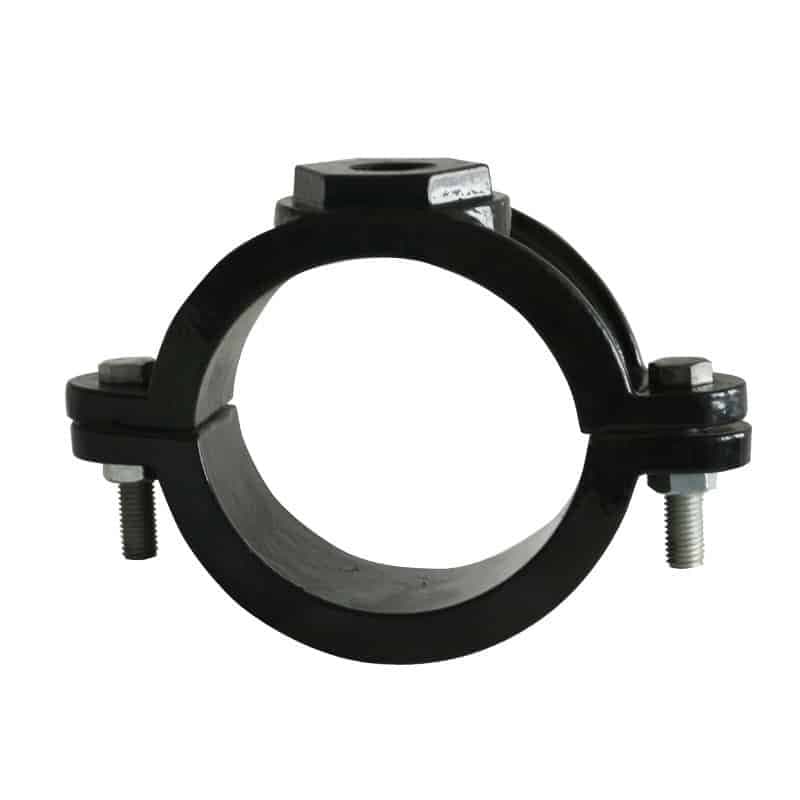

- Diagram: Image 5: Assembled two-piece ring clamp with bolt hardware (hex bolts, nuts, washers) installed at split flanges, hexagonal boss at top

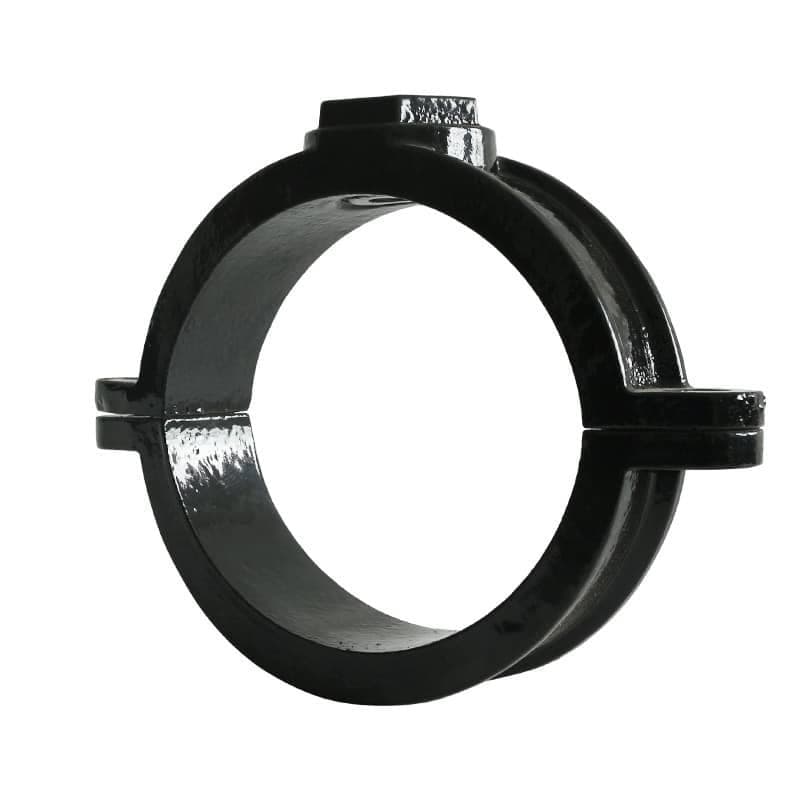

- Diagram: Image 6: Assembled two-piece ring clamp viewed at angle showing clamp body, split flanges, and hexagonal boss, no visible bolt hardware
Description
A flanged saddle joint fitting for creating branch connections on existing pipelines without cutting or welding. Manufactured from ductile iron using lost foam technology, with internal cement mortar or fusion bonded epoxy lining and external zinc-plus-bitumen or epoxy coating. Compatible with PE, PVC, ductile iron, and steel host pipes for water supply, drainage, sewerage, and irrigation applications.
