Cast Iron Flanged Ball Valve

Name: Cast Iron Flanged Ball Valve
Brand: Euro Flow Control
SKU: EFC-250
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: watts · ref: 250

Specifications

Confirmed at quote

Size Range: DN15-DN200
Pressure Class: PN16
Standards: API609, BS5155, DIN3202, ISO5752, ISO5211, DIN (flange), BS (flange), UNI (flange), ISO (flange), ANSI (flange), AS (flange), JIS (flange)
End connection: Flanged

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
ball
seat
stem
hand lever

Dimensions per size(12 sizes)

Size	L	H	D	D1	n-d	Weight
DN15	115 mm	59 mm	95 mm	65 mm	4-15 mm	—
DN20	120 mm	63 mm	105 mm	75 mm	4-15 mm	—
DN25	125 mm	75 mm	115 mm	85 mm	4-15 mm	—
DN32	130 mm	86 mm	140 mm	100 mm	4-19 mm	—
DN40	140 mm	105 mm	150 mm	110 mm	4-19 mm	—
DN50	150 mm	115 mm	165 mm	125 mm	4-19 mm	—
DN65	170 mm	135 mm	185 mm	145 mm	4-19 mm	—
DN80	180 mm	155 mm	200 mm	160 mm	8-19 mm	—
DN100	190 mm	170 mm	220 mm	180 mm	8-19 mm	—
DN125	325 mm	195 mm	250 mm	210 mm	8-19 mm	—
DN150	350 mm	240 mm	285 mm	240 mm	8-23 mm	—
DN200	400 mm	295 mm	340 mm	295 mm	12-23 mm	—

Operating media

waterwastewaterHVAC fluidsfood and beverage mediachemical/petrochemical fluids

Actuation options

manual lever

Approvals

LR (Lloyd's Register)ECM (Ente Certificazione Macchine)ISOEACCEBureau VeritasACS (Attestation de Conformité Sanitaire)WRAS Approved Product

Features

Quarter-turn operation
Flanged end connections compatible with multiple international standards
PTFE seats
Stainless steel ball
Cast iron or ductile iron body and bonnet
ISO5211 mounting flange for actuator compatibility
Flanged end connections with raised face flanges
Split body (two-piece) construction secured with bolted mid-body joint
Top-mounted stem with lever operator and lockable handle

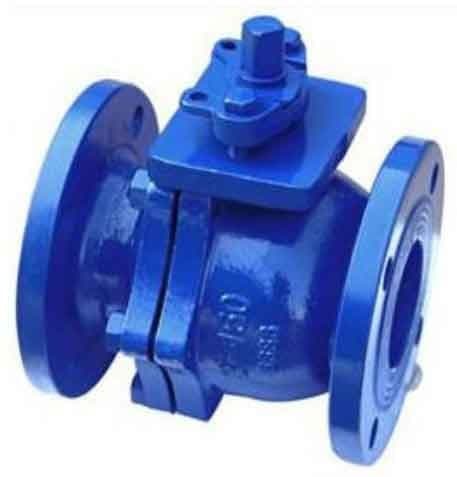

ISO 5211 top flange mounting pad visible on actuator-ready variant (image 2)
Full-bore (full-port) ball passage visible in sectional drawing
Body bolt/stud arrangement at mid-body split line
Drain/vent plug at bottom of body (item 6 in sectional drawing)

Notes

Products hold up to 10 international authoritative certification certificates — specific certificates not listed on page

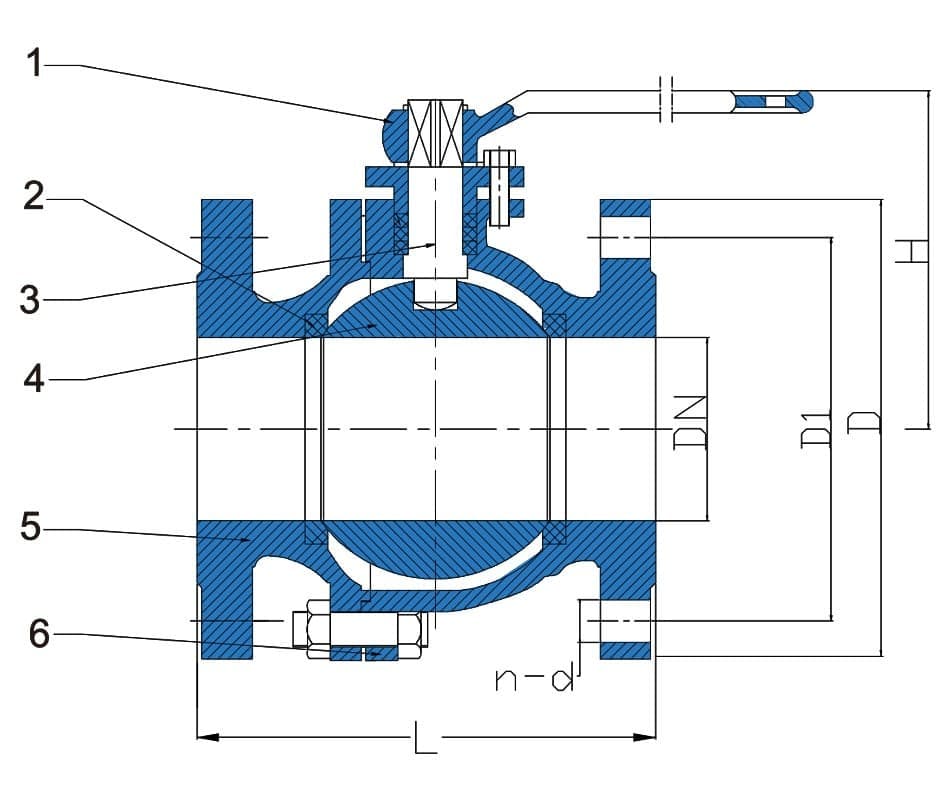

Diagram: Sectional/cross-section drawing of a flanged two-piece ball valve showing six numbered part callouts: (1) stem/packing assembly with lever handle, (2) body half with flange, (3) seat ring, (4) ball, (5) body half (opposite side), (6) body bolting/drain plug. Dimensional references shown: L (face-to-face), H (overall height including handle), D (flange outside diameter), D1 (bolt-circle diameter), DN (nominal bore), n-d (number and diameter of flange bolt holes).

Description

A flanged ball valve with a cast iron or ductile iron body, designed for quarter-turn shut-off and flow control. Features stainless steel ball and PTFE seats, with flanged end connections compatible with multiple international flange standards. Rated to PN16 (200 PSI) and suited for water supply, HVAC, and industrial fluid control applications.
