API Valve
API Butterfly Valve
Model: VHPBF-C150
Debug ยท supplier source (internal only)
Supplier product page โSupplier datasheet PDF โEFC datasheet PDF โsupplier: visvana ยท ref: 231
Specifications
Confirmed at quote- Size Range
- NPS 2 / DN50-NPS 44 / DN1100 (Class 150); NPS 40 / DN1000 (Class 300)
- Pressure Class
- Class 150/Class 300
- Standards
- API Butterfly
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

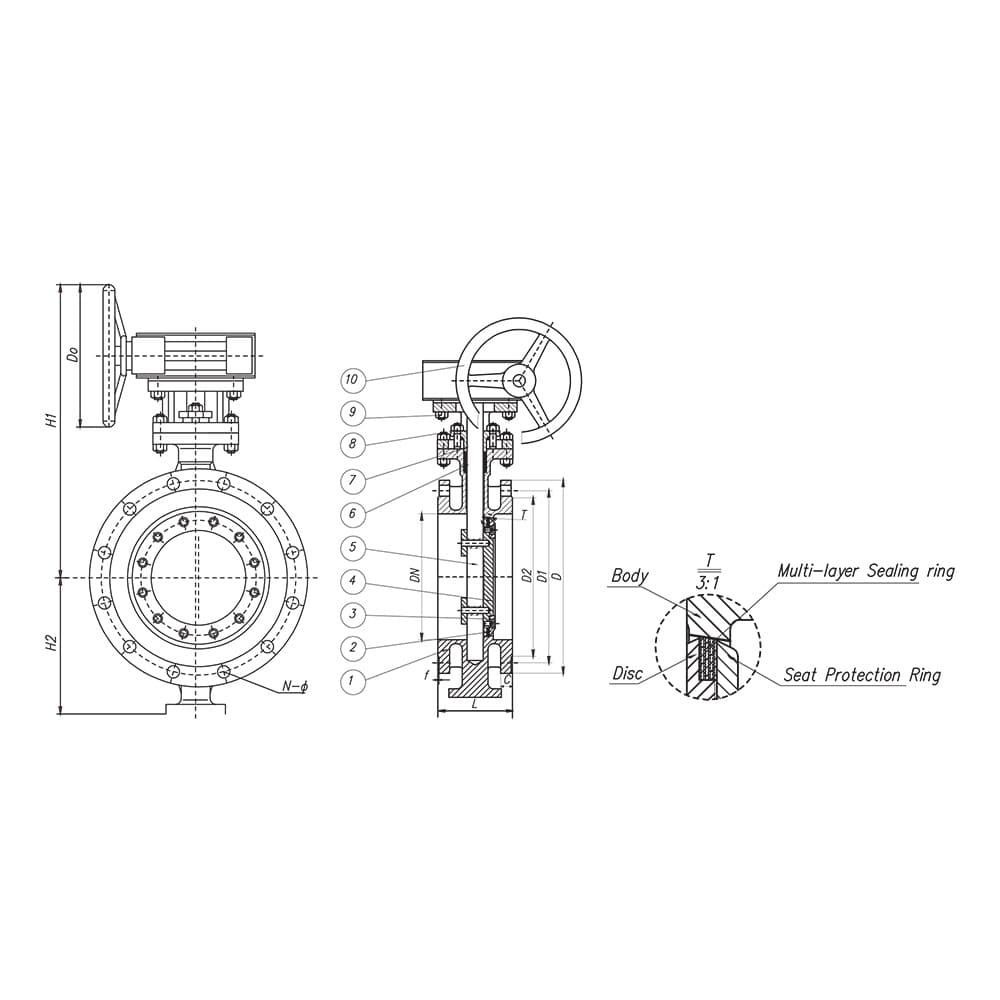

Dimensions per size(41 sizes)
| Size | L | H1 | H2 | D | Weight |
|---|---|---|---|---|---|
| NPS 2 / DN50 | 108 mm | 305 mm | 115 mm | 160 mm | 21 kg |
| NPS 2 1/2 / DN65 | 112 mm | 315 mm | 125 mm | 160 mm | 24 kg |
| NPS 3 / DN80 | 114 mm | 330 mm | 135 mm | 160 mm | 27 kg |
| NPS 4 / DN100 | 127 mm | 360 mm | 140 mm | 160 mm | 28 kg |
| NPS 5 / DN125 | 140 mm | 450 mm | 170 mm | 280 mm | 30 kg |
| NPS 6 / DN150 | 140 mm | 475 mm | 175 mm | 280 mm | 50 kg |
| NPS 8 / DN200 | 152 mm | 525 mm | 240 mm | 280 mm | 75 kg |
| NPS 10 / DN250 | 165 mm | 570 mm | 270 mm | 280 mm | 105 kg |
| NPS 12 / DN300 | 178 mm | 630 mm | 315 mm | 320 mm | 155 kg |
| NPS 14 / DN350 | 190 mm | 675 mm | 345 mm | 350 mm | 190 kg |
| NPS 16 / DN400 | 216 mm | 720 mm | 395 mm | 350 mm | 230 kg |
| NPS 18 / DN450 | 222 mm | 805 mm | 405 mm | 350 mm | 300 kg |
| NPS 20 / DN500 | 229 mm | 895 mm | 430 mm | 400 mm | 380 kg |
| NPS 24 / DN600 | 267 mm | 950 mm | 500 mm | 400 mm | 490 kg |
| NPS 26 / DN650 | 267 mm | 960 mm | 515 mm | 400 mm | 580 kg |
| NPS 28 / DN700 | 292 mm | 1030 mm | 520 mm | 400 mm | 660 kg |
| NPS 30 / DN750 | 308 mm | 1080 mm | 545 mm | 450 mm | 740 kg |
| NPS 32 / DN800 | 318 mm | 1135 mm | 620 mm | 450 mm | 820 kg |
| NPS 36 / DN900 | 330 mm | 1175 mm | 620 mm | 450 mm | 1100 kg |
| NPS 40 / DN1000 | 410 mm | 1270 mm | 720 mm | 500 mm | 1430 kg |
| NPS 44 / DN1100 | 450 mm | 1335 mm | 768 mm | 500 mm | 2200 kg |
| NPS 2 / DN50 | 150 mm | 315 mm | 115 mm | 500 mm | 32 kg |
| NPS 2 1/2 / DN65 | 170 mm | 325 mm | 125 mm | 160 mm | 39 kg |
| NPS 3 / DN80 | 180 mm | 340 mm | 135 mm | 160 mm | 42 kg |
| NPS 4 / DN100 | 190 mm | 435 mm | 140 mm | 160 mm | 45 kg |
| NPS 5 / DN125 | 200 mm | 475 mm | 170 mm | 280 mm | 48 kg |
| NPS 6 / DN150 | 210 mm | 510 mm | 220 mm | 280 mm | 80 kg |
| NPS 8 / DN200 | 230 mm | 520 mm | 240 mm | 280 mm | 120 kg |
| NPS 10 / DN250 | 250 mm | 625 mm | 270 mm | 280 mm | 168 kg |
| NPS 12 / DN300 | 270 mm | 670 mm | 320 mm | 350 mm | 248 kg |
| NPS 14 / DN350 | 290 mm | 765 mm | 370 mm | 350 mm | 304 kg |
| NPS 16 / DN400 | 310 mm | 840 mm | 410 mm | 350 mm | 368 kg |
| NPS 18 / DN450 | 330 mm | 910 mm | 420 mm | 400 mm | 480 kg |
| NPS 20 / DN500 | 350 mm | 980 mm | 460 mm | 400 mm | 608 kg |
| NPS 24 / DN600 | 390 mm | 1080 mm | 540 mm | 400 mm | 784 kg |
| NPS 26 / DN650 | 390 mm | 1130 mm | 585 mm | 450 mm | 928 kg |
| NPS 28 / DN700 | 430 mm | 1175 mm | 640 mm | 450 mm | 1056 kg |
| NPS 30 / DN750 | 430 mm | 1265 mm | 700 mm | 500 mm | 1184 kg |
| NPS 32 / DN800 | 470 mm | 1300 mm | 765 mm | 500 mm | 1312 kg |
| NPS 36 / DN900 | 510 mm | 1380 mm | 820 mm | 500 mm | 1760 kg |
| NPS 40 / DN1000 | 550 mm | 1460 mm | 890 mm | 500 mm | 2288 kg |
Actuation options
pneumaticelectrichydraulic
Features
- Triple offset design
- Multi-layer sealing ring on disc
- Seat protection ring
- Flanged end connections
Notes
- Noted: We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
Description
Triple offset flanged butterfly valve available in Class 150 and Class 300 pressure ratings, covering NPS 2 to NPS 44 (DN50 to DN1100) for Class 150 and NPS 2 to NPS 40 (DN50 to DN1000) for Class 300. The disc incorporates a multi-layer sealing ring and seat protection ring. Designed to API standards for high-pressure applications.
