API Valve

API Trunnion Ball Valve

Model: VTTBV-C150

Debug Β· supplier source (internal only)

Supplier product page β†—Supplier datasheet PDF β†—EFC datasheet PDF β†—supplier: visvana Β· ref: 218

Specifications

Confirmed at quote
Size Range
DN100-DN900
Pressure Class
Class 150/Class 1500
Standards
API 6D, API 608, ANSI B16.25, API 598, ANSI B16.5, API 1607, API 6FA

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN100DN125DN150DN200DN250DN300DN350DN400DN450DN500DN600DN700DN800DN900

Available pressure classes

Pressure classes this product is rated to.

Class 150Class 300Class 600Class 900Class 1500

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
ball
seat
stem
gasket
o ring
spring
other.body bolting
other.body nut
other.cover
other.gear
other.gland
other.low trunnion
other.seat ring

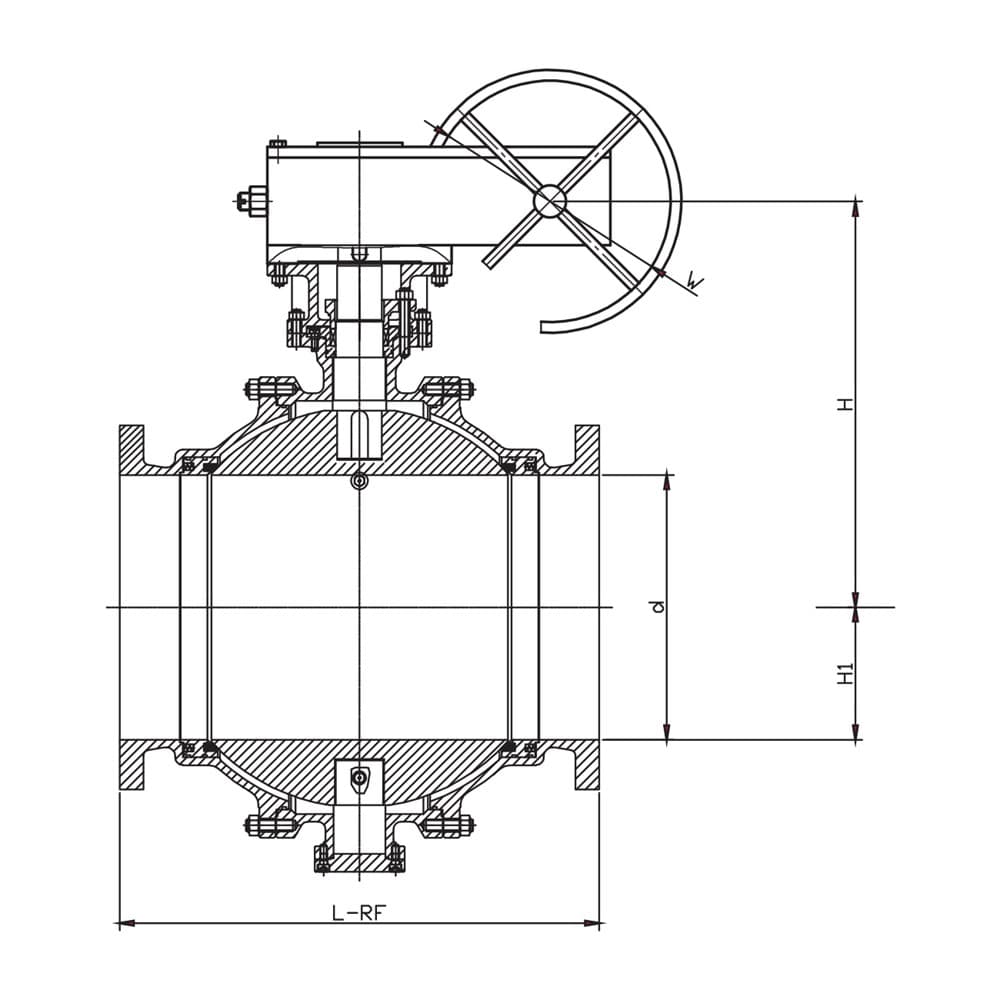

Dimensions per size(16 sizes)
SizeL_RFL_BWdHH1WWeight
DN100229 mm305 mm100 mm250 mm135 mm300 mm60 kg
DN125356 mm381 mm127 mm260 mm165 mm300 mm80 kg
DN150394 mm457 mm150 mm285 mm193 mm400 mm101 kg
DN200457 mm521 mm201 mm325 mm240 mm400 mm166 kg
DN250533 mm559 mm252 mm370 mm293 mm500 mm283 kg
DN300610 mm635 mm303 mm415 mm340 mm500 mm463 kg
DN350686 mm762 mm334 mm455 mm372 mm600 mm622 kg
DN400762 mm838 mm385 mm500 mm415 mm600 mm900 kg
DN450864 mm914 mm436 mm540 mm462 mm600 mm1150 kg
DN500914 mm991 mm487 mm590 mm511 mm600 mm1360 kg
DN6001067 mm1143 mm589 mm680 mm601 mm600 mm2514 kg
DN6501143 mm1245 mm633 mm800 mm700 mm600 mm3200 kg
DN7001245 mm1346 mm684 mm960 mm780 mm700 mm4000 kg
DN7501295 mm1397 mm735 mm1200 mm830 mm700 mm4800 kg
DN8001372 mm1524 mm779 mm1380 mm870 mm700 mm5800 kg
DN9001524 mm1727 mm874 mm1650 mm970 mm700 mm8000 kg

Actuation options

gear handwheelpneumaticelectrichydraulic

Approvals

API 1607API 6FA

Features

  • Bolted cover construction
  • Two-piece or three-piece body
  • Anti-blowout stem
  • Fire-safe design
  • Anti-static design
  • Trunnion-mounted ball
  • Reinforced PTFE seats
  • Available in multiple body material configurations including WCB/13Cr, WCB/304, WCB/316, CF8/304, CF8M/316

Description

A cast steel trunnion-mounted ball valve with bolted cover and two-piece or three-piece body construction. Features an anti-blowout stem, fire-safe and anti-static design, available in Class 150 to 1500. Designed and manufactured to API 6D and API 608 with flanged or butt-weld end connections.
