API Gate Valves

Name: API Gate Valves
Brand: Euro Flow Control
SKU: EFC-214
Availability: InStock

Model: VYM-C600

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 214

Specifications

Confirmed at quote

Size Range: NPS 2-NPS 24
Pressure Class: Class 600/Class 900
Standards: API 600, API 6D, API 598, ASME B16.5, ASME B16.47 A, MSS SP-4, ASME B16.47 B, API 605, ASME B16.25, ASME B16.10, ASME B16.34
End connection: RF / RTJ / BW (ASME B16.5, ASME B16.47 A/B)
Face-to-face: ASME B16.10

Available pressure classes

Pressure classes this product is rated to.

Class 600 Class 900

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Dimensions per size(27 sizes)

Size	L_RF	L_RTJ	L_BW	d	H	W	H1	W1	Weight
NPS 2 / DN50	292 mm	295 mm	292 mm	50 mm	380 mm	200 mm	—	—	H.W 37 kg
NPS 2 1/2 / DN65	330 mm	333 mm	330 mm	63 mm	420 mm	250 mm	—	—	H.W 50 kg
NPS 3 / DN80	356 mm	359 mm	356 mm	76 mm	500 mm	280 mm	585 mm	310 mm	H.W 82 kg / G.O 87 kg
NPS 4 / DN100	432 mm	435 mm	432 mm	100 mm	575 mm	300 mm	695 mm	310 mm	H.W 134 kg / G.O 142 kg
NPS 5 / DN125	508 mm	511 mm	508 mm	127 mm	700 mm	350 mm	790 mm	310 mm	H.W 175 kg / G.O 227 kg
NPS 6 / DN150	559 mm	562 mm	559 mm	150 mm	750 mm	450 mm	900 mm	460 mm	H.W 245 kg / G.O 286 kg
NPS 8 / DN200	660 mm	664 mm	660 mm	199 mm	850 mm	500 mm	1110 mm	460 mm	H.W 423 kg / G.O 472 kg
NPS 10 / DN250	787 mm	791 mm	787 mm	247 mm	1005 mm	650 mm	1300 mm	460 mm	H.W 682 kg / G.O 657 kg
NPS 12 / DN300	838 mm	841 mm	838 mm	298 mm	1130 mm	700 mm	1650 mm	460 mm	H.W 932 kg / G.O 893 kg
NPS 14 / DN350	889 mm	892 mm	889 mm	326 mm	1270 mm	900 mm	1750 mm	530 mm	H.W 1177 kg / G.O 1318 kg
NPS 16 / DN400	991 mm	994 mm	991 mm	374 mm	1365 mm	900 mm	1900 mm	530 mm	H.W 1513 kg / G.O 1720 kg
NPS 18 / DN450	1092 mm	1095 mm	1092 mm	419 mm	2020 mm	600 mm	—	—	G.O 1980 kg
NPS 20 / DN500	1194 mm	1200 mm	1194 mm	463 mm	2172 mm	600 mm	—	—	G.O 2460 kg
NPS 24 / DN600	1397 mm	1407 mm	1397 mm	558 mm	2650 mm	600 mm	—	—	G.O 3650 kg
NPS 2 / DN50	368 mm	371 mm	368 mm	47 mm	500 mm	280 mm	—	—	H.W 70 kg
NPS 2 1/2 / DN65	419 mm	422 mm	419 mm	57 mm	450 mm	280 mm	—	—	H.W 110 kg
NPS 3 / DN80	381 mm	384 mm	381 mm	72 mm	505 mm	300 mm	—	310 mm	H.W 140 kg / G.O 167 kg
NPS 4 / DN100	457 mm	460 mm	457 mm	98 mm	575 mm	350 mm	625 mm	310 mm	H.W 178 kg / G.O 227 kg
NPS 5 / DN125	559 mm	562 mm	559 mm	125 mm	630 mm	400 mm	740 mm	310 mm	H.W 258 kg / G.O 285 kg
NPS 6 / DN150	610 mm	613 mm	610 mm	146 mm	795 mm	500 mm	900 mm	460 mm	H.W 358 kg / G.O 396 kg
NPS 8 / DN200	737 mm	740 mm	737 mm	190 mm	885 mm	650 mm	1000 mm	460 mm	H.W 550 kg / G.O 627 kg
NPS 10 / DN250	838 mm	841 mm	838 mm	238 mm	1035 mm	700 mm	1130 mm	530 mm	H.W 1000 kg / G.O 1100 kg
NPS 12 / DN300	965 mm	968 mm	965 mm	282 mm	1180 mm	900 mm	1520 mm	530 mm	H.W 1215 kg / G.O 1310 kg
NPS 14 / DN350	1029 mm	1038 mm	1029 mm	311 mm	1350 mm	900 mm	1600 mm	530 mm	H.W 1600 kg / G.O 1665 kg
NPS 16 / DN400	1130 mm	1140 mm	1130 mm	355 mm	1890 mm	900 mm	2100 mm	600 mm	H.W 2150 kg / G.O 2330 kg
NPS 18 / DN450	1219 mm	—	—	400 mm	2232 mm	800 mm	—	—	G.O 3000 kg
NPS 20 / DN500	1321 mm	—	—	444 mm	2435 mm	800 mm	—	—	G.O 3800 kg

Actuation options

handwheelgear operatorpneumaticelectrichydraulic

Features

Rising stem design
Gear operation available for larger sizes
Three end connection options: RF, RTJ, and BW

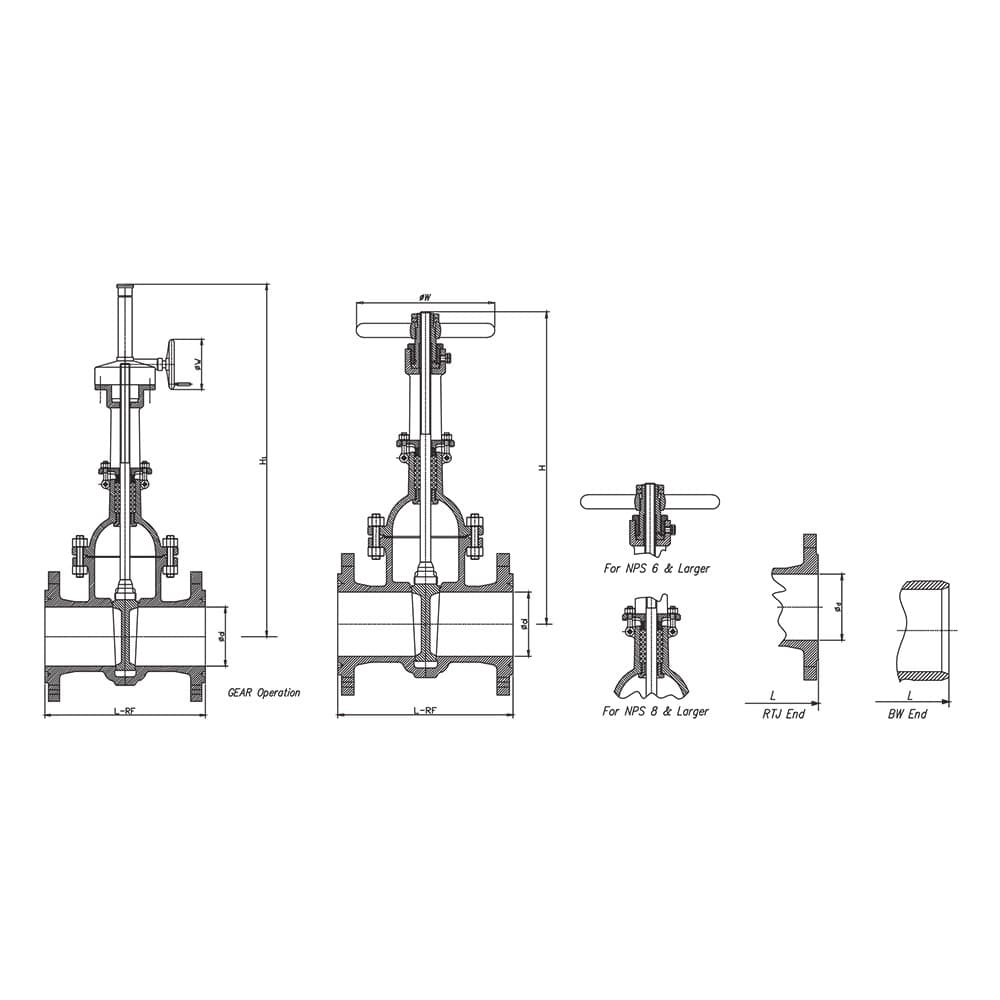

Slab or wedge gate configuration (NPS 6 and larger, NPS 8 and larger variants shown in drawings)
Available with handwheel or gear operator

Notes

We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.

Description

Flanged gate valves designed to API standards in pressure Classes 600 and 900. Available in sizes NPS 2 through NPS 24 (Class 600) and NPS 2 through NPS 20 (Class 900). End connections include raised face (RF), ring-type joint (RTJ), and butt-weld (BW) configurations.
