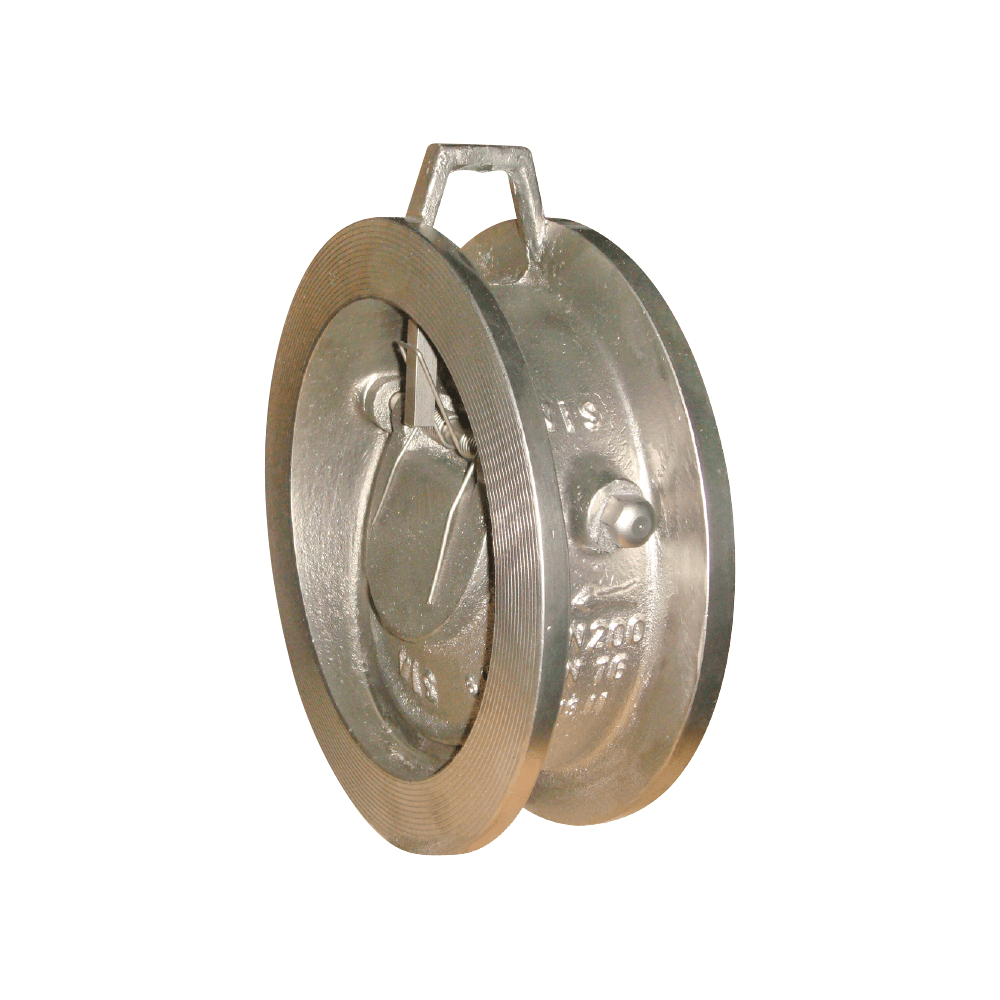

Wafer Tilting Disc Check Valve (Marine)
Model: VWTD-10-16-25
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN1000
- Pressure Class
- PN10/PN25
- Standards
- DIN EN 558-1-16, API 598, DIN EN 12266, DIN EN 1092
- Face-to-face
- DIN3202/2-F4 / BS 5155
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- seat
- stem
- other.disc seat
- other.plug

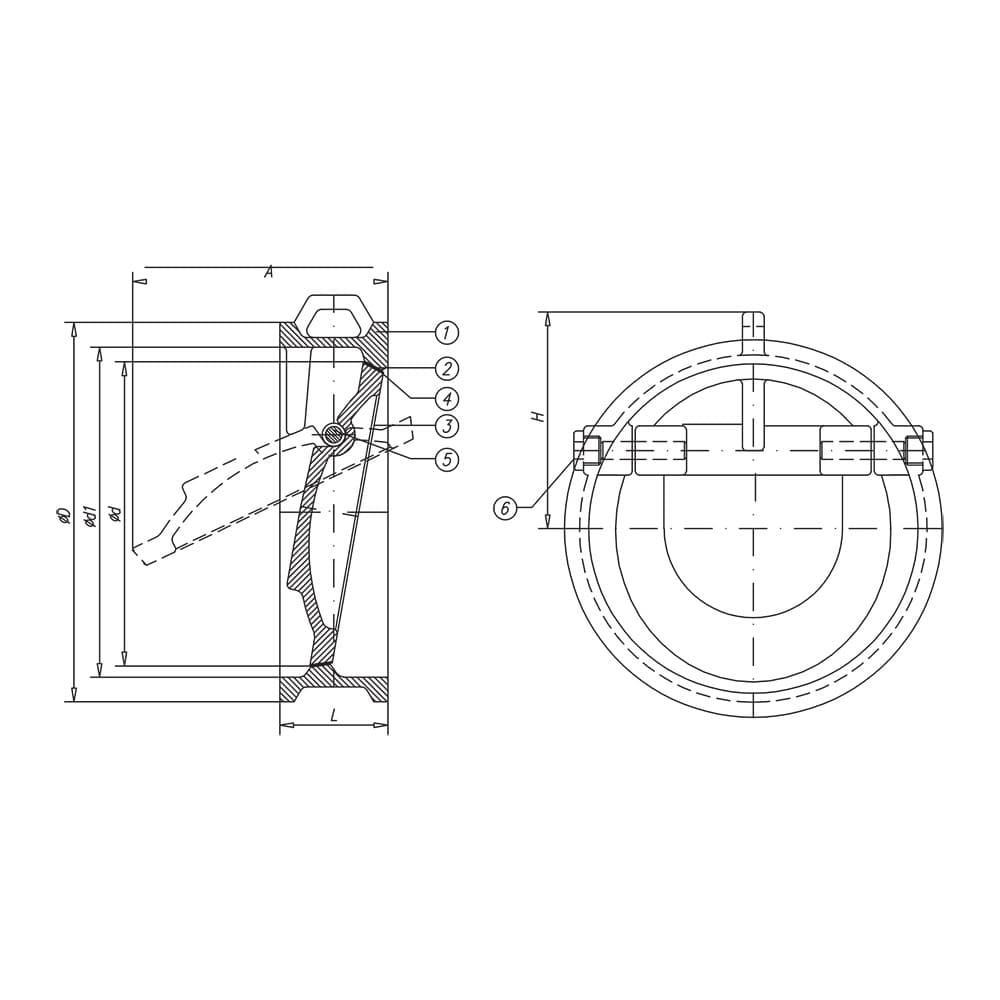

Dimensions per size(19 sizes)
| Size | Ød | Ød1 | ØA | L | H | Weight |
|---|---|---|---|---|---|---|
| DN40 | 34 mm | 40 mm | 45 mm | 33 mm | — | 0.8 kg |
| DN50 | 44 mm | 50 mm | 54 mm | 43 mm | — | 1 kg |
| DN65 | 58 mm | 65 mm | 64 mm | 46 mm | — | 2 kg |
| DN80 | 72 mm | 80 mm | 85 mm | 64 mm | — | 3 kg |
| DN100 | 90 mm | 100 mm | 95 mm | 64 mm | — | 4.5 kg |
| DN125 | 112 mm | 125 mm | 115 mm | 70 mm | — | 6.5 kg |
| DN150 | 135 mm | 150 mm | 135 mm | 76 mm | — | 7.5 kg |
| DN200 | 180 mm | 200 mm | 220 mm | 89 mm | 155 mm | 15 kg |
| DN250 | 225 mm | 250 mm | 220 mm | 114 mm | 182 mm | 26.5 kg |
| DN300 | 270 mm | 300 mm | 250 mm | 114 mm | 210 mm | 33.5 kg |
| DN350 | 315 mm | 350 mm | 295 mm | 127 mm | 240 mm | 54 kg |
| DN400 | 365 mm | 400 mm | 340 mm | 140 mm | 275 mm | 66 kg |
| DN450 | 410 mm | 450 mm | 370 mm | 152 mm | 300 mm | 92 kg |
| DN500 | 460 mm | 500 mm | 405 mm | 152 mm | 325 mm | 110 kg |
| DN600 | 555 mm | 600 mm | 500 mm | 178 mm | 390 mm | 178 kg |
| DN700 | 650 mm | 700 mm | 616 mm | 229 mm | 460 mm | 245 kg |
| DN800 | 745 mm | 800 mm | 670 mm | 241 mm | 515 mm | 385 kg |
| DN900 | 835 mm | 900 mm | 750 mm | 241 mm | 562 mm | 445 kg |
| DN1000 | 930 mm | 1000 mm | 760 mm | 300 mm | 625 mm | 780 kg |
Description
A wafer-type tilting disc check valve designed for installation between flanges conforming to DIN EN 1092. Available in pressure ratings PN10, PN16, and PN25, with body materials including grey cast iron, cast steel, stainless steel, and bronze. Operating temperature range is -10°C to +120°C.
