Bronze Marine Valve

Ball Valve

Debug ยท supplier source (internal only)

Supplier product page โ†—EFC datasheet PDF โ†—supplier: visvana ยท ref: 206

Specifications

Confirmed at quote
Size Range
DN15-DN250
Pressure Class
PN6/PN16
Standards
DIN 3202-F4, DIN 3202-F5, ISO 5211, EN 1092

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15DN20DN25DN32DN40DN50DN65DN80DN100DN125DN150DN200DN250

Available pressure classes

Pressure classes this product is rated to.

PN6PN10PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
ball
seat
stem
packing
gasket
o ring
gland
lever
lock
nut
screw
screw nut
spring washer
thrust gasket

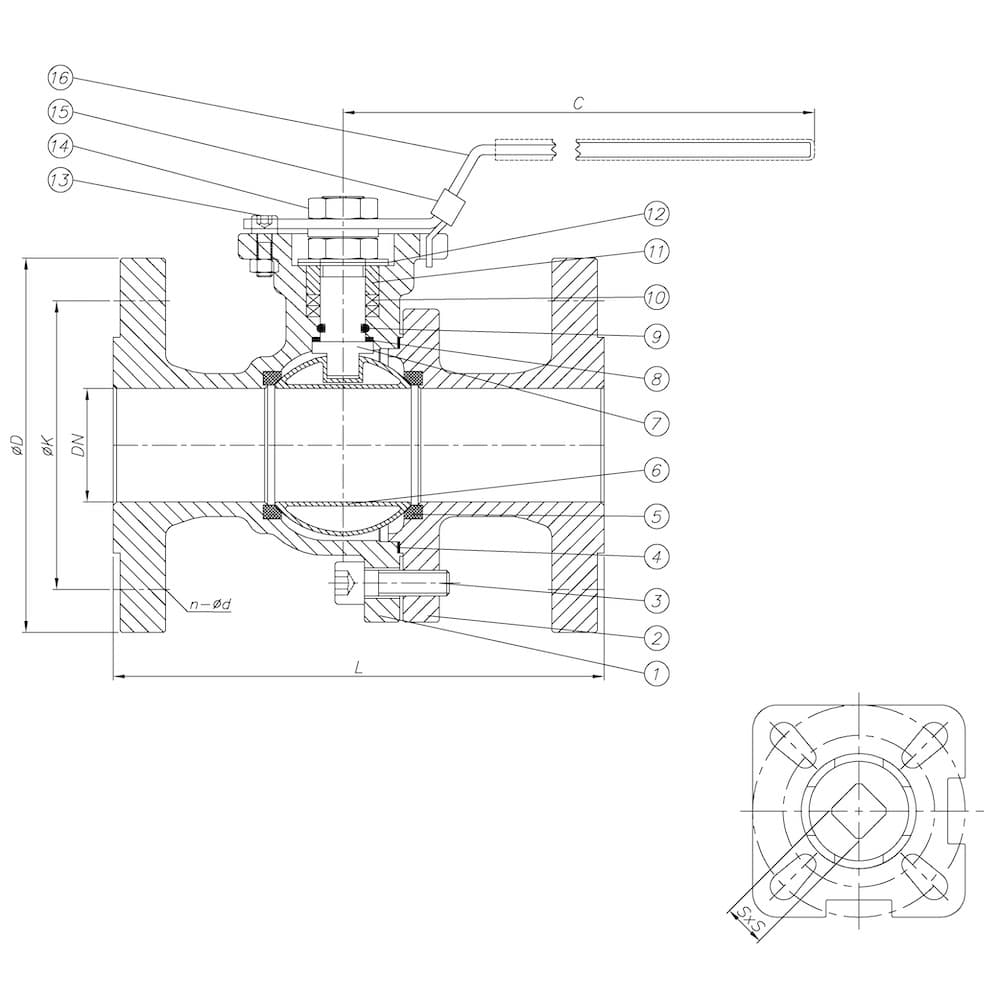

Dimensions per size(13 sizes)
SizeLWeight
DN15115 mm2.7 kg
DN20120 mm3.4 kg
DN25125 mm4.3 kg
DN32130 mm6 kg
DN40140 mm7 kg
DN50150 mm9.2 kg
DN65170 mm13 kg
DN80180 mm15.9 kg
DN100190 mm19 kg
DN125325 mm35.9 kg
DN150350 mm47 kg
DN200400 mm77.6 kg
DN250450 mm174.3 kg

Operating media

marine applications

Actuation options

manual lever

Features

  • Full bore design
  • Bronze Rg5 / CuSn10 / C95800 body and bonnet
  • PTFE seats and packing
  • Viton O-ring
  • SS 316 or Bronze ball options
  • ISO 5211 top flange for actuator mounting
  • Lever with integrated lock

Description

Ball Valve, Full Bore
