Plug Valve (2 way)
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50-DN200
- Pressure Class
- PN10/PN40
- Standards
- BS 1735, DIN EN 558-1/1, DIN EN 1092-1/2, ASA 125, ASA 150, BS 4504
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- packing
- gasket
- other.gland
- other.plug

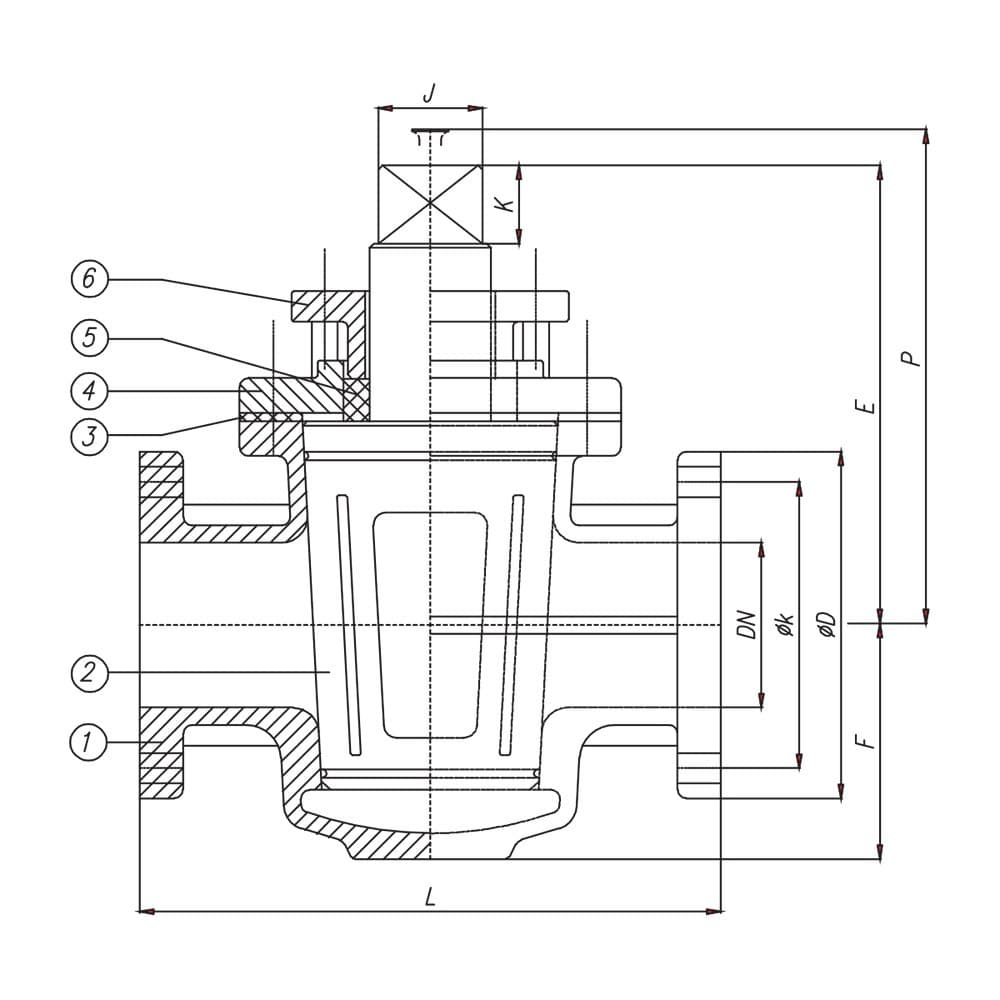

Dimensions per size(7 sizes)
| Size | L | E | F | P | J | K | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 230 mm | 160 mm | 70 mm | 225 mm | 27 mm | 27 mm | 15 kg |
| DN65 | 290 mm | 173 mm | 85 mm | 254 mm | 32 mm | 32 mm | 20 kg |
| DN80 | 310 mm | 211 mm | 100 mm | 292 mm | 37 mm | 38 mm | 28 kg |
| DN100 | 350 mm | 230 mm | 114 mm | 350 mm | 41 mm | 46 mm | 32 kg |
| DN125 | 400 mm | 265 mm | 124 mm | 365 mm | 41 mm | 46 mm | 60 kg |
| DN150 | 480 mm | 292 mm | 162 mm | 422 mm | 54 mm | 60 mm | 87 kg |
| DN200 | 600 mm | 327 mm | 192 mm | 457 mm | 54 mm | 60 mm | 105 kg |
Actuation options
Description
A two-way flanged plug valve available in sizes DN50 to DN200, rated for PN10 to PN40 and ASA 125/150 pressure classes. The valve features a tapered plug (tapa) design with PTFE packing and EPDM gasket. Body, plug, bonnet and gland are cast iron or ductile iron construction.
