Sounding Cocks Valve 90 Stop Turning Lever
Debug ¡ supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN32-DN65
- Pressure Class
- PN 2.5
- Standards
- DIN 86 120, DIN 259, ISO R 228
- End connection
- Threaded (DIN 259 / ISO R 228)
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- gasket
- o ring
- other.cock
- other.dust cap
- other.handlelever
- other.nut
- other.test valve

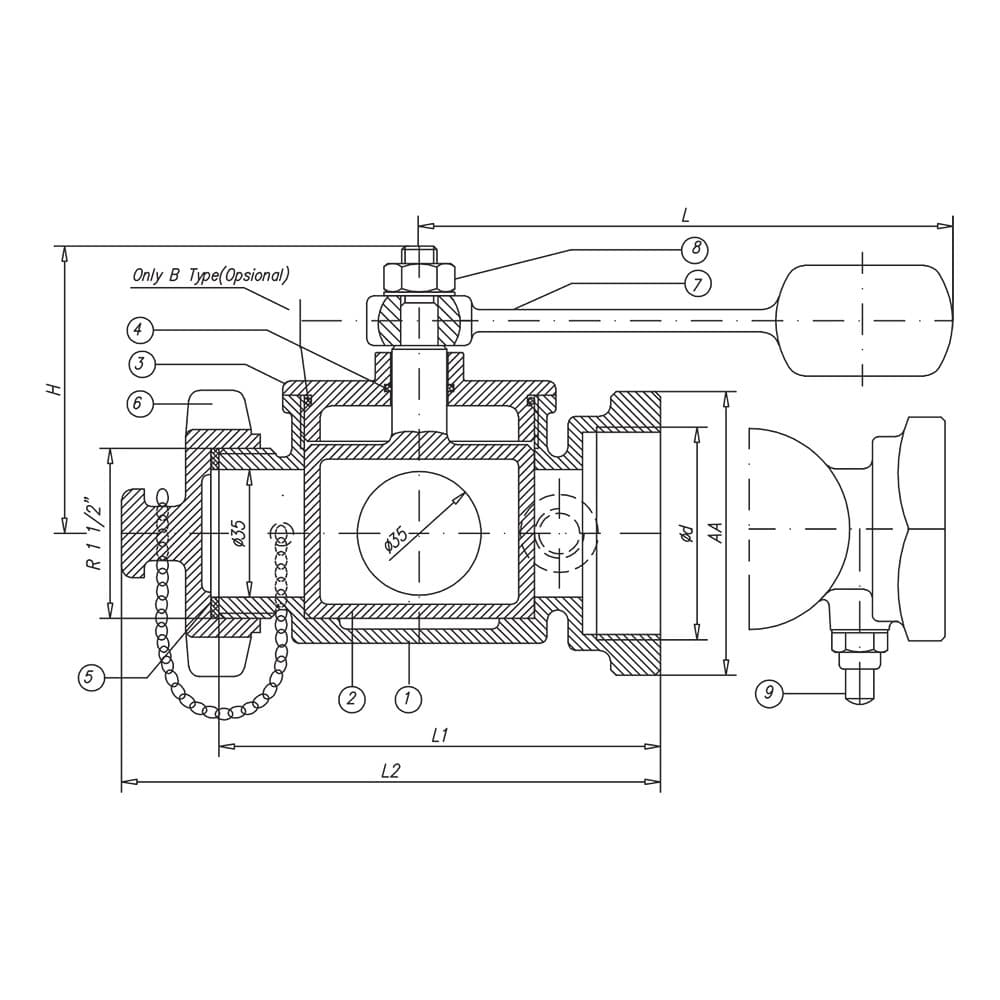

Dimensions per size(4 sizes)
| Size | L1 | L2 | H | Od | AA | L | Weight |
|---|---|---|---|---|---|---|---|
| DN32 | 120 mm | 135 mm | 85 mm | 1 1/4" inch | 55 mm | 190 mm | 3.5 kg |
| DN40 | 125 mm | 140 mm | 85 mm | 1 1/2" inch | 55 mm | 190 mm | 4 kg |
| DN50 | 125 mm | 140 mm | 85 mm | 2" inch | 70 mm | 190 mm | 4.5 kg |
| DN65 | 130 mm | 145 mm | 85 mm | 2 1/2" inch | 85 mm | 190 mm | 5 kg |
Operating media
Actuation options
Features
- Full bore design
- 90° stop turning lever operation
- Threaded end connections
- Integrated test valve (item 9)
- Dust cap included
- Optional Type B configuration available
Description
A full bore threaded sounding cock valve with 90° stop turning lever operation. Designed to DIN 86 120 with threaded end connections per DIN 259 / ISO / R 228. Available in sizes DN32 to DN65 at PN 2.5 pressure rating.
