Bronze Pressure Reducing Valve
Model: VPRV-20
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN100
- Pressure Class
- 20 bar
- Standards
- BSPT
- End connection
- BSPT
- Operating temperature
- <170°C
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- gasket
- o ring
- spring
- other.cap
- other.connection plug
- other.core
- other.diaphragm
- other.mesh
- other.stem gasket

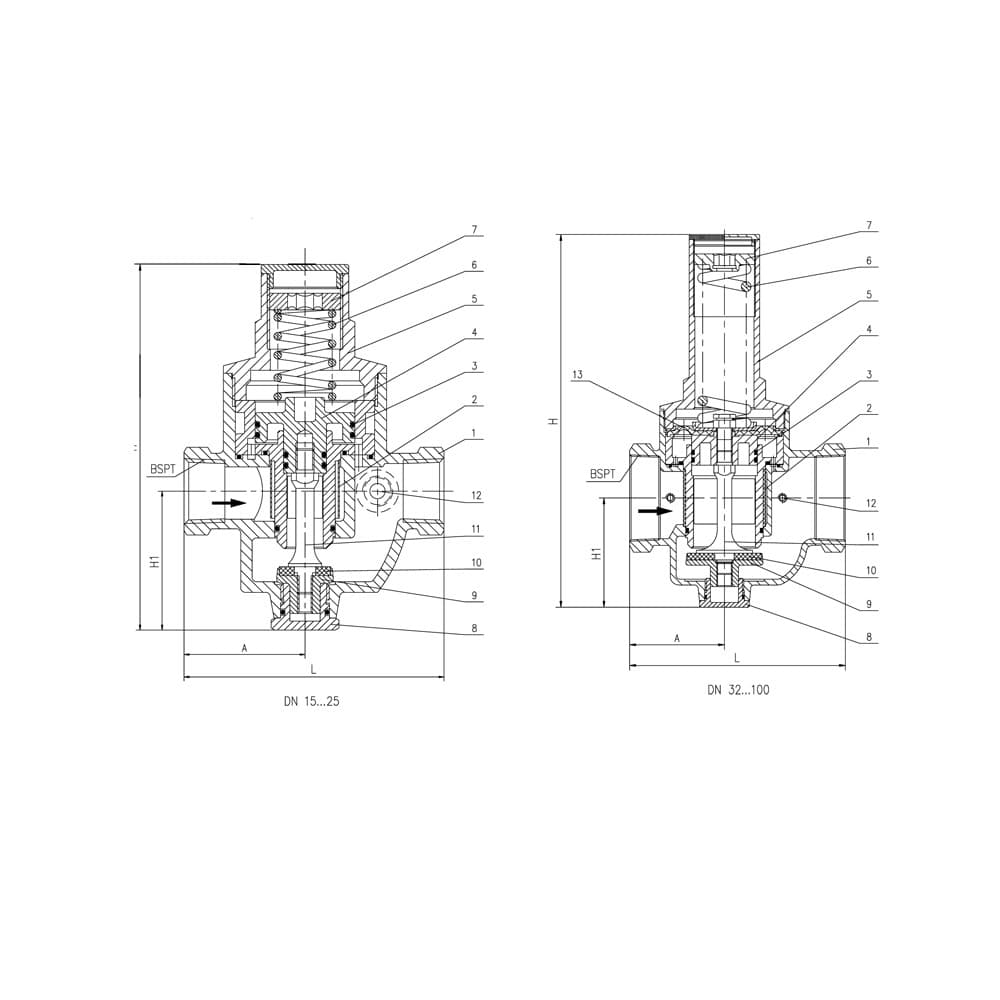

Dimensions per size(9 sizes)
| Size | L | A | H | H1 | L1 | Weight |
|---|---|---|---|---|---|---|
| DN15 | 89 mm | 41.5 mm | 121 mm | 46 mm | — | — |
| DN20 | 92 mm | 43 mm | 121 mm | 46 mm | — | — |
| DN25 | 98 mm | 46 mm | 121 mm | 46 mm | — | — |
| DN32 | 126 mm | 55 mm | 192 mm | 62 mm | — | — |
| DN40 | 126 mm | 55.5 mm | 192 mm | 62 mm | — | — |
| DN50 | 168 mm | — | 272 mm | 85 mm | 72 mm | — |
| DN65 | 174 mm | — | 272 mm | 85 mm | 75.5 mm | — |
| DN80 | 225 mm | — | 385 mm | 113 mm | 98.5 mm | — |
| DN100 | 230 mm | — | 385 mm | 113 mm | 104.5 mm | — |
Operating media
Features
- Diaphragm-type pressure reducing mechanism
- Adjustable outlet pressure
- Outlet pressure range DN15–DN25: 1–4 bar
- Outlet pressure range DN32–DN100: 1–5 bar
- Two construction variants: DN15–25 and DN32–100 with differing internal geometry
- Integral mesh strainer element
Description
A bronze pressure reducing valve available in sizes DN15 to DN100 with BSPT end connections. Rated to 20 bar inlet pressure with adjustable outlet pressure ranges depending on size. Suitable for water and gas applications up to 170°C.
