Flange Adaptor

Name: Flange Adaptor
Brand: Euro Flow Control
SKU: EFC-176
Availability: InStock

Model: VFA-10-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 176

Specifications

Confirmed at quote

Size Range: DN50-DN1000
Pressure Class: PN10/PN16
Standards: EN 1092-2, ASME B16.5, EN 12266
End connection: EN 1092-2 / ASME B16,5

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800 DN900 DN1000

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

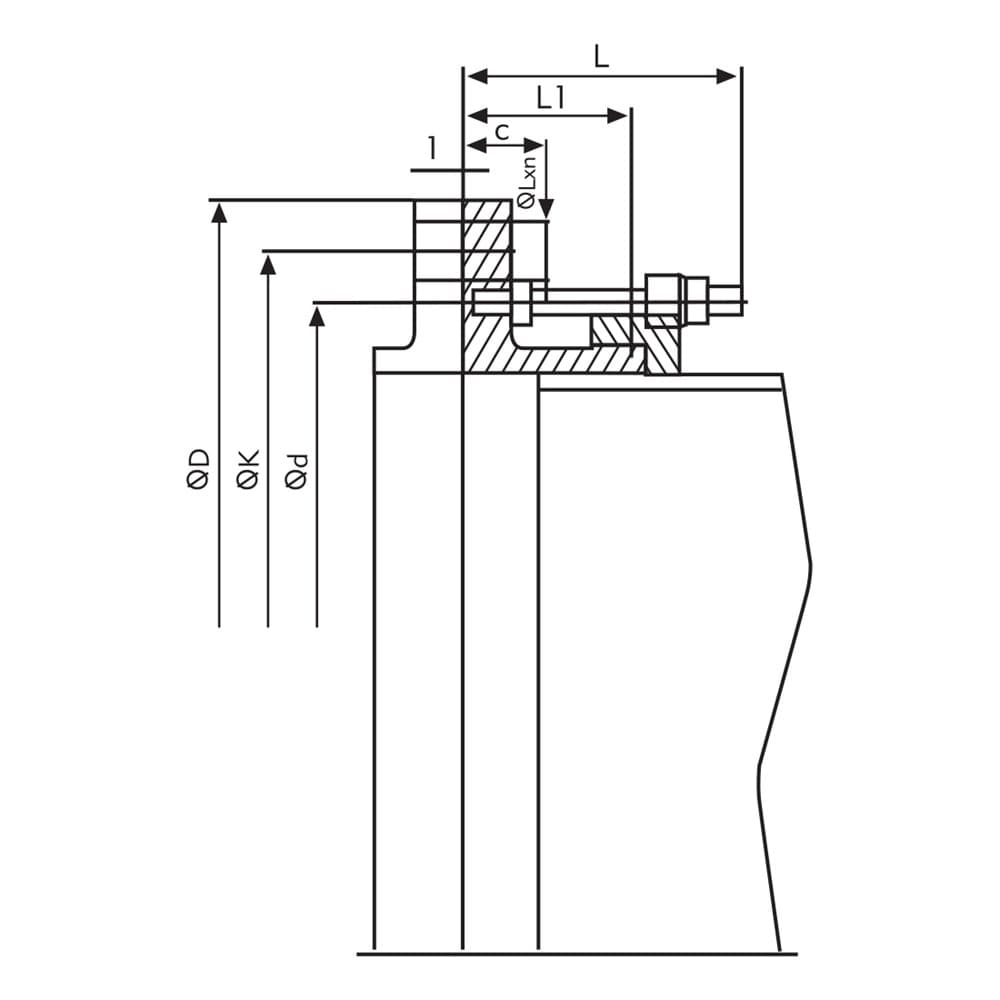

Dimensions per size(28 sizes)

Size	PN	OD	OK	Od	C	f	OLxn	L	L1	Weight
DN50	10/16	165 mm	125 mm	99 mm	19 mm	3 mm	19x4 mm	105 mm	75 mm	—
DN65	10/16	185 mm	145 mm	118 mm	19 mm	3 mm	19x4 mm	105 mm	75 mm	—
DN80	10/16	200 mm	160 mm	132 mm	19 mm	3 mm	19x8 mm	110 mm	75 mm	—
DN100	10/16	220 mm	180 mm	156 mm	19 mm	3 mm	19x8 mm	120 mm	75 mm	—
DN125	10/16	250 mm	210 mm	184 mm	19 mm	3 mm	19x8 mm	135 mm	75 mm	—
DN150	10/16	285 mm	240 mm	211 mm	19 mm	3 mm	23x8 mm	135 mm	75 mm	—
DN200	10	340 mm	295 mm	266 mm	20 mm	3 mm	23x8 mm	135 mm	75 mm	—
DN200	16	340 mm	295 mm	266 mm	20 mm	3 mm	23x12 mm	135 mm	75 mm	—
DN250	10	395 mm	350 mm	319 mm	22 mm	3 mm	23x12 mm	140 mm	75 mm	—
DN250	16	405 mm	355 mm	319 mm	22 mm	3 mm	28x12 mm	140 mm	75 mm	—
DN300	10	445 mm	400 mm	370 mm	25 mm	4 mm	23x12 mm	135 mm	75 mm	—
DN300	16	460 mm	410 mm	370 mm	25 mm	4 mm	28x12 mm	135 mm	75 mm	—
DN350	10	505 mm	460 mm	429 mm	25 mm	4 mm	23x16 mm	150 mm	85 mm	—
DN350	16	520 mm	470 mm	429 mm	27 mm	4 mm	28x16 mm	150 mm	85 mm	—
DN400	10	565 mm	515 mm	480 mm	25 mm	4 mm	28x16 mm	150 mm	100 mm	—
DN400	16	580 mm	525 mm	480 mm	28 mm	4 mm	31x16 mm	150 mm	100 mm	—
DN500	10	670 mm	620 mm	582 mm	27 mm	4 mm	28x20 mm	165 mm	100 mm	—
DN500	16	715 mm	650 mm	609 mm	32 mm	4 mm	34x20 mm	165 mm	100 mm	—
DN600	10	780 mm	725 mm	682 mm	30 mm	5 mm	31x20 mm	165 mm	100 mm	—
DN600	16	840 mm	770 mm	720 mm	36 mm	5 mm	37x20 mm	165 mm	100 mm	—
DN700	10	895 mm	840 mm	794 mm	33 mm	5 mm	31x24 mm	165 mm	100 mm	—
DN700	16	910 mm	840 mm	794 mm	40 mm	5 mm	37x24 mm	165 mm	100 mm	—
DN800	10	1015 mm	950 mm	901 mm	35 mm	5 mm	34x24 mm	165 mm	100 mm	—
DN800	16	1025 mm	950 mm	901 mm	43 mm	5 mm	41x24 mm	165 mm	100 mm	—
DN900	10	1115 mm	1050 mm	1001 mm	38 mm	5 mm	34x28 mm	180 mm	115 mm	—
DN900	16	1125 mm	1050 mm	1001 mm	47 mm	5 mm	41x28 mm	180 mm	115 mm	—
DN1000	10	1230 mm	1160 mm	1112 mm	40 mm	5 mm	37x28 mm	180 mm	115 mm	—
DN1000	16	1255 mm	1170 mm	1112 mm	40 mm	5 mm	44x28 mm	180 mm	115 mm	—

Description

A flange adaptor fitting designed for connecting pipework with flanged ends. Rated for PN10 to PN16 pressure classes across a size range of DN50 to DN1000. Compatible with EN 1092-2 and ASME B16.5 flange standards.
