2 Pcs Design Ball Valve Full Bore

Name: 2 Pcs Design Ball Valve Full Bore
Brand: Euro Flow Control
SKU: EFC-113
Availability: InStock

Model: VKV-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 113

Specifications

Confirmed at quote

Size Range: DN32-DN200
Pressure Class: PN16
Standards: DIN 3357, DIN EN 1092-1, API 598, DIN EN 12266, DIN EN 558-1-14
End connection: Flange (DIN EN 1092-1)
Face-to-face: DIN EN 558-1-14

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
ball
seat
stem
other.lever
other.nut
other.stud

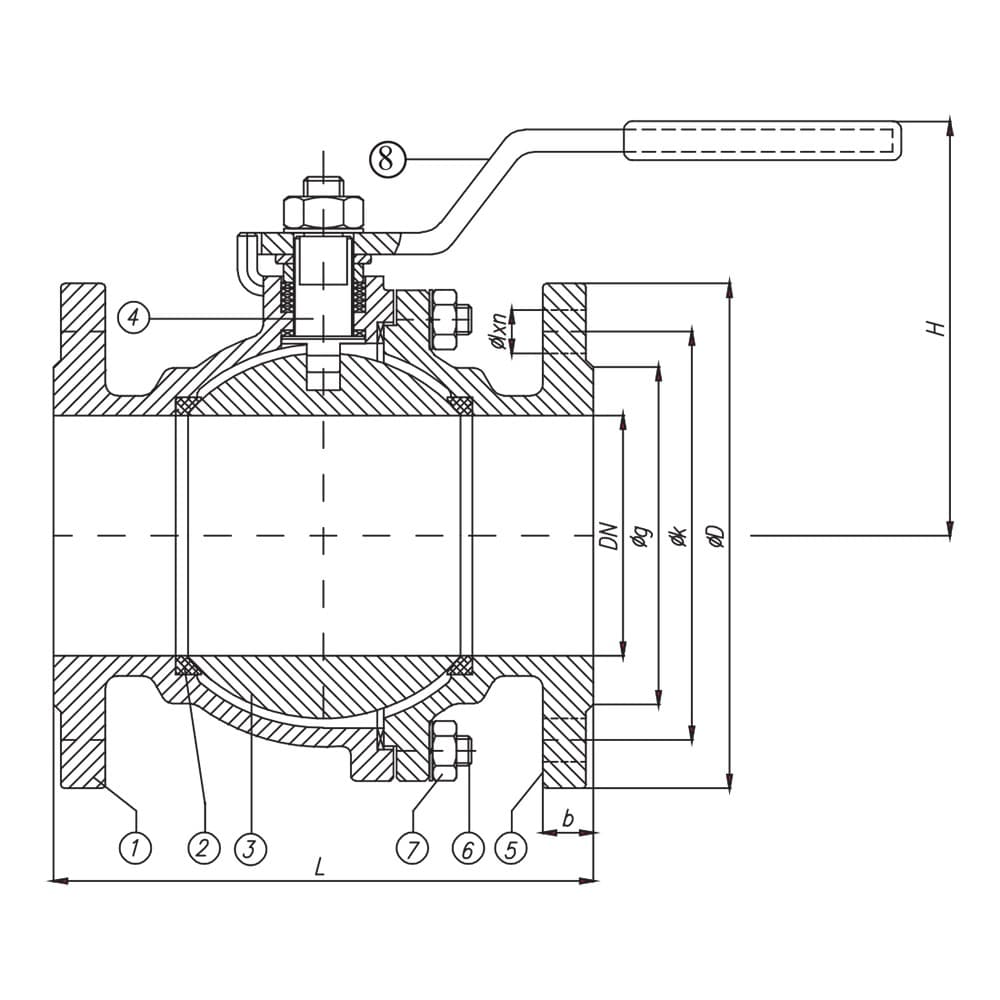

Dimensions per size(9 sizes)

Size	L	H	OD	Ok	Og	b	Weight
DN32	130 mm	110 mm	140 mm	100 mm	78 mm	18 mm	9 kg
DN40	140 mm	160 mm	150 mm	110 mm	88 mm	18 mm	13 kg
DN50	150 mm	160 mm	165 mm	125 mm	102 mm	18 mm	19 kg
DN65	170 mm	170 mm	185 mm	145 mm	122 mm	18 mm	29 kg
DN80	180 mm	210 mm	200 mm	160 mm	138 mm	20 mm	40 kg
DN100	190 mm	240 mm	220 mm	180 mm	158 mm	20 mm	55 kg
DN125	200 mm	280 mm	250 mm	210 mm	188 mm	22 mm	80 kg
DN150	210 mm	330 mm	285 mm	240 mm	212 mm	22 mm	120 kg
DN200	230 mm	400 mm	340 mm	295 mm	268 mm	24 mm	175 kg

Actuation options

manual lever

Features

Two-piece body construction
Full bore design providing unrestricted flow
PTFE body seats
Stainless steel ball and stem
Manual lever operation
Flanged end connections to DIN EN 1092-1

Description

A two-piece design full bore flanged ball valve rated to PN16. The valve body and bonnet are constructed from GG25 cast iron, with an SS420/SS304 stainless steel ball and PTFE body seats. Available in sizes DN32 to DN200 with flanged end connections to DIN EN 1092-1.
