Butterfly Valve

Flanged Type Butterfly Valve

Model: VFKF-16

Debug Β· supplier source (internal only)

Supplier product page β†—Supplier datasheet PDF β†—EFC datasheet PDF β†—supplier: visvana Β· ref: 107

Specifications

Confirmed at quote
Size Range
DN50-DN600
Pressure Class
PN16
Standards
EN 558 Serie 13, DIN 3202-F16, BS 5155, DIN EN ISO 5211, DIN 3337, EN 1092, ASME B16.5, JIS B2220
End connection
Flanged (EN 1092 PN6 / PN10 / PN16, ASME B16.5 Class 150, JIS B2220 5K / 10K)
Face-to-face
EN 558 Serie 13 / DIN 3202-F16

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50DN65DN80DN100DN125DN150DN200DN250DN300DN350DN400DN450DN500DN600

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
seat
shaft
bushing
o ring

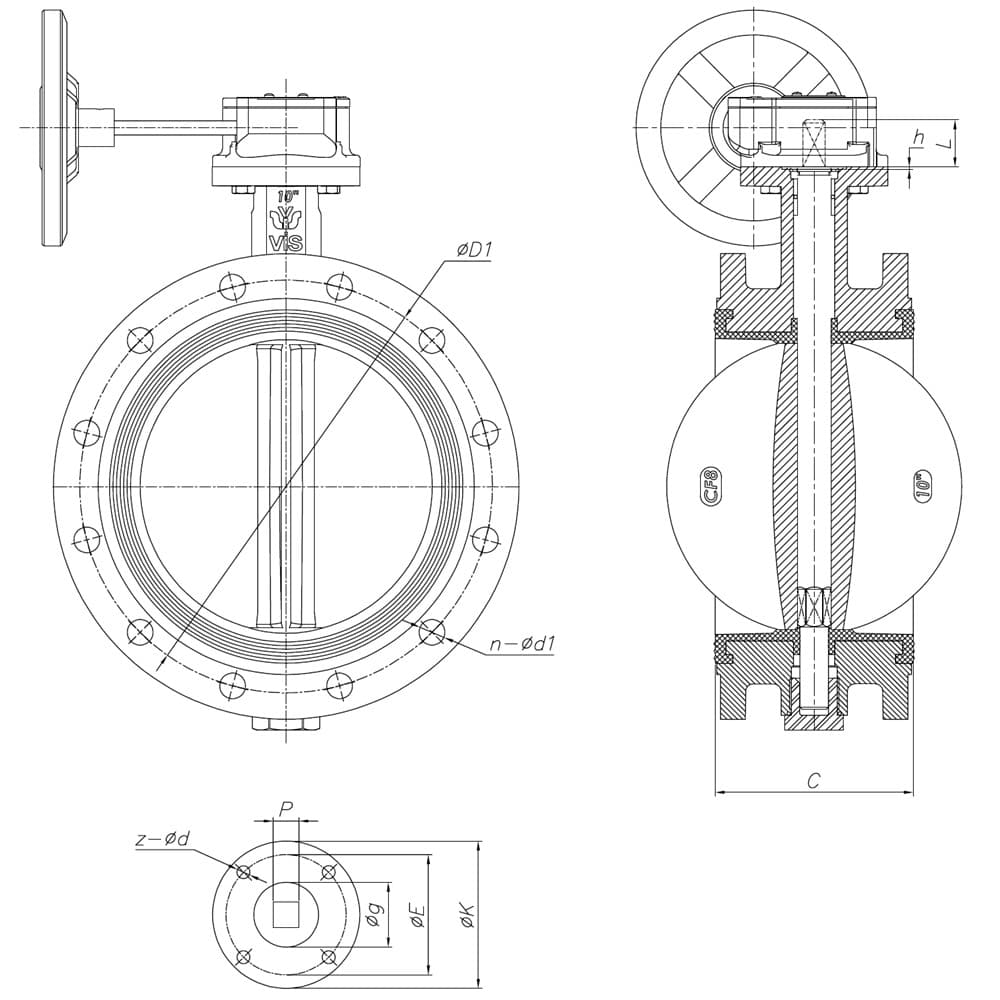

Dimensions per size(14 sizes)
SizeCWeight
DN50108 mm8 kg
DN65112 mm9 kg
DN80114 mm11 kg
DN100127 mm13 kg
DN125140 mm17 kg
DN150152 mm23 kg
DN200165 mm32 kg
DN250178 mm50 kg
DN300190 mm65 kg
DN350216 mm95 kg
DN400222 mm130 kg
DN450229 mm150 kg
DN500267 mm200 kg
DN600β€”300 kg

Actuation options

manual leverpneumatic double-actingpneumatic single-actingelectric actuatormanual gearbox

Description

A flanged type butterfly valve rated to a maximum of PN16, available in sizes DN50 to DN600. The valve features a concentric disc design with elastomeric or PTFE seat options and multiple body and disc material choices. It is compatible with EN 1092-1, ASME B16.5, and JIS B2220 flange standards.
