LUG Type Butterfly Valve

Name: LUG Type Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-104
Availability: InStock

Model: VLKV-16

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 104

Specifications

Confirmed at quote

Size Range: DN50-DN600
Pressure Class: PN16
Standards: DIN 3337, ISO 5752/20-5, DIN EN 558-1/20, ISO 5211/1, DIN EN 1092-2, BS 4504, CLASS 150
End connection: Lug type

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
seat
shaft
bushing
o ring

Dimensions per size(14 sizes)

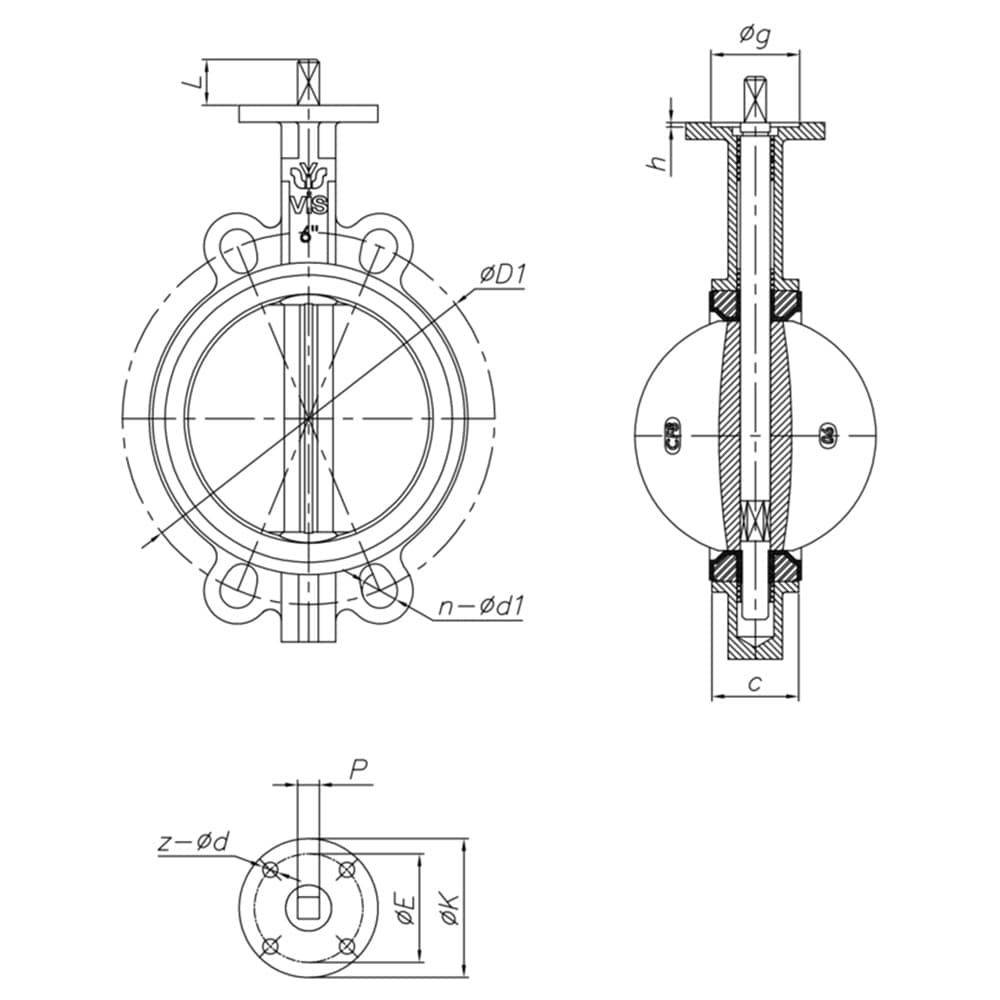

Size	C	ØK	ØE	Øg	L	P	Weight
DN50	43 mm	65 mm	50 mm	35 mm	32 mm	9 mm	4.6 kg
DN65	43 mm	65 mm	50 mm	35 mm	32 mm	9 mm	5.2 kg
DN80	46 mm	65 mm	50 mm	35 mm	32 mm	11 mm	6.8 kg
DN100	52 mm	90 mm	70 mm	55 mm	32 mm	14 mm	8.5 kg
DN125	52 mm	90 mm	70 mm	55 mm	32 mm	14 mm	10.5 kg
DN150	56 mm	90 mm	70 mm	55 mm	32 mm	17 mm	12.5 kg
DN200	60 mm	125 mm	102 mm	70 mm	45 mm	22 mm	20.2 kg
DN250	68 mm	125 mm	102 mm	70 mm	45 mm	22 mm	29.5 kg
DN300	68 mm	125 mm	102 mm	70 mm	45 mm	27 mm	46.5 kg
DN350	102 mm	175 mm	140 mm	100 mm	46 mm	27 mm	71 kg
DN400	114 mm	175 mm	140 mm	100 mm	51 mm	36 mm	107 kg
DN450	127 mm	210 mm	165 mm	130 mm	64 mm	36 mm	140 kg
DN500	154 mm	210 mm	165 mm	130 mm	70 mm	36 mm	186 kg
DN600	154 mm	210 mm	165 mm	130 mm	70 mm	36 mm	267 kg

Features

Lug-type body allowing end-of-line service
Top flange drilling to DIN EN ISO 5211 for actuator mounting
Stem dimensions to DIN 3337
Compatible with EN 1092-1 (PN6, PN10, PN16), ASME B16.5 Class 150, and JIS B2220 (5K, 10K) flanges
Multiple seat elastomer options to suit varying media

Description

A lug-type butterfly valve rated to a maximum of PN16, available in sizes DN50 to DN600. The valve features a concentric disc design with a range of body and disc material options. Face-to-face dimensions conform to EN 558 Series 20, DIN 3202-K1, and API 609.
