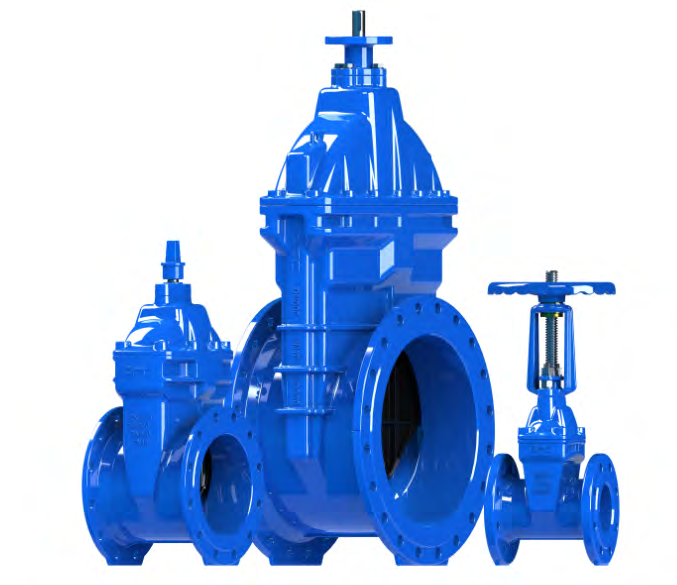

RSV Gate Valve - Bevel Gear Operated

Name: RSV Gate Valve - Bevel Gear Operated
Brand: Euro Flow Control
SKU: EFC-380
Availability: InStock

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN300-DN600
Pressure Class: PN10 / PN16
Standards: EN 1074-2
End connection: EN 1092-2 flange

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN300 DN350 DN400 DN450 DN500 DN600

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
wedge
stem
bushing
gasket
bevel gear
guide
hex bolts
o rings
wedge nut

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN10	-10°C	10 bar
PN10	80°C	10 bar
PN16	-10°C	16 bar
PN16	80°C	16 bar

Dimensions per size(11 sizes)

Size	model_no	L	H	OB	OD_PN10	OK_PN10	c	OD_PN16	OK_PN16	Weight
DN50	GBCX-0050	178 mm	335 mm	99 mm	165 mm	125 mm	18 mm	—	—	—
DN65	GBCX-0065	190 mm	375 mm	118 mm	185 mm	145 mm	18 mm	—	—	—
DN80	GBCX-0080	203 mm	415 mm	132 mm	200 mm	160 mm	18 mm	—	—	—
DN100	GBCX-0100	229 mm	450 mm	156 mm	220 mm	180 mm	18 mm	—	—	—
DN125	GBCX-0125	254 mm	485 mm	184 mm	250 mm	210 mm	18 mm	—	—	—
DN150	GBCX-0150	267 mm	525 mm	211 mm	285 mm	240 mm	18 mm	—	—	—
DN200	GBCX-0200	292 mm	600 mm	266 mm	340 mm	295 mm	18 mm	—	—	—
DN250	GBCX-0250	330 mm	665 mm	319 mm	395 mm	350 mm	19 mm	405 mm	355 mm	—
DN300	GBCX-0300	356 mm	745 mm	370 mm	445 mm	400 mm	21 mm	460 mm	410 mm	—
DN350	GBCX-0350	381 mm	975 mm	429 mm	505 mm	460 mm	26.5 mm	520 mm	470 mm	—
DN400	GBCX-0400	406 mm	1055 mm	480 mm	565 mm	515 mm	28 mm	580 mm	525 mm	—

Technical drawings(1 page)

Actuation options

manual gearboxmanual handwheelmanual capbare stemelectric

Approvals

WRASFM ApprovedUL ListedISO 9001

Features

The gearbox-operated RSV is specified for large diameter valves where operating torque exceeds practical handwheel limits and for valves that must be operable under full differential pressure
The bevel gearbox significantly reduces the torque required at the operating nut and can be extended for operation from surface level
Required for all gate valves DN300 and above in most specifications

Description

Gearbox operated for large diameter and high-torque duty. The gearbox-operated RSV is specified for large diameter valves where operating torque exceeds practical handwheel limits and for valves that must be operable under full differential pressure. The bevel gearbox significantly reduces the torque required at the operating nut and can be extended for operation from surface level. Required for all gate valves DN300 and above in most specifications.
