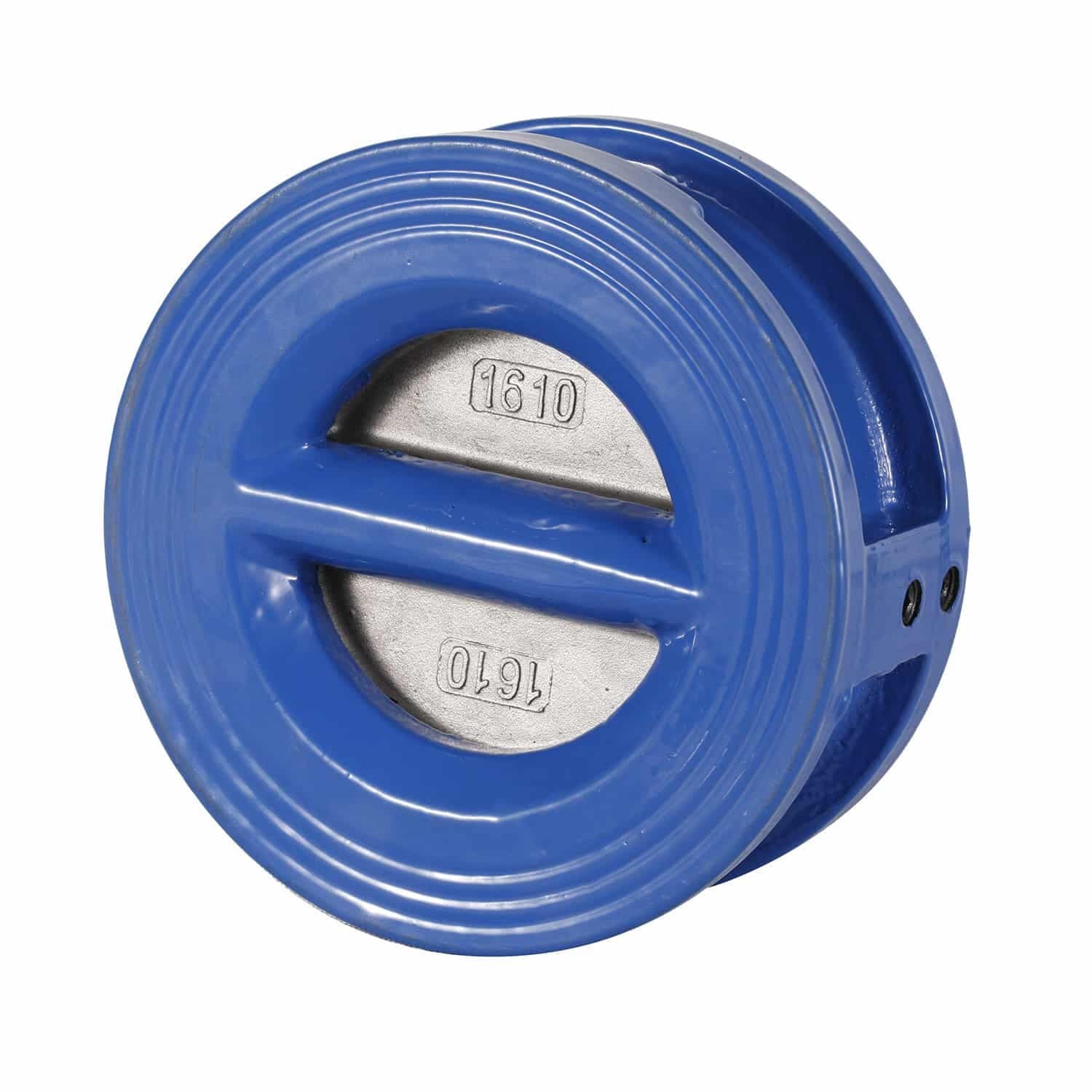

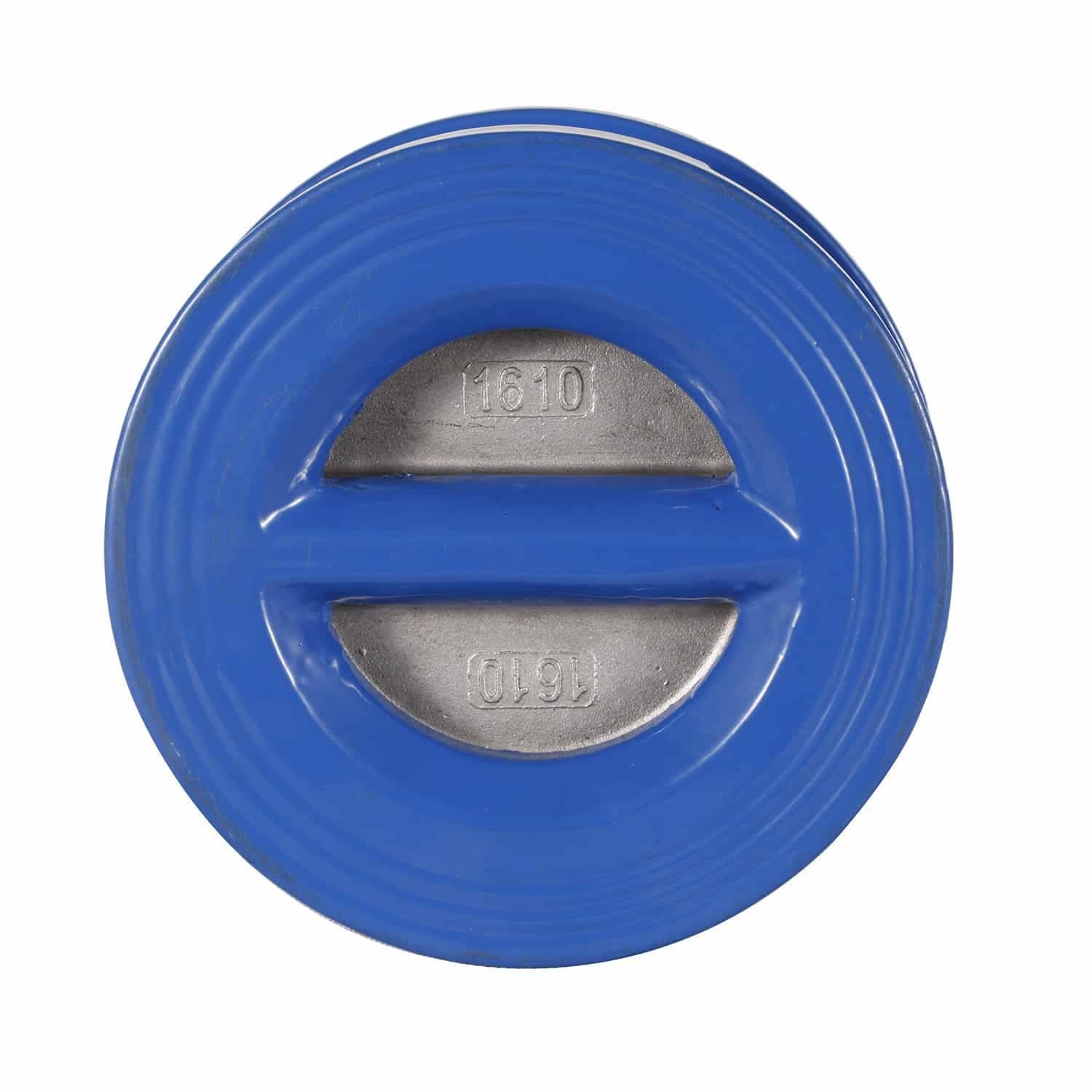

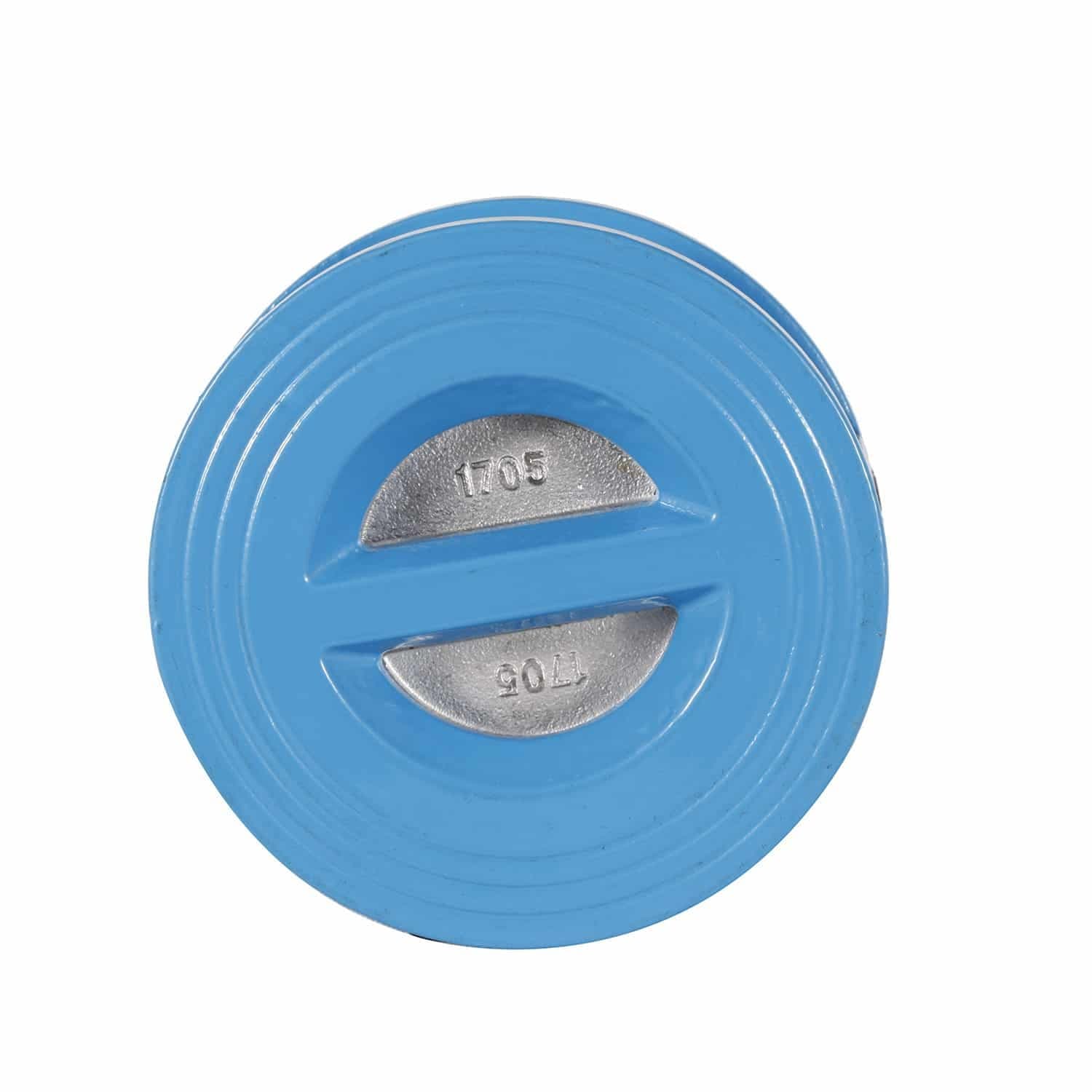

Dual Plate Wafer Check Valve

Name: Dual Plate Wafer Check Valve
Brand: Euro Flow Control
SKU: EFC-263
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: watts · ref: 263

Specifications

Confirmed at quote

Size Range: DN50-DN800
Pressure Class: PN10/PN16
Standards: API 594, API609, BS5155, DIN3202, ISO5752, API 598, ISO5211, DIN PN10/16/25
End connection: Wafer type

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600 DN700 DN800

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
disc
seat
stem
spring
body bearing
body seat
eye bolt
hinge pin
plate
plug
spring bearing
stop pin

Dimensions per size(16 sizes)

Size	B	E	DIN_PN10_16	ANSI_150	JIS_10K	Weight
DN50	43 mm	66 mm	107 mm	102 mm	101 mm	—
DN65	46 mm	86 mm	127 mm	121 mm	121 mm	—
DN80	64 mm	95 mm	142 mm	133 mm	131 mm	—
DN100	64 mm	118 mm	162 mm	171 mm	156 mm	—
DN125	70 mm	146 mm	192 mm	193 mm	187 mm	—
DN150	76 mm	174 mm	218 mm	219 mm	217 mm	—
DN200	89 mm	225 mm	273 mm	276 mm	267 mm	—
DN250	114 mm	266 mm	328 mm	336 mm	330 mm	—
DN300	114 mm	311 mm	null mm	406 mm	375 mm	—
DN350	127 mm	361 mm	null mm	448 mm	420 mm	—
DN400	140 mm	411 mm	null mm	511 mm	483 mm	—
DN450	152 mm	451 mm	null mm	546 mm	538 mm	—
DN500	152 mm	506 mm	null mm	603 mm	593 mm	—
DN600	178 mm	625 mm	null mm	714 mm	697 mm	—
DN700	229 mm	721 mm	809 mm	828 mm	807 mm	—
DN800	241 mm	826 mm	916 mm	936 mm	917 mm	—

Operating media

Fresh waterSewageSea waterAirVapourFoodMedicineOilsAcidsAlkalis

Actuation options

manualworm gearpneumaticelectric

Approvals

Lloyd's Register (LR) type approvalECM (Ente Certificazione Macchine)ISO certifiedEAC (Eurasian Conformity)CE markedBureau Veritas certifiedACS (Attestation de Conformité Sanitaire)WRAS Approved Product

Features

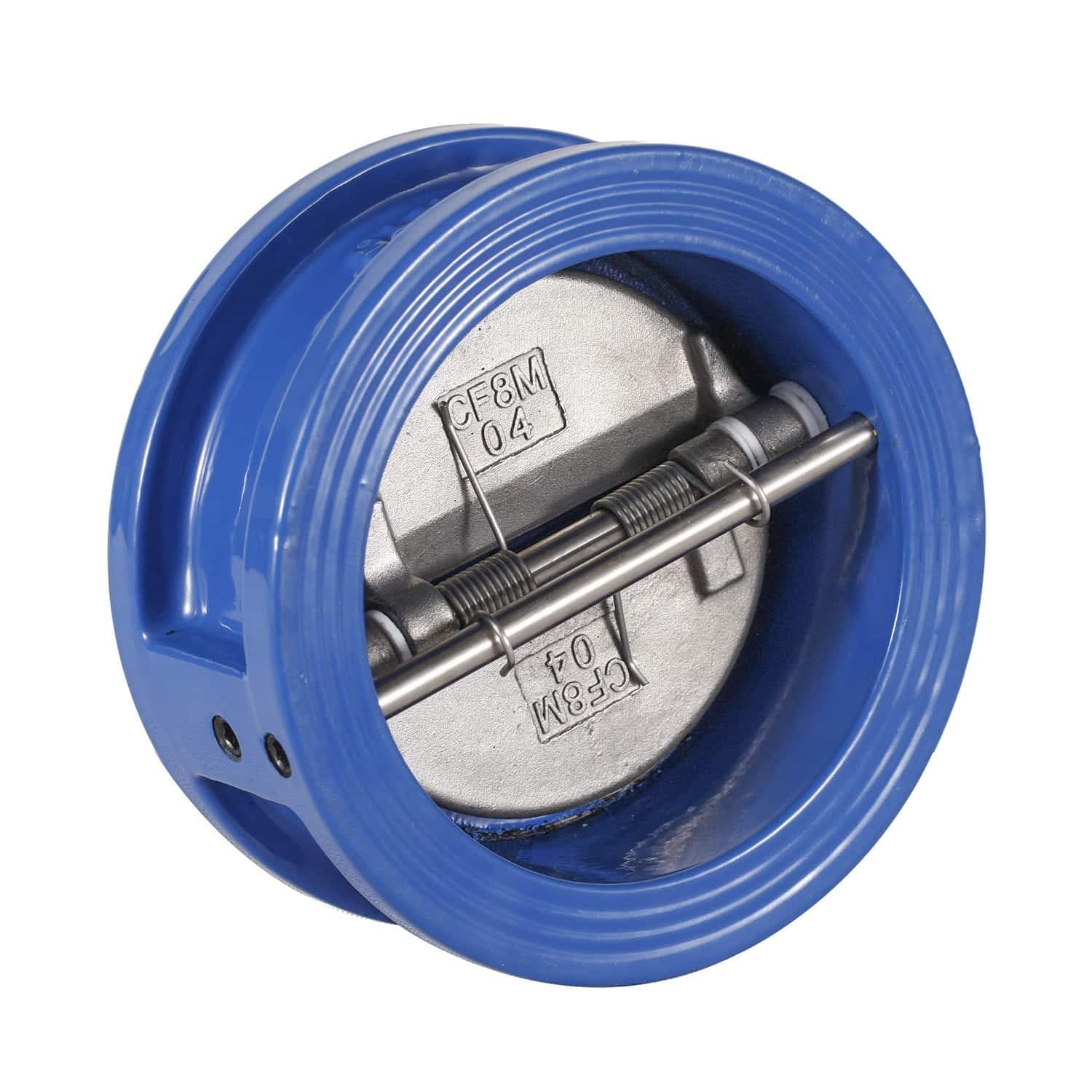

Spring-loaded dual plates open under forward flow pressure and close automatically on flow reversal
Wafer-style body installs between standard flanges
Low-profile, lightweight design
Pressure-tested before delivery

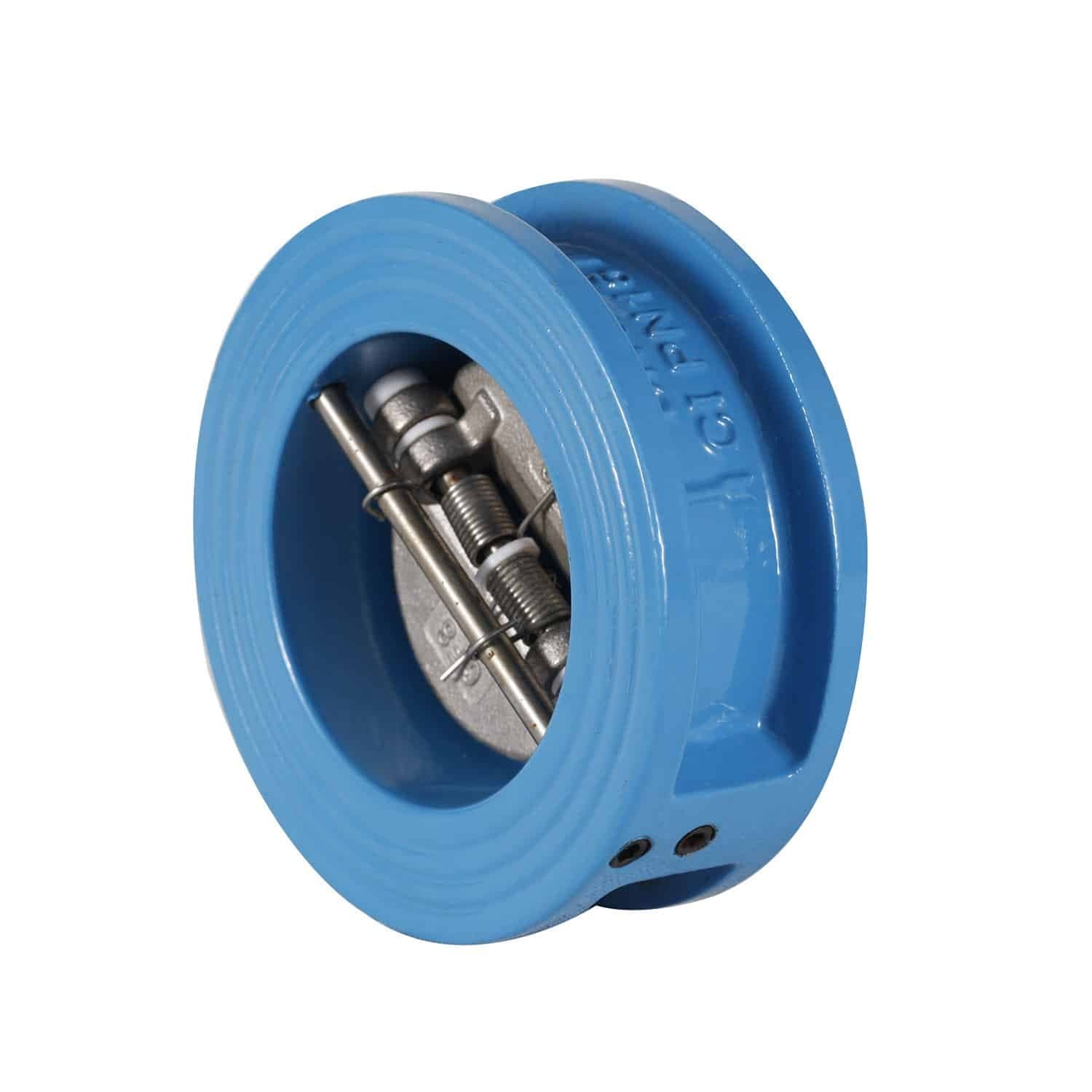

Dual-plate (twin disc) wafer check valve construction
Spring-loaded dual discs for rapid closure
Rubber-lined body (elastomer seat integral to body)
Central hinge pin with return springs
Wafer pattern — fits between flanges
Lifting eye bolt on body (part 1 in diagram)
Dimensions shown: ØA (overall outer diameter), ØE (flange bore/seat diameter), B (face-to-face length)
Flow direction indicated on section drawing
Part 10 identified as body/shell in section A-A

Notes

Operating mode: manual, worm gear, pneumatic, electric, etc.
Products hold up to 10 international authoritative certification certificates

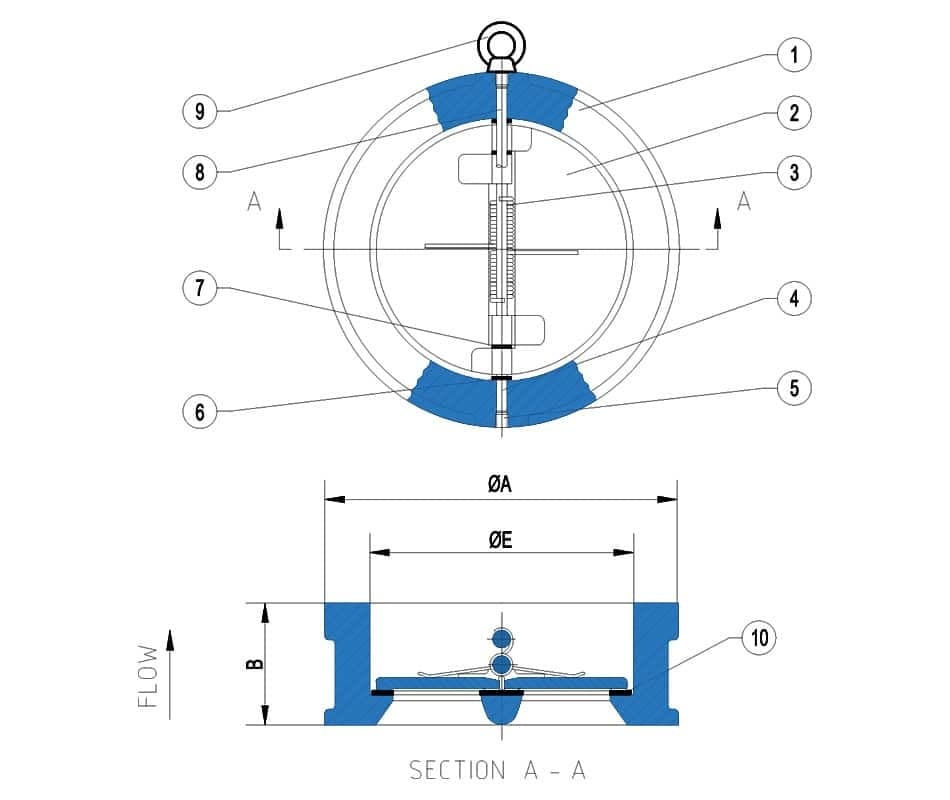

Diagram: Image 6: Front elevation and Section A-A of a dual-plate wafer check valve. Front view shows 10 numbered parts including: (1) lifting eye, (2) upper hinge pin retainer, (3) disc retainer/clip, (4) lower hinge pin retainer, (5) body, (6) elastomer seat/liner, (7) spring, (8) disc, (9) body outer ring. Section A-A shows key external dimensions ØA (overall diameter), ØE (bore diameter), and B (face-to-face length), with flow direction arrow.

Description

A dual-plate wafer-type check valve with two spring-loaded plates that open under forward flow pressure and close automatically when flow stops or reverses. The wafer-style body installs between standard flanges without major pipe modifications. Available in cast iron, ductile iron, carbon steel, and stainless steel construction.
