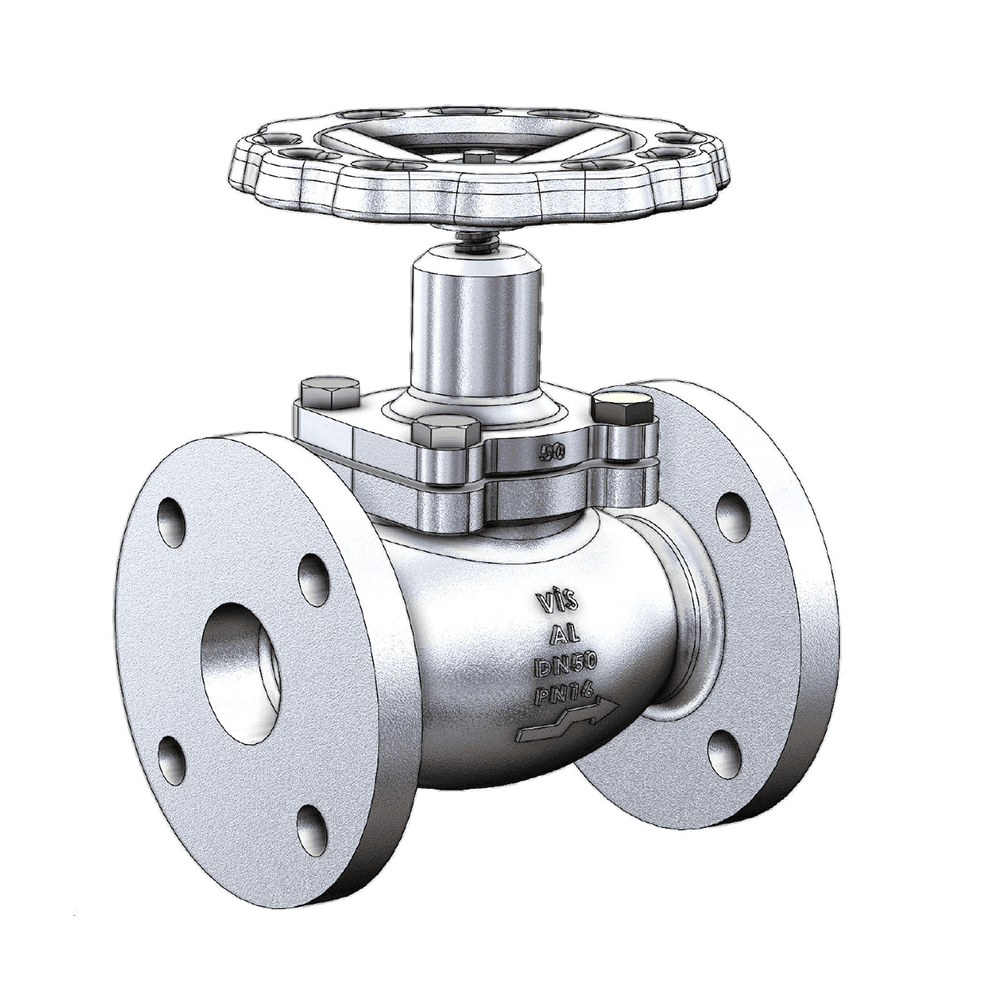

Aluminum Straight Globe Valve
Model: VGSD-16
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN100
- Pressure Class
- PN16
- Standards
- VisVana Design (Short Pattern), EN 12266, EN 1092 (Flange Ends)
- End connection
- Flange Ends (EN 1092)
- Face-to-face
- VisVana Design
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- gasket
- o ring
- handwheel
- other.bolt
- other.disc nut
Dimensions per size(9 sizes)
| Size | L | H | C | D | K | Weight |
|---|---|---|---|---|---|---|
| DN15 | 120 mm | 150 mm | 120 mm | 95 mm | 65 mm | โ |
| DN20 | 120 mm | 155 mm | 120 mm | 105 mm | 75 mm | โ |
| DN25 | 140 mm | 170 mm | 140 mm | 115 mm | 85 mm | โ |
| DN32 | 150 mm | 185 mm | 140 mm | 140 mm | 100 mm | โ |
| DN40 | 155 mm | 190 mm | 140 mm | 150 mm | 110 mm | โ |
| DN50 | 180 mm | 200 mm | 160 mm | 165 mm | 125 mm | โ |
| DN65 | 200 mm | 245 mm | 180 mm | 185 mm | 145 mm | โ |
| DN80 | 240 mm | 290 mm | 200 mm | 200 mm | 160 mm | โ |
| DN100 | 270 mm | 315 mm | 225 mm | 220 mm | 180 mm | โ |
Actuation options
Features
- Short pattern design
- SDNR (Screw Down Non Return) type option available
- Aluminium alloy body, bonnet, disc and handwheel
- Stainless steel stem (SS304)
- Klingerite gasket sealing
- NBR O-ring
Description
A straight-pattern globe valve constructed primarily from aluminium alloy, rated to PN16. Available in sizes DN15 to DN100 with flanged ends to EN 1092, and tested to EN 12266. An SDNR (Screw Down Non Return) type option is available.
