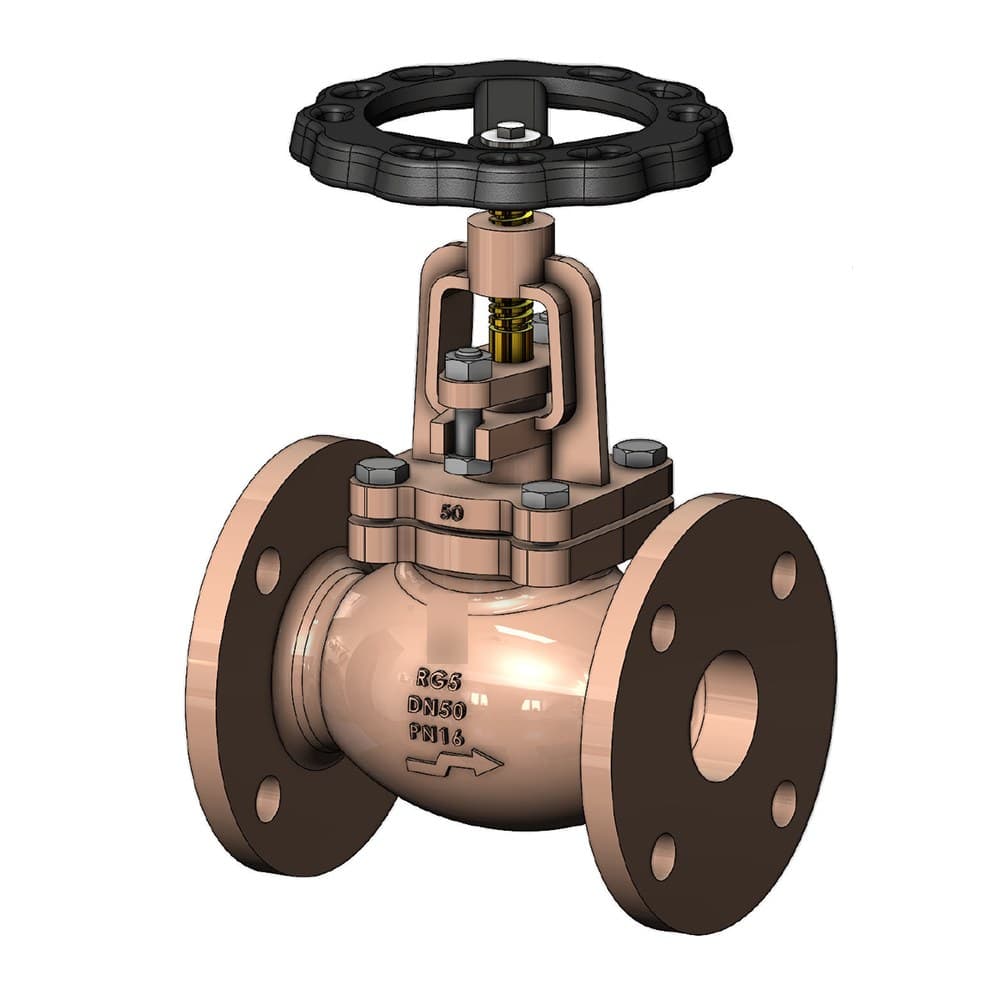

Straight Type SDNR Globe Valve 150Lb
Model: VKC-C150
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN400
- Pressure Class
- Class 150
- Standards
- API 598, ANSI B16.10, ANSI B16.5
- End connection
- Flanged (ANSI B16.5)
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- seat
- stem
- bushing
- packing
- gasket
- spring
- handwheel
- other.back seat
- other.gland flange
- other.handwheel nut
- other.nut
- other.packing nut
- other.stud

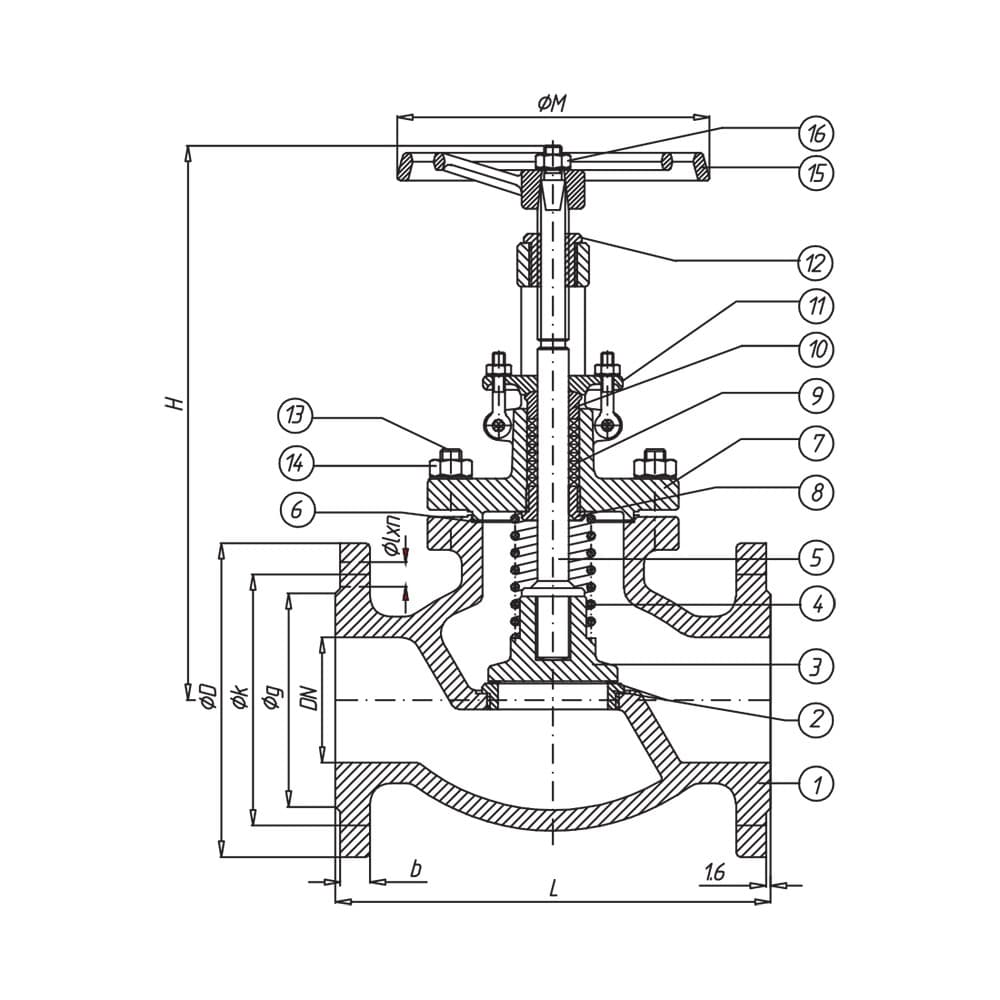

Dimensions per size(16 sizes)
| Size | L | H | OD | Ok | Og | b | OM | OIxn | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN15 | 108 mm | 185 mm | 89 mm | 60.5 mm | 35 mm | 10 mm | โ | โ | 4 kg |
| DN20 | 117 mm | 205 mm | 99 mm | 70 mm | 43 mm | 10.5 mm | 100 mm | โ | 4.5 kg |
| DN25 | 127 mm | 210 mm | 108 mm | 79.2 mm | 51 mm | 11.5 mm | โ | โ | 5.5 kg |
| DN32 | 140 mm | 220 mm | 117 mm | 89 mm | 64 mm | 13 mm | 140 mm | ร16x4 mm | 8.5 kg |
| DN40 | 165 mm | 240 mm | 127 mm | 98.6 mm | 73 mm | 14 mm | โ | โ | 12 kg |
| DN50 | 203 mm | 330 mm | 152.5 mm | 120.7 mm | 92 mm | 16 mm | 200 mm | โ | 18 kg |
| DN65 | 216 mm | 360 mm | 178 mm | 139.7 mm | 105 mm | 17.5 mm | โ | ร19x4 mm | 23 kg |
| DN80 | 241 mm | 375 mm | 190.5 mm | 152.4 mm | 127 mm | 19 mm | 250 mm | โ | 35 kg |
| DN100 | 292 mm | 435 mm | 229 mm | 190.5 mm | 157 mm | 24 mm | โ | ร19x8 mm | 45 kg |
| DN125 | 355.6 mm | 485 mm | 254 mm | 216 mm | 185.7 mm | 24 mm | 350 mm | โ | 70 kg |
| DN150 | 406.4 mm | 530 mm | 279.5 mm | 241.3 mm | 216 mm | 25.5 mm | โ | โ | 86 kg |
| DN200 | 495 mm | 615 mm | 343 mm | 298.5 mm | 270 mm | 28.5 mm | 450 mm | ร22x8 mm | 130 kg |
| DN250 | 622 mm | 770 mm | 406.5 mm | 362 mm | 324 mm | 30.2 mm | โ | โ | 205 kg |
| DN300 | 698.5 mm | 880 mm | 483 mm | 431.8 mm | 381 mm | 32 mm | 500 mm | ร25.5x12 mm | 325 kg |
| DN350 | 787 mm | 1100 mm | 533 mm | 476 mm | 413 mm | 35 mm | 650 mm | ร29x12 mm | 650 kg |
| DN400 | 914 mm | 1220 mm | 597 mm | 539.5 mm | 470 mm | 36.6 mm | โ | ร29x16 mm | 1050 kg |
Actuation options
Features
- Conical disc design
- Bolted bonnet (BB)
- Outside screw and yoke (OSY)
- Rising stem with handwheel
- Bolted gland arrangement (BG)
- Back seat provided
- Totally stainless steel or bronze discs optional in DN80 (3") and larger sizes
- Graphite packing
Description
Straight-pattern (SDNR) globe valve with conical disc and bolted bonnet (BB), designed for flanged end connections to Class 150. Features outside screw and yoke (OSY) with rising stem and handwheel (RS). Tested to API 598 with bolted gland arrangement (BG) per ANSI B16.10 face-to-face and ANSI B16.5 flange dimensions.
Smart find
Searches our product catalogue using your spec. Drop a PDF โ or multiple PDFs at once โ paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.Related Globe Valves
Globe ValveREF 4API Globe Valve
- Model
- โ
- Size
- NPS 2"-NPS 24"
- Pressure
- CLASS 150LB/CLASS 900LB
- Body
- ASTM A216 WCB+13CR / ASTM A216 WCB+STL / ASTM A351 CF8 / ASTM A351 CF8M
- Standards
- BS 1873, ASME B16.5
Adds to your quote request โ not a purchase. Refine size, pressure and material before submitting.
