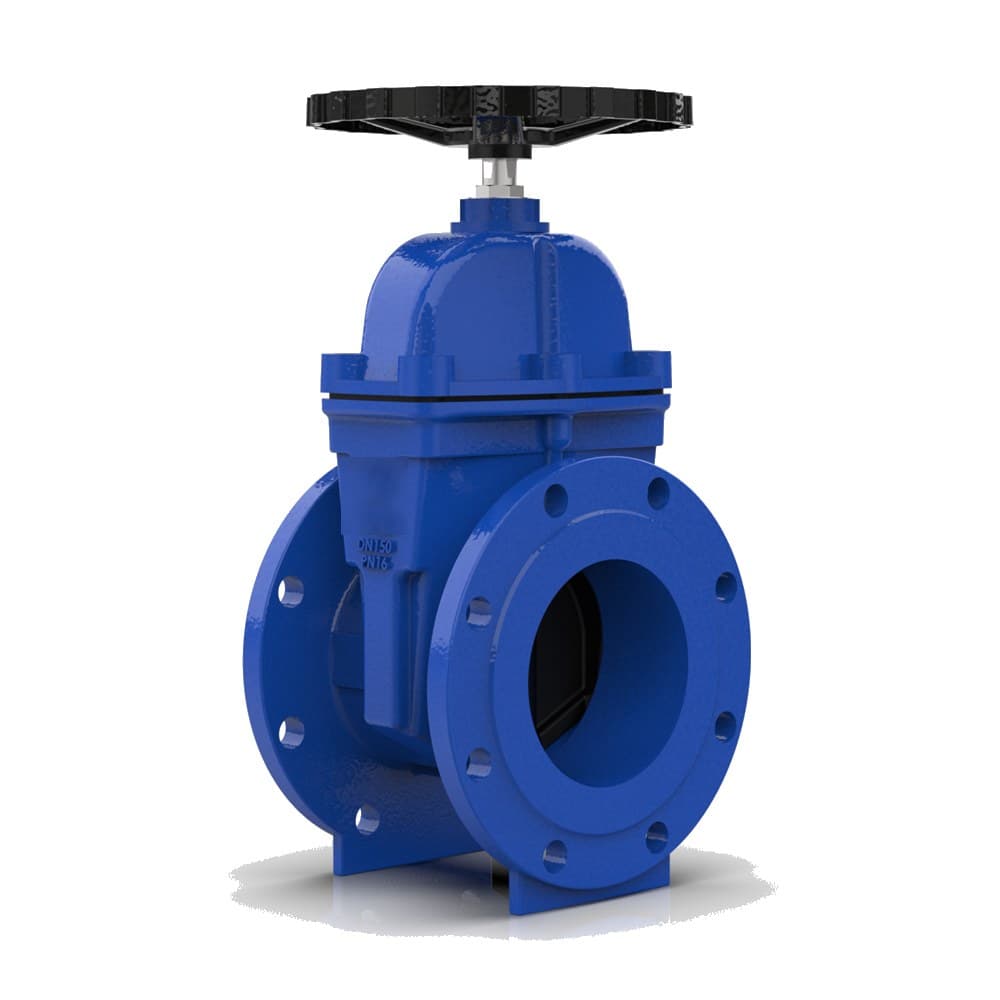

Resilient Seat Gate Valve
Model: VESV-10-16-25
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN300
- Pressure Class
- PN10/PN25
- Standards
- EN 1171, EN 558 Serie 15 (DN3202 F5), DIN 3352/3-F5, DIN EN 1092-1-2, DIN EN 1092-2/B, EN 12266
- End connection
- Flange ends (DIN EN 1092-2/B)
- Face-to-face
- EN 558 Serie 15 (DN3202 F5)
- Operating temperature
- -20....+120 oC
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- wedge
- stem
- gasket
- o ring
- handwheel
- other.bolt
- other.cleand gasket
- other.gasket 8
- other.gland
- other.stem nut
- other.yoke nut

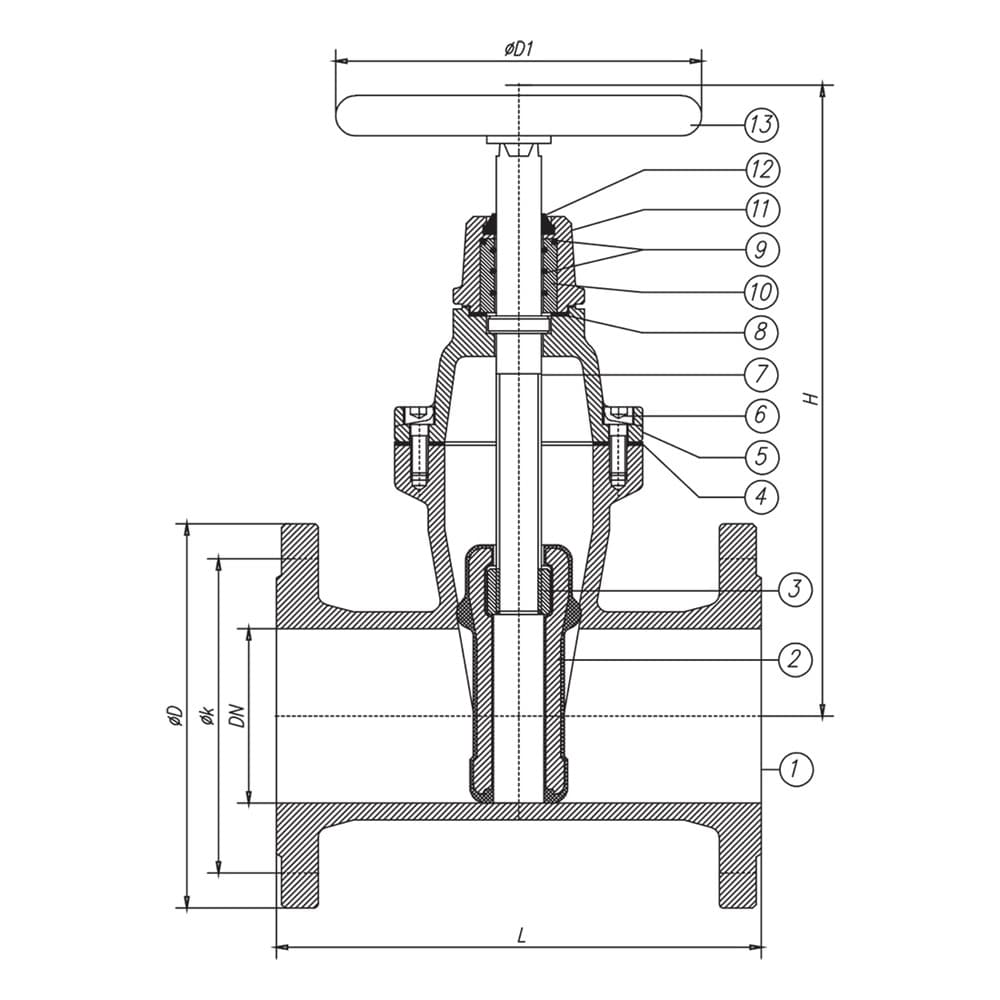

Dimensions per size(10 sizes)
| Size | L | H | D1 | Weight |
|---|---|---|---|---|
| DN40 | 240 mm | 230 mm | 200 mm | 9.3 kg |
| DN50 | 250 mm | 240 mm | 200 mm | 11.5 kg |
| DN65 | 270 mm | 285 mm | 200 mm | 16 kg |
| DN80 | 280 mm | 310 mm | 250 mm | 19.5 kg |
| DN100 | 300 mm | 345 mm | 250 mm | 27 kg |
| DN125 | 325 mm | 385 mm | 315 mm | 29 kg |
| DN150 | 350 mm | 460 mm | 315 mm | 46 kg |
| DN200 | 400 mm | 535 mm | 400 mm | 63 kg |
| DN250 | 450 mm | 635 mm | 500 mm | 94 kg |
| DN300 | 500 mm | 710 mm | 500 mm | 130 kg |
Features
- Elastomer-encapsulated wedge in EPDM or NBR
- Non-rising stem design with AISI 420 stainless steel stem
- PTFE stem nut for reduced operating torque
- Ductile iron body and bonnet (GGG-40)
- Available in PN10, PN16, and PN25 pressure ratings
- Flanged ends to DIN EN 1092-2/B
Description
A resilient seat gate valve with elastomer-encapsulated wedge, designed to EN 1171 and DIN 3352. Available in sizes DN40 to DN300 with pressure ratings PN10, PN16, and PN25. Fitted with flanged ends to DIN EN 1092-2/B and tested to EN 12266.
