Female thread hydraulic ball valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- 1/8"-2"
- Pressure Class
- 1000/7250
- Standards
- BSPT, BSPP, ISO9001, ENCE
- End connection
- Female thread
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- ball
- seat
- stem
- ball seat
- handle
- stem packing
- thrust washer
Operating media
Actuation options
Approvals
Features
- Floating ball design, quarter-turn operation
- Forged construction
- Reduced port (reduced bore)
- Female threaded end connections (NPT, BSPT, BSPP)
- Maximum working pressure 7250 PSI
- Temperature range -20ยฐC to 255ยฐC
- Multiple seat material options (PTFE, RPTFE, VITON, PPL, PEEK)
- Manual and remote/automatic operation capable
- OEM and ODM customisation available
- High-pressure block-body ball valve (้ซๅ็้)
- Model designation: BKH
- Size: DN20 / 3/4 NPT
- Pressure rating: PN320 (320 bar)
- Lever (handle) operated
- Three-piece block body construction visible from product photos
- Female NPT threaded end connections both sides
- Performance: Pressure rating PN320 (32 MPa / ~320 bar) โ cast on valve body, DN20 (3/4 NPT)
- Performance: Body material: A105 carbon steel โ cast on valve body
Notes
- Specified specification available upon request
- Free sample can be sent to test quality before placing an order
- Sample available: Yes, sample is free
- MOQ: 20 pcs
- Payment Term: 30% payment before production, the balance before shipment
- Customised: OEM, ODM

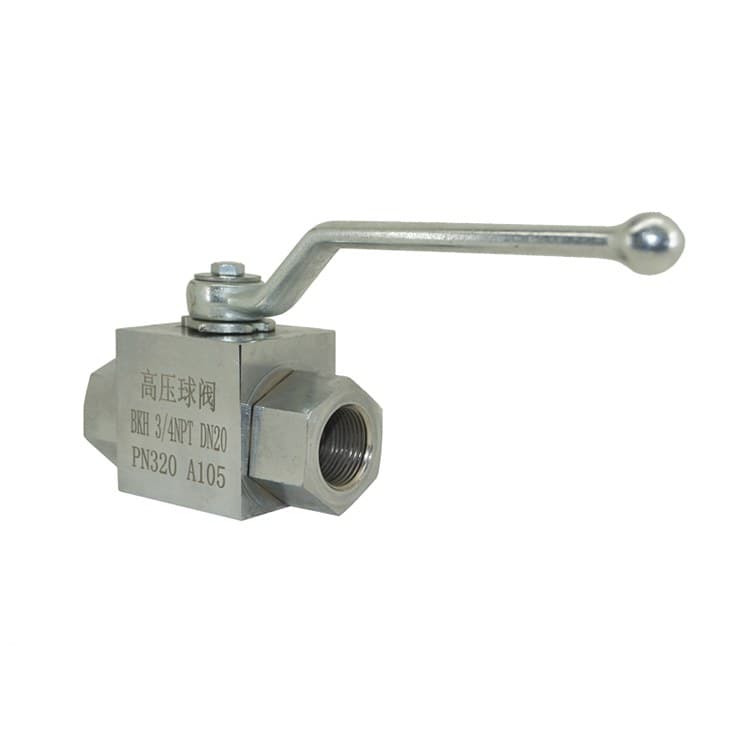

- Diagram: Images 1โ4: Four-angle product photographs of the same BKH high-pressure block-body ball valve, DN20 3/4 NPT, PN320, A105, showing block body, lever handle, and female NPT ports
Description
Female thread hydraulic ball valve Home Products Hydraulic Ball Valve Female thread hydraulic ball valve Female thread hydraulic ball valve Category Female thread hydraulic ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 7250 PSI . [email protected] Enquiry product description Company information What is the female thread hydraulic ball valve ? Female thread hydraulic ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 7250 PSI . Ball valves are durable, performing well after many cycles, and reliab
