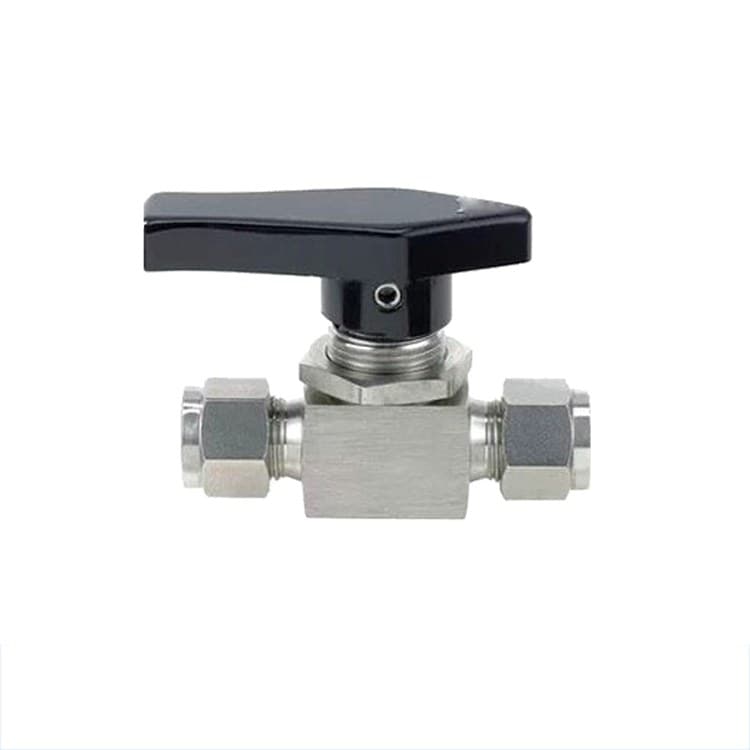

Double ferrules instrument ball valve
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- 1/8"-1"
- Pressure Class
- 1000 psi
- Standards
- BSPT, BSPP, ISO9001, ENCE
- End connection
- Double ferrule (compression) fitting
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- ball
- seat
- stem
- ball seat
- ferrule and nut
- handle
- pland nut
- stem packing
- thrust washer
- valve body
Operating media
Actuation options
Approvals
Features
- Full port bore
- Forged construction
- Double ferrule compression connection โ no torque transmitted to tubing during installation
- Easy to install, disconnect and retighten
- Quarter-turn operation
- Low fluid resistance
- Flow direction not restricted by installation orientation
- Low noise, low vibration operation
- OEM and ODM customisation available
- Tube compression (twin-ferrule) end connections
- Inline (2-way) ball valve configuration
- Quarter-turn T-bar handle operator
- Separate front ferrule, back ferrule, and nut visible โ compression fitting components supplied with valve
- Mixed end configurations available: tube-to-tube compression and tube-to-male-NPT/JIC compression
Notes
- Specified specification available upon request
- MOQ: 20 pcs
- Sample available: Yes, sample is free
- Payment Term: 30% payment before production, the balance before shipment
- Thread Type available: NPT, BSPT, BSPP
- Diagram: Image 4: Valve shown with compression fitting components (front ferrule, back ferrule, and union nut) displayed separately alongside the assembled valve body, illustrating the tube fitting assembly for one end
- Diagram: Image 9: Similar exploded-component view showing ferrule set and nut alongside valve with one compression and one male-threaded end
Description
Double ferrules instrument ball valve Home Products Instrumentation Ball Valve Double ferrules instrument ball valve Double ferrules instrument ball valve Category Double ferrules instrument ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 6000 PSI , the connection type is double ferrules. [email protected] Enquiry product description Company information What is the double ferrules instrument ball valve ? Double ferrules instrument ball vlave is a kind of valve which the opening and closing parts(ball) are driven by the valve stem , and around the ball valve axis for rotating movement of the valve .Max pressure could be up to 6000 PSI , the co
