WSTX Y-Strainer
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15โDN600
- Pressure Class
- PN10 / PN16
- Standards
- EN 13160
- End connection
- Flanged to EN 1092-2 / threaded BSP (small sizes)
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Available pressure classes
Pressure classes this product is rated to.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
- Body
- Screen
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN10 | -10ยฐC | 10 bar |
| PN10 | 80ยฐC | 10 bar |
| PN16 | -10ยฐC | 16 bar |
| PN16 | 80ยฐC | 16 bar |

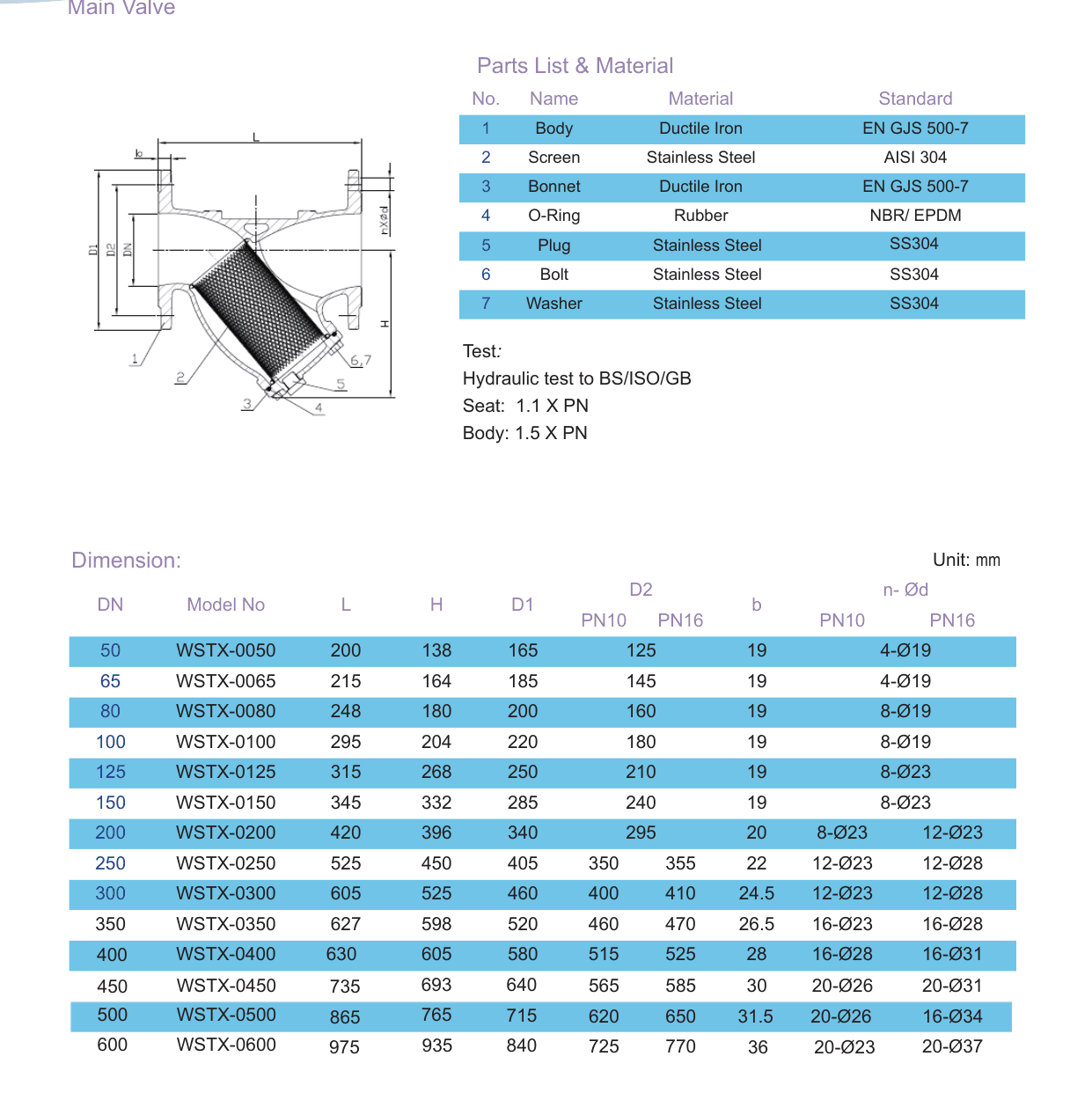

Dimensions per size(14 sizes)
| Size | L | H | D1 | D2_PN10 | b | D2_PN16 | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 200 mm | 138 mm | 165 mm | 125 mm | 19 mm | โ | โ |
| DN65 | 215 mm | 164 mm | 185 mm | 145 mm | 19 mm | โ | โ |
| DN80 | 248 mm | 180 mm | 200 mm | 160 mm | 19 mm | โ | โ |
| DN100 | 295 mm | 204 mm | 220 mm | 180 mm | 19 mm | โ | โ |
| DN125 | 315 mm | 268 mm | 250 mm | 210 mm | 19 mm | โ | โ |
| DN150 | 345 mm | 332 mm | 285 mm | 240 mm | 19 mm | โ | โ |
| DN200 | 420 mm | 396 mm | 340 mm | 295 mm | 20 mm | โ | โ |
| DN250 | 525 mm | 450 mm | 405 mm | 350 mm | 22 mm | 355 mm | โ |
| DN300 | 605 mm | 525 mm | 460 mm | 400 mm | 24.5 mm | 410 mm | โ |
| DN350 | 627 mm | 598 mm | 520 mm | 460 mm | 26.5 mm | 470 mm | โ |
| DN400 | 630 mm | 605 mm | 580 mm | 515 mm | 28 mm | 525 mm | โ |
| DN450 | 735 mm | 693 mm | 640 mm | 565 mm | 30 mm | 585 mm | โ |
| DN500 | 865 mm | 765 mm | 715 mm | 620 mm | 31.5 mm | 650 mm | โ |
| DN600 | 975 mm | 935 mm | 840 mm | 725 mm | 36 mm | 770 mm | โ |
Approvals
Features
- The WSTX Y-strainer protects downstream valves, meters and equipment from pipeline debris
- The Y-body configuration minimises headloss while directing flow through a stainless steel mesh screen
- The removable blowdown plug allows the screen to be cleaned under pressure without removing the strainer from the pipeline
- Available in cast iron and ductile iron body materials with a range of mesh sizes from 0.5mm to 3mm
Description
Standard Y-strainer for waterworks and process protection. The WSTX Y-strainer protects downstream valves, meters and equipment from pipeline debris. The Y-body configuration minimises headloss while directing flow through a stainless steel mesh screen. The removable blowdown plug allows the screen to be cleaned under pressure without removing the strainer from the pipeline. Available in cast iron and ductile iron body materials with a range of mesh sizes from 0.5mm to 3mm.
