Control Valve
Part of the A900 modular system

A600 Solenoid Control Valve

Debug ยท supplier source (internal only)

Supplier product page โ†—EFC datasheet PDF โ†—supplier: afc ยท ref: 350

Specifications

Confirmed at quote
Size Range
DN50โ€“DN300
Pressure Class
PN16
Standards
EN 1074-5
End connection
Flanged PN16

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50DN65DN80DN100DN125DN150DN200DN250DN300

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

Body

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

ClassTemperatureMax pressure
PN25-10ยฐC25 bar
PN2580ยฐC25 bar

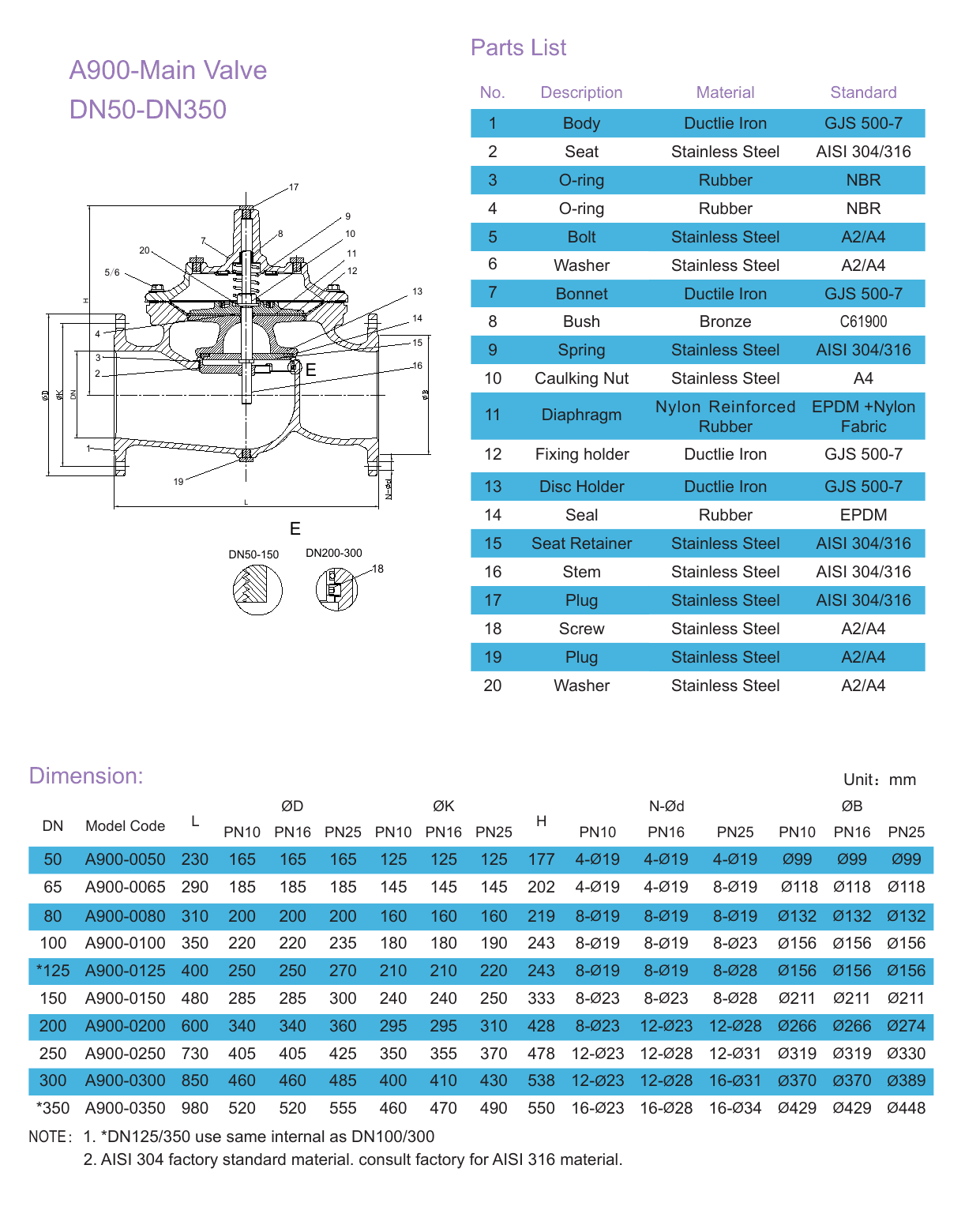

Dimensions per size(16 sizes)
SizeLHOD_PN10OK_PN10OB_PN10OD_PN25OK_PN25OB_PN25OK_PN16OB_PN16Weight
DN50230 mm177 mm165 mm125 mm99 mmโ€”โ€”โ€”โ€”โ€”โ€”
DN65290 mm202 mm185 mm145 mm118 mmโ€”โ€”โ€”โ€”โ€”โ€”
DN80310 mm219 mm200 mm160 mm132 mmโ€”โ€”โ€”โ€”โ€”โ€”
DN100350 mm243 mm220 mm180 mm156 mm235 mm190 mmโ€”โ€”โ€”โ€”
DN125400 mm243 mm250 mm210 mm156 mm270 mm220 mmโ€”โ€”โ€”โ€”
DN150480 mm333 mm285 mm240 mm211 mm300 mm250 mmโ€”โ€”โ€”โ€”
DN200600 mm428 mm340 mm295 mm266 mm360 mm310 mm274 mmโ€”โ€”โ€”
DN250730 mm478 mm405 mm350 mm319 mm425 mm370 mm330 mm355 mmโ€”โ€”
DN300850 mm538 mm460 mm400 mm370 mm485 mm430 mm389 mm410 mmโ€”โ€”
DN350980 mm550 mm520 mm460 mm429 mm555 mm490 mm448 mm470 mmโ€”โ€”
DN4001100 mm710 mm580 mm515 mm480 mm620 mm550 mm503 mm525 mmโ€”โ€”
DN4501200 mm720 mm640 mm565 mm530 mm670 mm600 mmโ€”585 mm548 mmโ€”
DN5001250 mm822 mm715 mm620 mm582 mm730 mm660 mmโ€”650 mm609 mmโ€”
DN6001450 mm885 mm840 mm725 mm682 mm845 mmโ€”โ€”770 mm720 mmโ€”
DN7001650 mm910 mm910 mm840 mm682 mm960 mm875 mmโ€”โ€”720 mmโ€”
DN8001850 mm1260 mm1025 mm950 mm901 mm1085 mm990 mm928 mmโ€”โ€”โ€”

Approvals

WRASISO 9001

Features

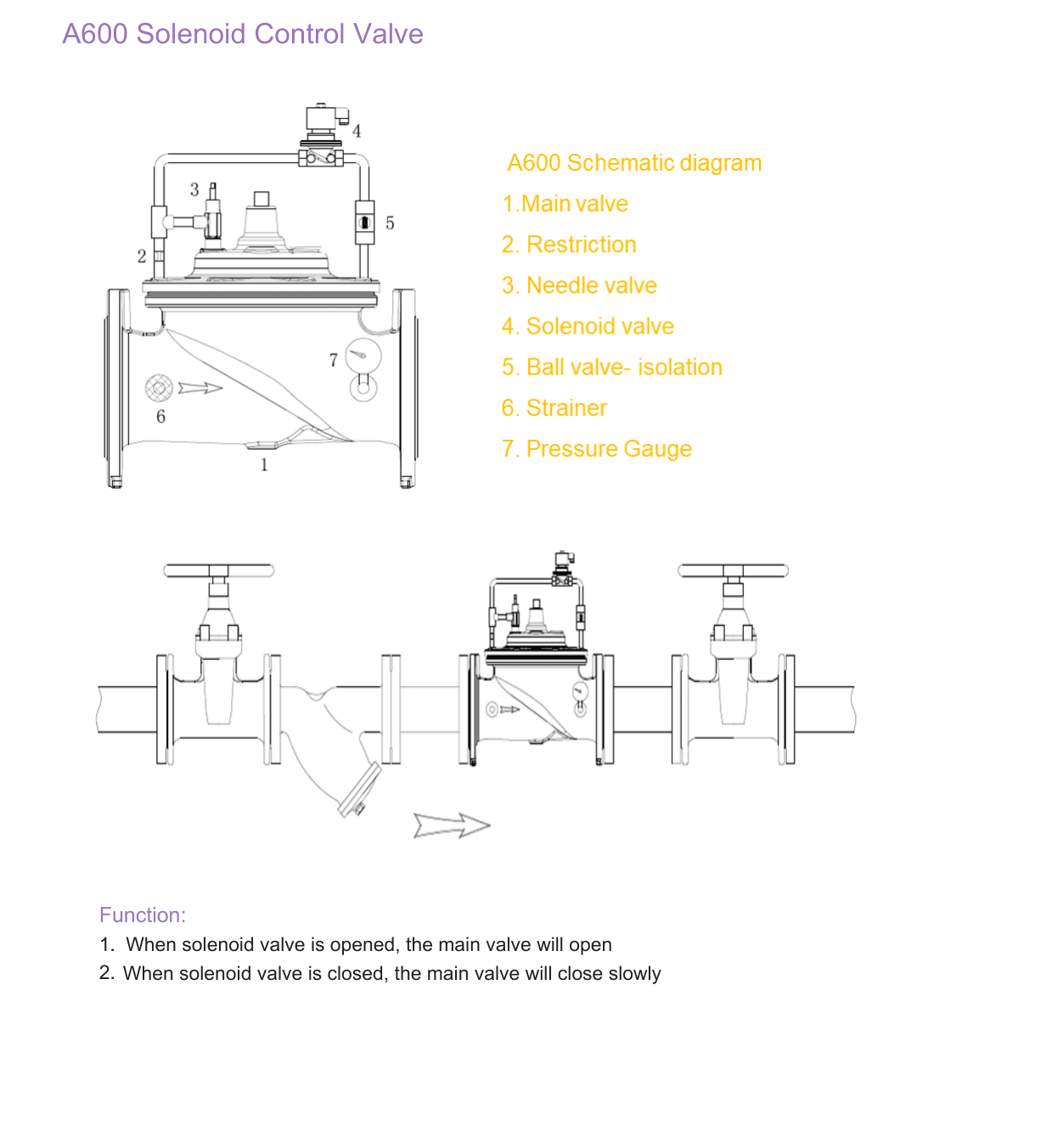

  • The A600 is a hydraulically operated control valve actuated by a solenoid pilot
  • A small solenoid valve switches the hydraulic pilot circuit to open or close the main valve on demand from a remote control system
  • Suitable for SCADA-controlled isolation, timed irrigation, on/off supply to reservoirs and emergency shutoff applications

Description

The A600 is a solenoid-actuated configuration of the A900 main valve body. A solenoid pilot valve switches the hydraulic pilot circuit to open or close the main valve on demand from a remote control signal. Suitable for SCADA-controlled isolation, timed irrigation, on/off supply to reservoirs and emergency shutoff applications. An on/off accelerator accessory can be added to the pilot circuit to increase stroke speed where faster response is required. The A900 body can be repiloted for modulating duty without body replacement.

Smart find

Searches our product catalogue using your spec. Drop a PDF โ€” or multiple PDFs at once โ€” paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.

A900 configurations

View full A900 system โ†’
This product is part of the A900 modular system. All configurations share the same hydraulically operated body: the control function is set by the pilot valve(s) attached. An existing A900 body in the field can be reconfigured for a different duty simply by swapping the pilot, without replacing the body.

A100 Modulating Float Control Valve

DN50โ€“DN300

A200 Pressure Reducing Valve

DN50โ€“DN600

A203 Pressure Reducing with Check Valve

DN50โ€“DN600

A300 Slow Control Check Valve

DN50โ€“DN600

A400 Flow Control Valve

DN50โ€“DN400

A500 Pressure Relief / Sustaining Valve

DN50โ€“DN600

A76D Pump Control Valve โ€“ Double Chamber

DN50โ€“DN600

A900 Automatic Control Valve (Main Valve)

DN50โ€“DN600

A10A Altitude Control Valve

DN50โ€“DN300

A10B Bi-Level Float Control Valve

DN50โ€“DN300

A14A Altitude with Rate of Flow Control Valve

DN50โ€“DN300

A204 Pressure Reducing Valve with Flow Limiter

DN50โ€“DN400

A205 Pressure Sustaining and Reducing Valve

DN50โ€“DN400

A206 Pressure Reducing Solenoid Control Valve

DN50โ€“DN400

A20B Pressure Reducing Valve โ€“ High Flow

DN200โ€“DN600

A2A5 Surge Anticipating Control Valve

DN50โ€“DN400

A506 Pressure Sustaining Valve with Solenoid Control

DN50โ€“DN400

A6DV Dual Solenoid Control Valve

DN50โ€“DN300

A7MD Pump Control Valve โ€“ Passive Protection

DN50โ€“DN400

A800 Pressure Differential Valve

DN50โ€“DN300

A900 Automatic Control Valve โ€“ Threaded

DN15โ€“DN50

R900 Main Valve โ€“ Reduced Bore

DN50โ€“DN400

Pilot assembly & accessories

Compatible accessories

Needle Valve

Adjusts response speed and damps oscillation in the pilot circuit

On-Off Accelerator

Speeds up valve stroke in solenoid-controlled configurations
