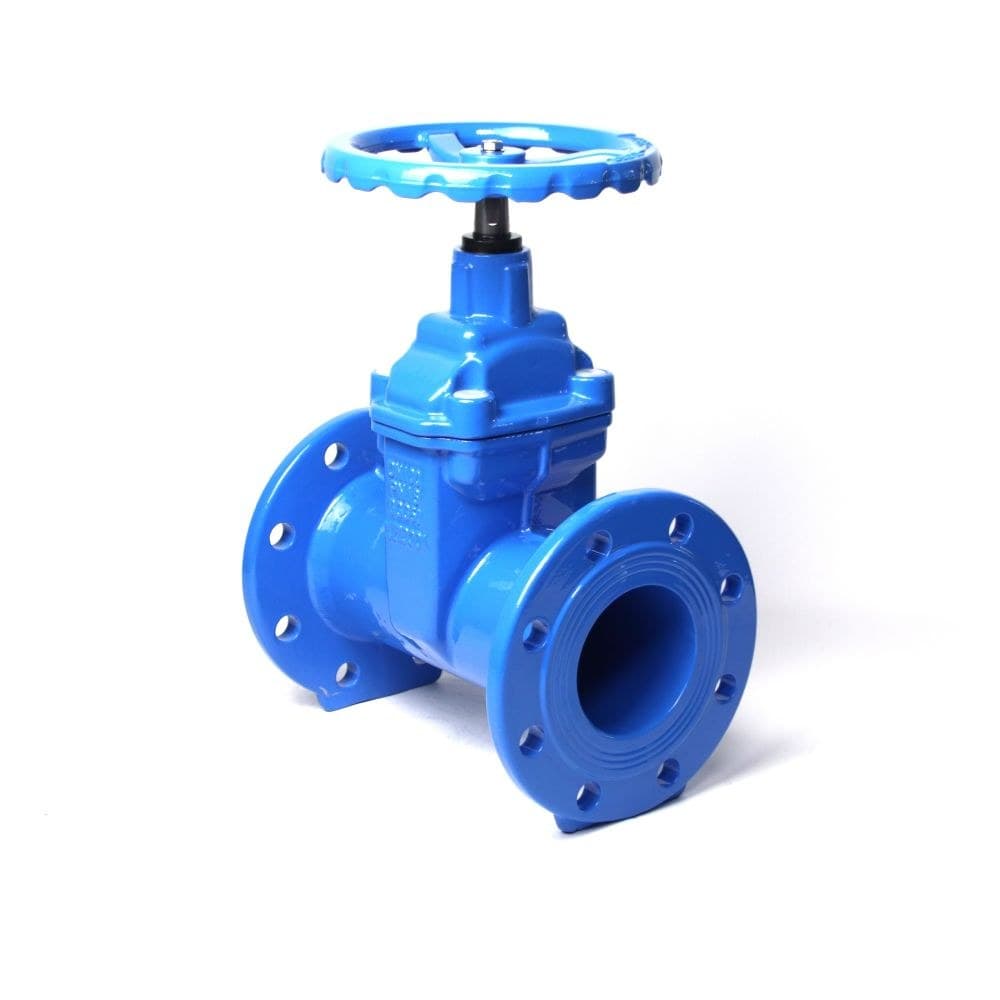

Resilient Seated Gate Valve

Name: Resilient Seated Gate Valve
Brand: Euro Flow Control
SKU: EFC-328
Availability: InStock

Debug · supplier source (internal only)

Supplier product page ↗EFC datasheet PDF ↗supplier: zd · ref: 328

Specifications

Confirmed at quote

Size Range: DN40-DN300
Pressure Class: PN10/PN25
Standards: EN-1074, BS5163, EN-12266-1 Class A, DIN-F4, DIN-F5, EN-1092-2, BS4504, DIN 3476-1, EN 14901
End connection: Flanged (EN-1092-2, BS4504)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
stem
o ring
bonnet bolts
bonnet gasket
disc core
dust cover
flat washer
handwheel bolt
handwheel cap
holding ring
stem nut
thrust nut
thrust washer

Dimensions per size(10 sizes)

Size	L_BS5163	L_DIN_F4	L_DIN_F5	handwheel_dia	H	flange_D_PN10_16	flange_K_PN10_16	flange_n_d_PN10_16	flange_B_PN10_16	flange_f_PN10_16	flange_D_PN25	flange_K_PN25	flange_n_d_PN25	flange_B_PN25	flange_f_PN25	switch_turns	closing_torque	Weight
DN40	165 mm	140 mm	240 mm	200 mm	215 mm	150 mm	110 mm	4-φ19	19 mm	3 mm	150 mm	110 mm	4-φ19	19 mm	3 mm	9	30 N.m	—
DN50	178 mm	150 mm	250 mm	200 mm	215 mm	165 mm	125 mm	4-φ19	19 mm	3 mm	165 mm	125 mm	4-φ19	19 mm	3 mm	9	40 N.m	—
DN65	190 mm	170 mm	270 mm	200 mm	250 mm	185 mm	145 mm	4-φ19	19 mm	3 mm	185 mm	145 mm	8-φ19	19 mm	3 mm	10	50 N.m	—
DN80	203 mm	180 mm	280 mm	200 mm	275 mm	200 mm	160 mm	8-φ19	19 mm	3 mm	200 mm	160 mm	8-φ19	19 mm	3 mm	12	60 N.m	—
DN100	229 mm	190 mm	300 mm	254 mm	320 mm	220 mm	180 mm	8-φ19	19 mm	3 mm	235 mm	190 mm	8-φ23	19 mm	3 mm	12	80 N.m	—
DN125	254 mm	200 mm	325 mm	315 mm	365 mm	250 mm	210 mm	8-φ19	19 mm	3 mm	270 mm	220 mm	8-φ28	19 mm	3 mm	14.5	100 N.m	—
DN150	267 mm	210 mm	350 mm	315 mm	400 mm	285 mm	240 mm	8-φ23	19 mm	3 mm	300 mm	250 mm	8-φ28	20 mm	3 mm	17	120 N.m	—
DN200	292 mm	230 mm	400 mm	315 mm	495 mm	200 mm	160 mm	8-φ23/12-φ23	20 mm	3 mm	360 mm	310 mm	12-φ28	22 mm	3 mm	18.5	150 N.m	—
DN250	330 mm	250 mm	450 mm	406 mm	590 mm	220 mm	180 mm	12-φ23/12-φ28	22 mm	3 mm	425 mm	370 mm	12-φ31	24.5 mm	3 mm	23	200 N.m	—
DN300	356 mm	270 mm	500 mm	406 mm	670 mm	250 mm	210 mm	12-φ23/12-φ28	24.5 mm	4 mm	485 mm	430 mm	16-φ31	27.5 mm	4 mm	27	250 N.m	—

Operating media

waterwaste watersewageneutral liquids

Actuation options

manual handwheelsquare capextension spindle

Coatings

fusion bonded epoxy (potable water approved, DIN 3476-1, EN 14901)

Approvals

WRASACSCEISO 9001, ISO 14001, ISO 45001ICIM EN1074WRAS Approved Product

Features

Non-rising stem with brass nut type
Full bore design; bi-directional operation
Self-cleaning sealing surface on each opening cycle
Class A sealing (zero leakage) per EN-12266-1
100% factory hydraulic testing before dispatch
Bonnet sealing parts replaceable with valve fully open while in-line
O-ring bonnet gasket wraps each bolt to prevent corrosion
Bonnet bolts in galvanised carbon steel sealed with hot melt; other materials on request
Linear sealing design providing lower closing torque
Clockwise closing as standard; anticlockwise closing available on request
Fusion-bonded epoxy internal and external coating approved for potable water
Non-rising stem (NRS) gate valve with resilient-seated wedge gate
Flanged end connections
Handwheel or square cap operation
Optional open-close position indicator
Top flange with bare shaft for gearbox or electric actuator
Planet gear option available for DN250 and above

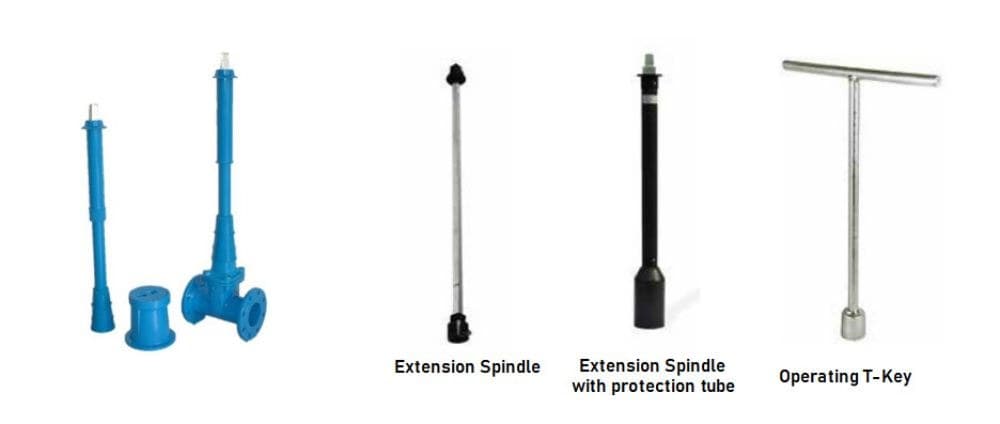

Extension spindle and telescopic extension spindle available as accessories
Extension spindle available with protection tube
Operating T-key accessory available
Spindle taper angle: 6 degrees
Gearbox mounting bracket bolt material: grade 8.8 stainless steel (inox)
Extension spindle installation: max. 50 degrees from vertical
17-part sectional construction (parts numbered 1–17 in diagram)
Performance: Max. torque (telescopic extension spindle) DN50-125: 200 Nm
Performance: Max. torque (telescopic extension spindle) DN150-400: 400 Nm
Performance: Max. torque (telescopic extension spindle) DN450-600: 500 Nm
Performance: Max. load on extension spindle: 200 kg
Performance: Planet gear DN250: gear ratio 3:1, valve torque 260 N.m (incl. 30% safety factor), output torque after gear 87 N.m, number of turns (valve) 23, number of turns after planet gear 69
Performance: Planet gear DN300: gear ratio 4:1, valve torque 325 N.m, output torque 81 N.m, turns (valve) 27, turns (after gear) 108
Performance: Planet gear DN350: gear ratio 4:1, valve torque 390 N.m, output torque 98 N.m, turns (valve) 30.5, turns (after gear) 122
Performance: Planet gear DN400: gear ratio 4:1, valve torque 455 N.m, output torque 114 N.m, turns (valve) 34.5, turns (after gear) 138
Performance: Planet gear DN450: gear ratio 4:1, valve torque 520 N.m, output torque 130 N.m, turns (valve) 28.0, turns (after gear) 112
Performance: Planet gear DN500: gear ratio 4:1, valve torque 585 N.m, output torque 146 N.m, turns (valve) 32.5, turns (after gear) 130
Performance: Planet gear DN600: gear ratio 4:1, valve torque 780 N.m, output torque 195 N.m, turns (valve) 34.5, turns (after gear) 138
Performance: Planet gear DN700: gear ratio 6:1, valve torque 910 N.m, output torque 152 N.m, turns (valve) 40, turns (after gear) 240
Performance: Planet gear DN800: gear ratio 6:1, valve torque 1040 N.m, output torque 173 N.m, turns (valve) 45, turns (after gear) 270
Performance: Planet gear DN1000: gear ratio 6:1, valve torque 1170 N.m, output torque 195 N.m, turns (valve) 63.5, turns (after gear) 381
Performance: Planet gear DN1200: gear ratio 6:1, valve torque 1056 N.m, output torque 176 N.m, turns (valve) 101, turns (after gear) 608

Notes

Anticlockwise closing upon request
Ductile Iron GJS 400-7 body/bonnet upon request
WRAS Approved EPDM disc, gasket and O-rings upon request
Alternative stem materials (AISI 431 / 304 / 316 / 316L / Duplex) upon request
Bronze / Dezincification Brass for thrust washer, holding ring, thrust nut, stem nut upon request
Stainless Steel AISI 316 handwheel bolt and flat washer upon request
Stainless Steel AISI 304 / 316 bonnet bolts upon request
Other bonnet bolt materials upon request

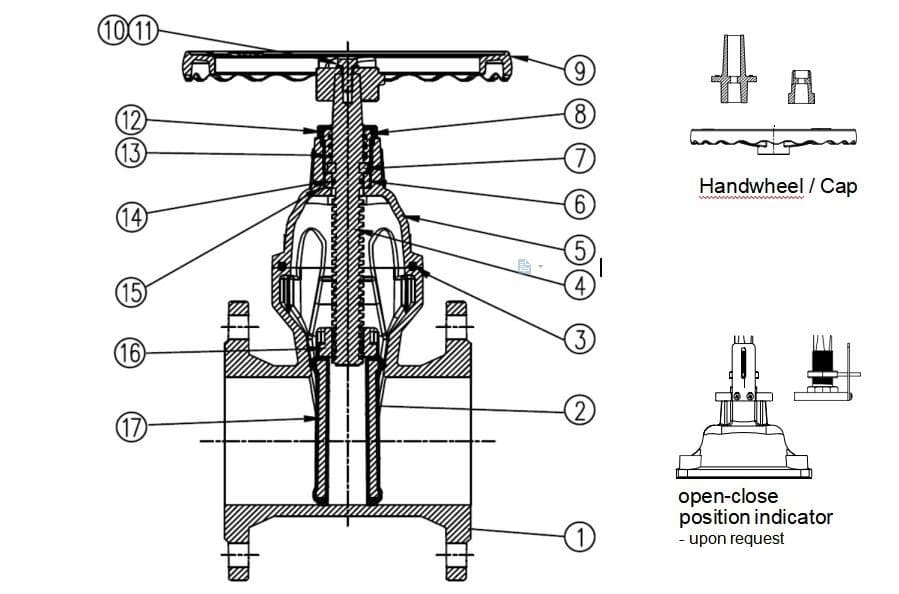

Diagram: Image index 4: Cross-sectional exploded diagram of resilient-seated gate valve showing 17 numbered component parts including body (1), gate/wedge (2), seat (3), O-rings (4,5), stem (6), bonnet (7), gland packing (8,12,13), stem nut (14), thrust bearing (15), bonnet bolts (16,17), handwheel (9), handwheel nut (10,11). Side detail shows handwheel/cap options and optional open-close position indicator.

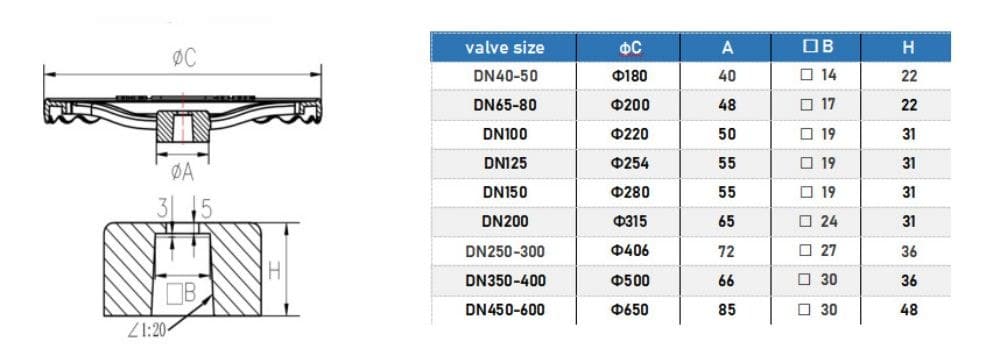

Diagram: Image index 5: Dimensional drawing of handwheel with table of dimensions (phi C, A, square B, H) vs. valve size DN40-50 through DN450-600.

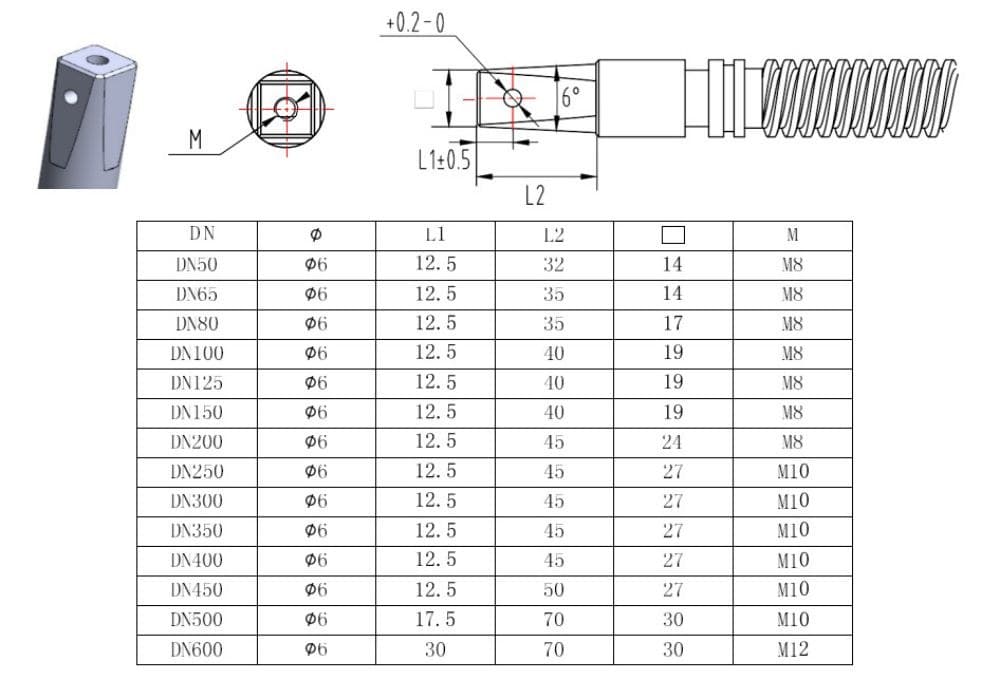

Diagram: Image index 6: Dimensional drawing of valve stem top end showing taper (6 degrees), pin hole diameter (phi 6 mm), dimensions L1 and L2, square drive size and thread M, with table for DN50 through DN600.

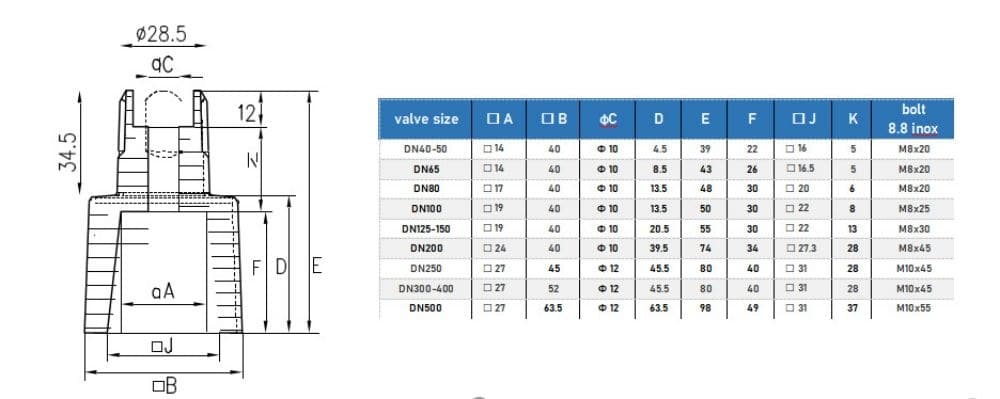

Diagram: Image index 7: Dimensional drawing of gearbox mounting/support bracket with dimensions A, B, C, D, E, F, J, K and bolt specification versus valve size DN40-50 through DN500.

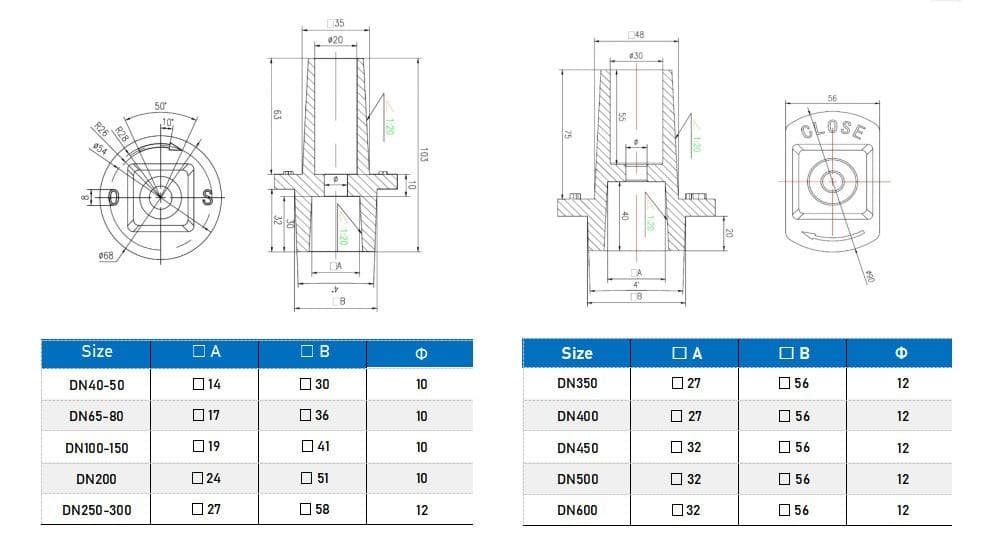

Diagram: Image index 8: Two-part dimensional drawing of extension spindle top caps/operating caps for small sizes (DN40-50 to DN250-300) and large sizes (DN350 to DN600), showing square A, square B and bore phi dimensions.

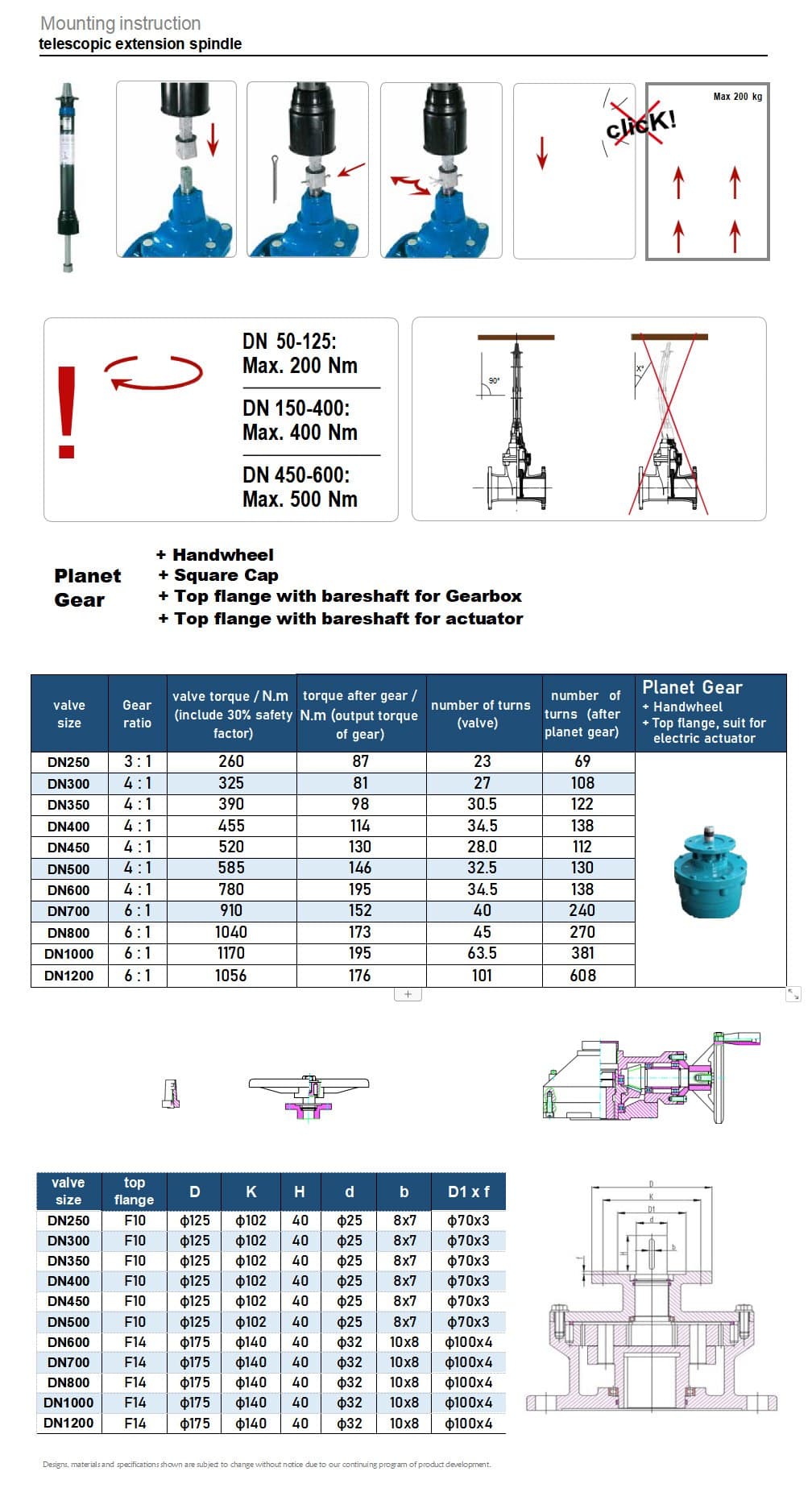

Diagram: Image index 10: Mounting instruction sheet for telescopic extension spindle showing step-by-step installation photos; maximum torque values by size range; planet gear specification table (gear ratio, valve torque, output torque, number of turns vs. DN250–DN1200); top flange dimensions table (F10/F14 flanges, D, K, H, d, b, D1xf) for DN250–DN1200; cross-section diagram of planet gearbox mounting.

Description

Resilient-seated gate valve with non-rising stem and brass nut type design, intended for isolation service in water, waste water, and sewage pipelines. Full bore construction permits bi-directional flow and self-cleaning of the sealing surface on each opening cycle. Hydraulic testing is performed to EN-12266-1 Class A (zero leakage); design conforms to EN-1074 with flanges to EN-1092-2 / BS4504.
