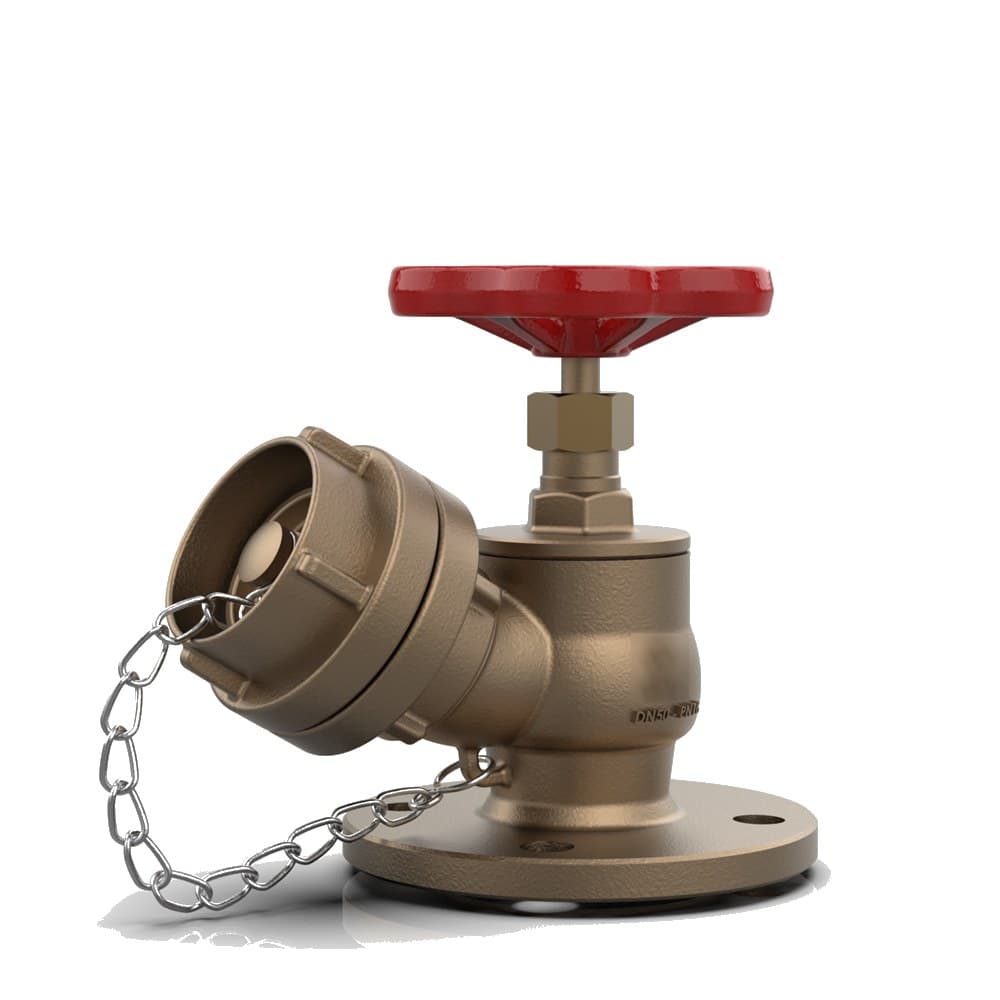

Angle Type 30 Oblique Type Fire Valve (Bolted Bonnet)
Model: VKYO-16
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN65
- Pressure Class
- PN16
- Standards
- BS 5041, DIN 86211, VisVana Design, EN 12266, Bolted Bonnet
- End connection
- Flange EN 1092-3 / B
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- seat
- stem
- packing
- gasket
- handwheel
- other.blind coupling
- other.bolt
- other.bolt nut
- other.chain rope
- other.fixed coupling
- other.gland
- other.gland nut
- other.seal coupling

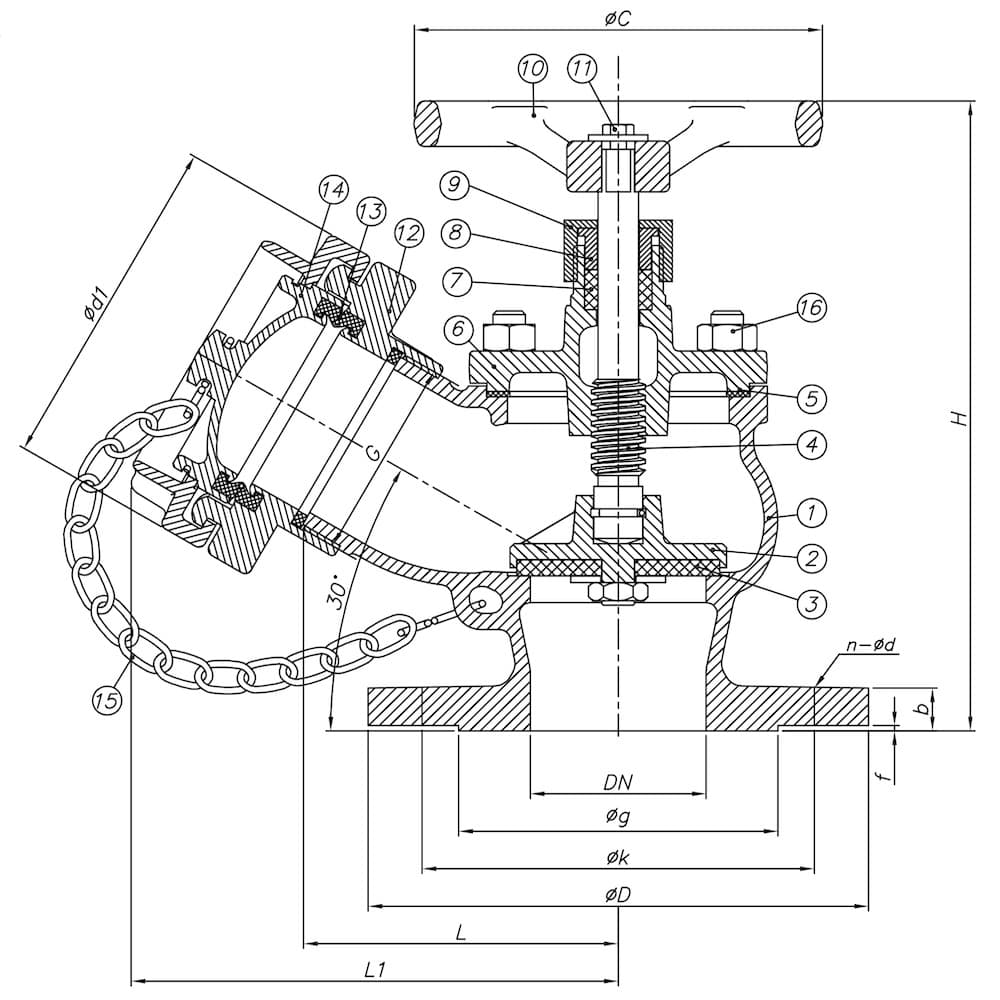

Dimensions per size(3 sizes)
| Size | L | L1 | H_close | H_open | G | d1 | C | OD | OK | Og | b | f | n_Od | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 150 mm | 220 mm | 160 mm | 170 mm | 1-1/2" inch | 98 mm | 140 mm | 150 mm | 110 mm | 84 mm | 14 mm | 2 mm | 4-18 mm | 6.8 kg |
| DN50 | 165 mm | 235 mm | 165 mm | 180 mm | 2" inch | 98 mm | 140 mm | 165 mm | 125 mm | 99 mm | 16 mm | 2 mm | 4-18 mm | 8.2 kg |
| DN65 | 200 mm | 265 mm | 185 mm | 205 mm | 2-1/2" inch | 126 mm | 150 mm | 185 mm | 145 mm | 118 mm | 16 mm | 2 mm | 4-18 mm | 12.2 kg |
Operating media
Actuation options
Features
- 30° oblique body angle
- Bolted bonnet construction
- Coupling options: Storz, BS 336, Nor, Nakajima
- Chain/rope retainer for coupling cap
- Flange options available in ASME, JIS, VG in addition to EN 1092-3/B
Description
A 30° oblique type fire valve with bolted bonnet construction, designed to BS 5041 and DIN 86211. Available in DN40 to DN65 with PN16 pressure rating and bronze or cast steel body options. Fitted with flanged end connections to EN 1092-3/B and coupling options including Storz, BS 336, Nor, and Nakajima.
