JIS Angle Globe Valve
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN15-DN40
- Pressure Class
- 16K
- Standards
- JIS F7304, JIS F7410, JIS B2240 - 16K, JIS F7400
- End connection
- Flange Ends JIS B2240 - 16K
- Operating temperature
- Steam < 205 °C Water < 120 °C
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- disc
- stem
- packing
- handwheel
- other.disc nut
- other.gland nut
- other.lock plate
- other.nut
- other.packing gland
- other.screw

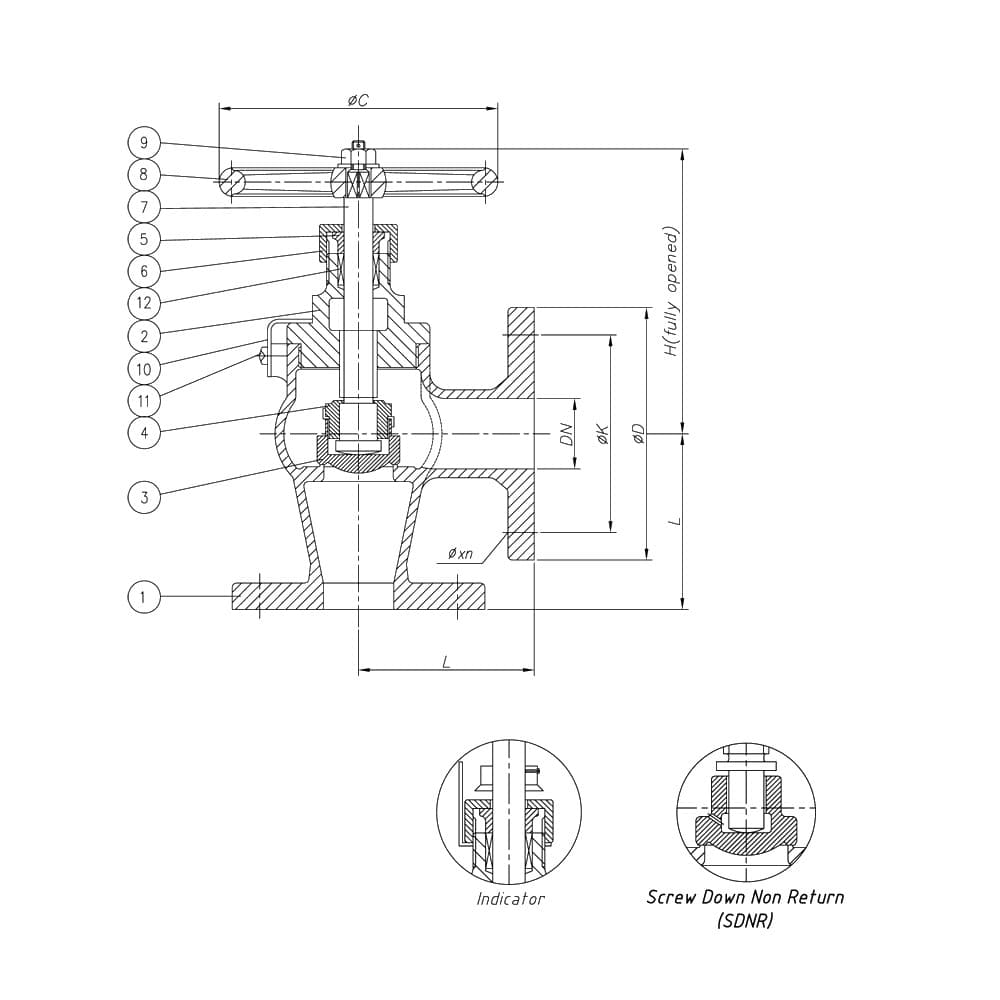

Dimensions per size(5 sizes)
| Size | L | H | C | D | K | Weight |
|---|---|---|---|---|---|---|
| DN15 | 70 mm | 120 mm | 80 mm | 95 mm | 70 mm | 2.73 kg |
| DN20 | 75 mm | 130 mm | 100 mm | 100 mm | 75 mm | 3.65 kg |
| DN25 | 85 mm | 145 mm | 125 mm | 125 mm | 90 mm | 5.16 kg |
| DN32 | 95 mm | 150 mm | 125 mm | 135 mm | 100 mm | 6.72 kg |
| DN40 | 100 mm | 165 mm | 140 mm | 140 mm | 105 mm | 8.13 kg |
Operating media
Actuation options
Features
- Angle-pattern body configuration
- Available in STOP (JIS F7304) and Screw Down Non Return / SDNR (JIS F7410) variants
- Indicator feature available
- Graphite packing
- Flanged ends per JIS B2240 16K
Description
An angle-pattern globe valve designed to JIS F7304 (STOP) and JIS F7410 (SDNR) standards, available in DN15–DN40 with a 16K pressure rating. The body and bonnet are bronze construction with brass or bronze disc, suitable for air, gas, oil, and pulsation water service. A screw-down non-return (SDNR) configuration is also available.
