JIS Valve

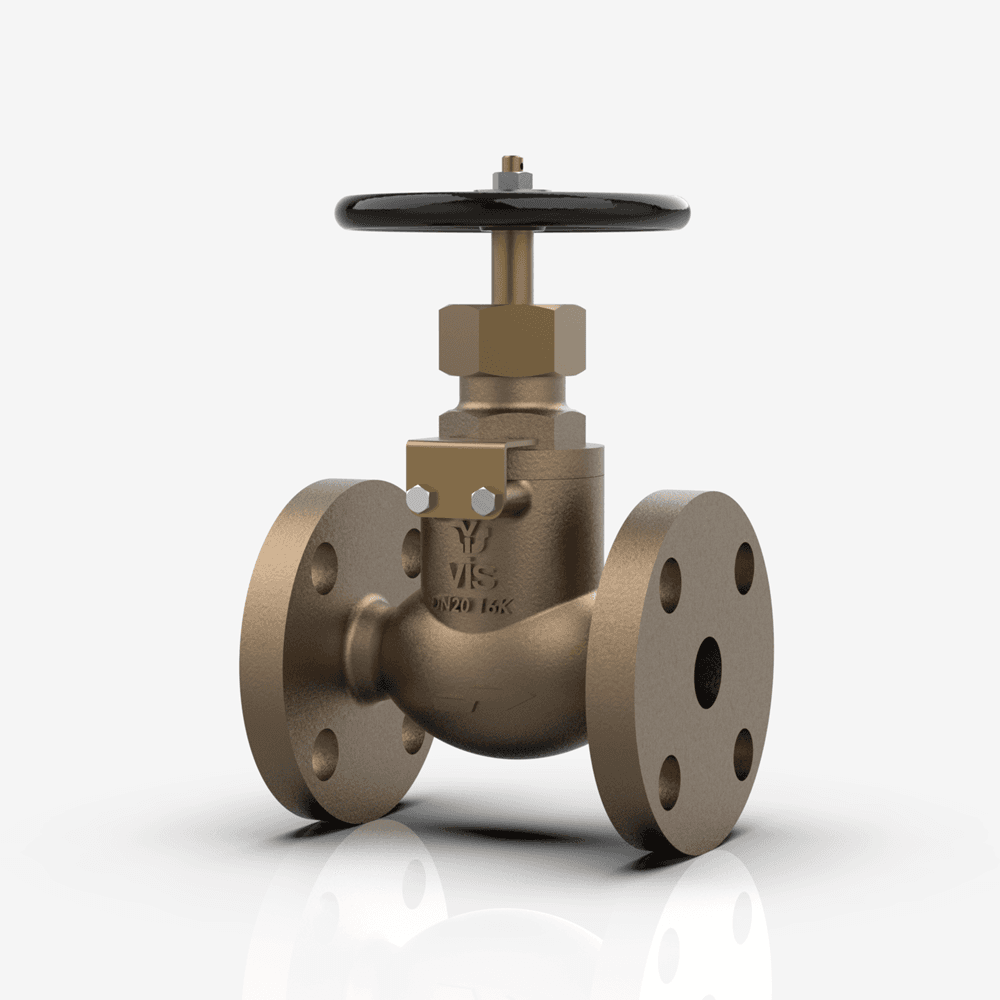

JIS 16K Straight Globe Valve

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 133

Specifications

Confirmed at quote
Size Range
DN15-DN40
Pressure Class
16K
Standards
JIS F7303, JIS F7409, JIS B2240 - 16K, JIS F7400
End connection
Flange Ends JIS B2240 - 16K
Operating temperature
Steam < 205 °C, Water < 120 °C

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN15DN20DN25DN32DN40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
disc
stem
packing
handwheel
other.disc nut
other.gland nut
other.lock plate
other.nut
other.packing gland
other.screw
Dimensions per size(5 sizes)
SizeLHCDKWeight
DN15110 mm130 mm80 mm95 mm70 mm2.76 kg
DN20120 mm140 mm100 mm100 mm75 mm3.72 kg
DN25130 mm160 mm125 mm125 mm90 mm5.2 kg
DN32160 mm170 mm125 mm135 mm100 mm6.91 kg
DN40180 mm190 mm140 mm140 mm105 mm8.43 kg

Operating media

airgasoilpulsation watersteamwater

Actuation options

manual handwheel

Features

  • Straight globe pattern
  • Available as STOP valve (JIS F7303) and Screw Down Non Return variant (JIS F7409 SDNR)
  • Position indicator
  • Graphite packing
  • Flanged ends to JIS B2240 16K

Description

A straight pattern globe valve designed to JIS F7303 (STOP) and JIS F7409 (SDNR) standards, rated at 16K pressure class. Available in sizes DN15 to DN40 with bronze body and bonnet, suitable for steam, water, air, gas, oil, and pulsation water service.
