JIS Valve

JIS 5K Cast Iron Gate Valve

Debug ยท supplier source (internal only)

Supplier product page โ†—Supplier datasheet PDF โ†—EFC datasheet PDF โ†—supplier: visvana ยท ref: 128

Specifications

Confirmed at quote
Size Range
DN50-DN600
Pressure Class
5K
Standards
JIS F7363, JIS B2240-5K, JIS F7400
End connection
Flange (JIS B2240-5K)

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50DN65DN80DN100DN125DN150DN200DN250DN300DN350DN400DN450DN500DN600

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
wedge
seat
stem
packing
gasket
handwheel
other.gland
other.indicator
other.stem nut
other.stud nut
other.stuffing box
other.wedge ring

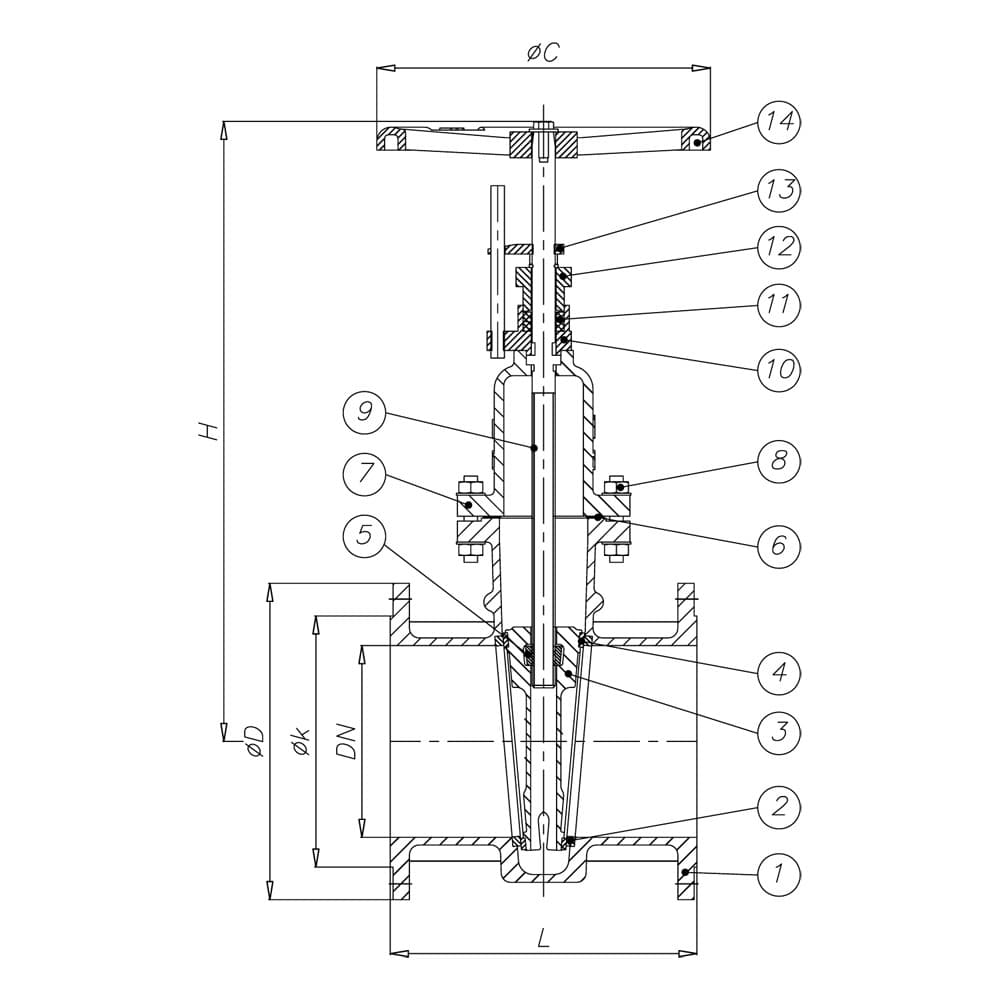

Dimensions per size(14 sizes)
SizeLHCDKWeight
DN50180 mm235 mm160 mm130 mm105 mmโ€”
DN65190 mm260 mm160 mm155 mm130 mmโ€”
DN80200 mm290 mm200 mm180 mm145 mmโ€”
DN100230 mm310 mm220 mm200 mm165 mmโ€”
DN125250 mm435 mm250 mm235 mm200 mmโ€”
DN150270 mm455 mm250 mm265 mm230 mmโ€”
DN200290 mm580 mm300 mm320 mm280 mmโ€”
DN250330 mm720 mm400 mm385 mm345 mmโ€”
DN300370 mm815 mm400 mm430 mm390 mmโ€”
DN350410 mm925 mm520 mm480 mm435 mmโ€”
DN400470 mm1030 mm520 mm540 mm495 mmโ€”
DN450500 mm1075 mm520 mm605 mm555 mmโ€”
DN500550 mm1265 mm600 mm655 mm605 mmโ€”
DN600660 mm1300 mm600 mm770 mm715 mmโ€”

Operating media

WaterAirGasOil

Actuation options

manual handwheel

Description

Cast iron gate valve designed to JIS F7363 standard with a 5K pressure rating. Available in sizes DN50 to DN600 with JIS B2240 5K flanged ends. Suitable for water, air, gas, and oil service.
