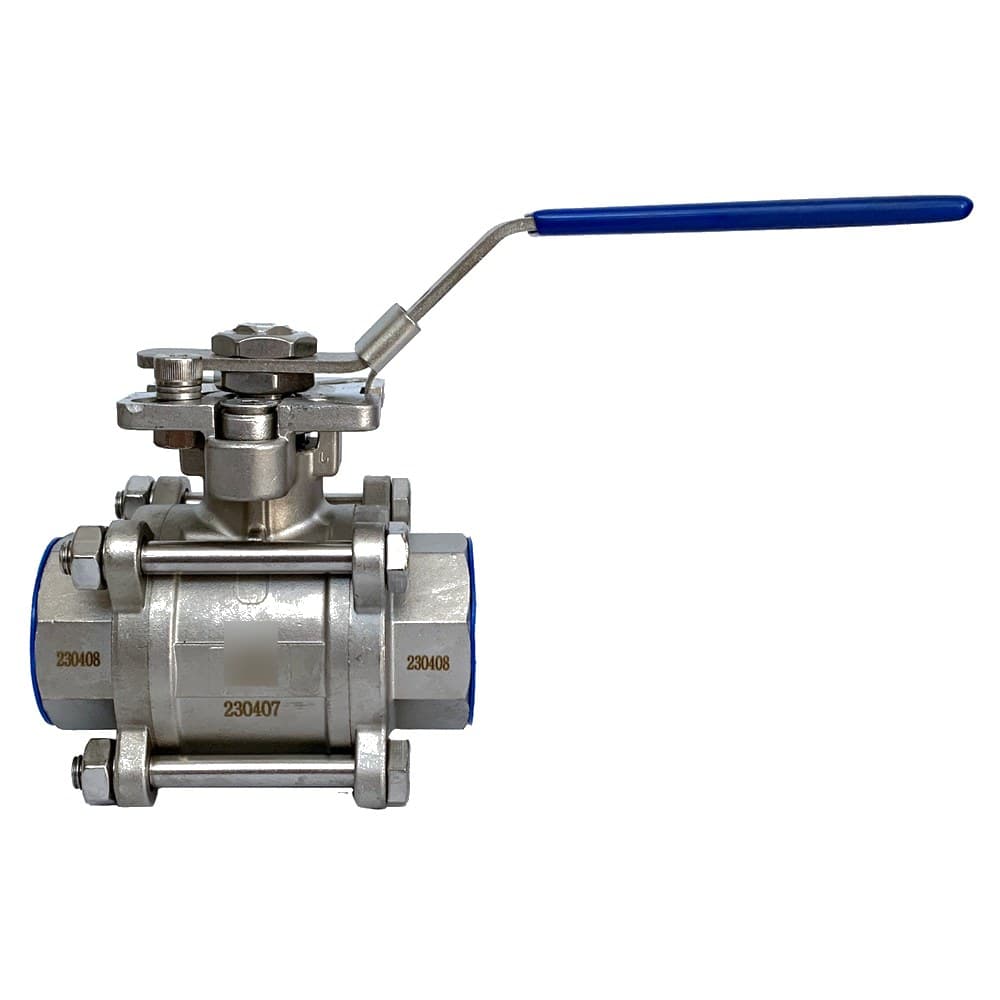

SS 3PC Ball Valve M3 - ISO 5211 - BSP
Model: VTDK-63
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN8-DN100
- Pressure Class
- 63 bar
- Standards
- ISO 5211 F03/F04, ISO 5211 F04/F05, ISO 5211 F05/F07, ISO 5211 F07/F10
- End connection
- BSP (Rc thread)
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- ball
- seat
- stem
- packing
- other.bolt
- other.cap
- other.gland
- other.lever
- other.lever cover
- other.lock
- other.nut body
- other.nut stem
- other.washer
Dimensions per size(11 sizes)
| Size | L | D | H | T | Weight |
|---|---|---|---|---|---|
| DN8 | 65 mm | 8 mm | 65 mm | 131 mm | โ |
| DN10 | 65 mm | 10 mm | 65 mm | 131 mm | โ |
| DN15 | 75 mm | 15 mm | 63 mm | 131 mm | โ |
| DN20 | 80 mm | 20 mm | 74 mm | 131 mm | โ |
| DN25 | 90 mm | 25 mm | 86 mm | 167 mm | โ |
| DN32 | 110 mm | 32 mm | 95 mm | 167 mm | โ |
| DN40 | 120 mm | 40 mm | 116 mm | 193 mm | โ |
| DN50 | 140 mm | 50 mm | 122 mm | 193 mm | โ |
| DN65 | 185 mm | 65 mm | 147 mm | 242 mm | โ |
| DN80 | 205 mm | 80 mm | 153 mm | 272 mm | โ |
| DN100 | 235 mm | 100 mm | 167 mm | 295 mm | โ |
Operating media
Actuation options
Features
- 3-piece body construction
- BSP threaded end connections
- ISO 5211 direct mounting pad
- PTFE seats and packing
- Lever handle with PVC cover and lock device
- Available in SS304 and SS316 trim options
Description
A 3-piece stainless steel ball valve with BSP threaded ends, rated to 63 bar across a size range of DN8 to DN100. Features ISO 5211 direct mounting pad for actuator fitment. Suitable for water, oil, and gas applications in the temperature range of -20 to 180ยฐC.
