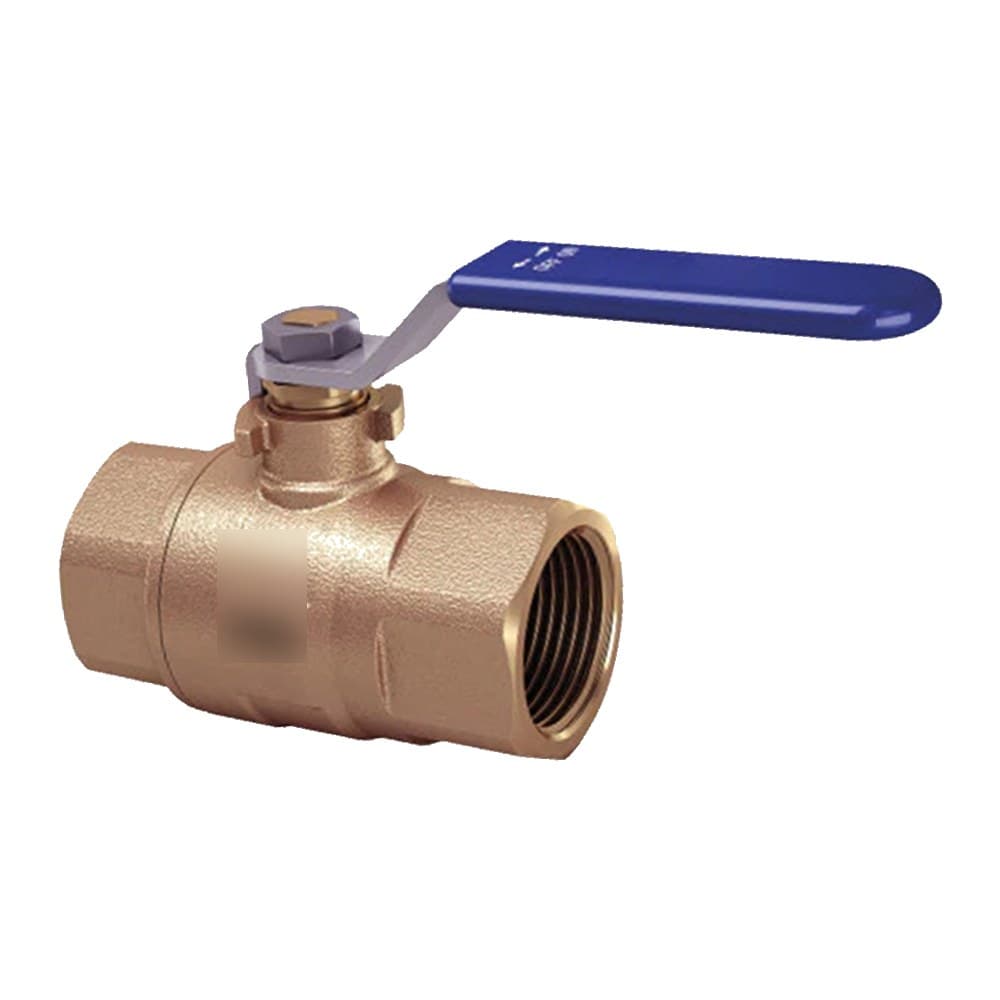

Bronze Ball Valve - BSP
Model: VFBKV-20
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN8-DN100
- Pressure Class
- 20 bar
- End connection
- BSP
- Operating temperature
- < 170 ยฐC
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- ball
- seat
- stem
- packing
- gasket
- other.gland nut
- other.lever
- other.lever cover
- other.nut
- other.retainer
- other.stem gasket

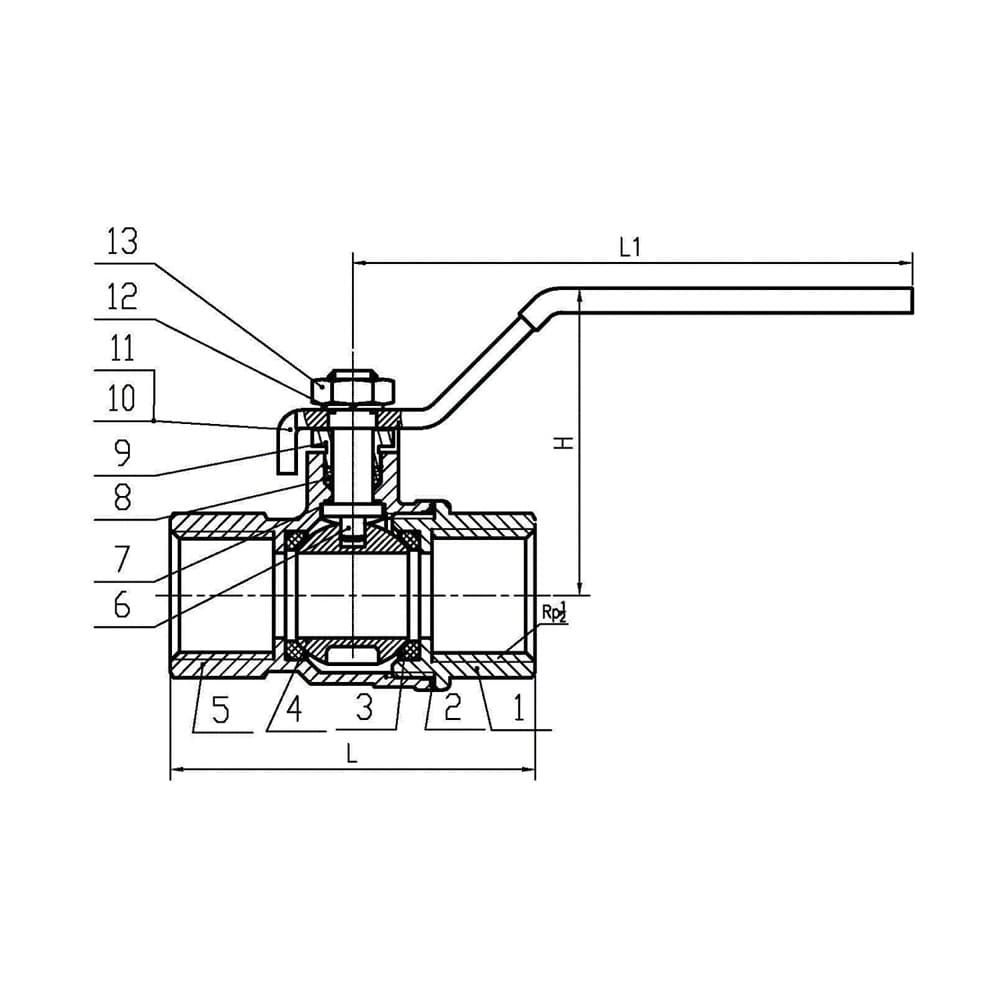

Dimensions per size(11 sizes)
| Size | L | L1 | H | diameter | Weight |
|---|---|---|---|---|---|
| DN8 | 43 mm | 70 mm | 28 mm | 9.5 mm | โ |
| DN10 | 46 mm | 70 mm | 28 mm | 9.5 mm | โ |
| DN15 | 53 mm | 95 mm | 44 mm | 14 mm | โ |
| DN20 | 61 mm | 110 mm | 51 mm | 19 mm | โ |
| DN25 | 71 mm | 110 mm | 55 mm | 24 mm | โ |
| DN32 | 85 mm | 140 mm | 65 mm | 31 mm | โ |
| DN40 | 92 mm | 140 mm | 70 mm | 38 mm | โ |
| DN50 | 114 mm | 160 mm | 83 mm | 49 mm | โ |
| DN65 | 134 mm | 220 mm | 118 mm | 63 mm | โ |
| DN80 | 152 mm | 270 mm | 132 mm | 73 mm | โ |
| DN100 | 182 mm | 280 mm | 150 mm | 90 mm | โ |
Operating media
Actuation options
Description
A bronze threaded ball valve with BSP end connections, rated to 20 bar. Available in sizes DN8 to DN100, suitable for water, oil, and gas applications up to 170ยฐC. Features a PTFE seat and stem gasket with a chrome-plated steel lever.
