Wafer Type Butterfly Valve
Model: VWKV-16
Debug ยท supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN50-DN600
- Pressure Class
- PN16
- Standards
- TS 11341, DIN 3337/K1, ISO 5752/20-5, ISO 5211/1, TS 810, DIN 2501, ASME B16.5, JIS B2220
- End connection
- Wafer type
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- disc
- seat
- shaft
- bushing
- o ring

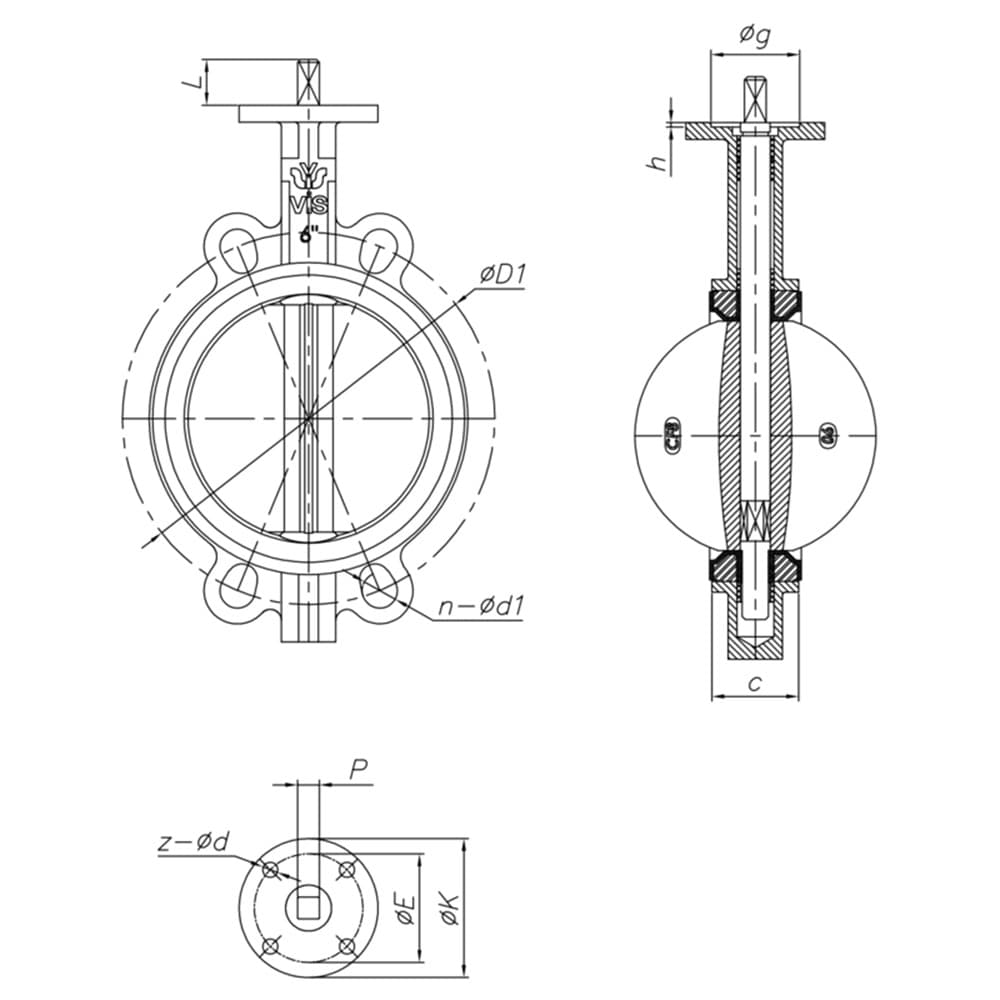

Dimensions per size(14 sizes)
| Size | C | L | Weight |
|---|---|---|---|
| DN50 | 43 mm | 46 mm | 3.5 kg |
| DN65 | 43 mm | 46 mm | 4 kg |
| DN80 | 46 mm | 46 mm | 4.4 kg |
| DN100 | 52 mm | 52 mm | 6 kg |
| DN125 | 56 mm | โ | 7.3 kg |
| DN150 | 56 mm | โ | 8.5 kg |
| DN200 | 60 mm | โ | 15.8 kg |
| DN250 | 68 mm | 45 mm | 22.4 kg |
| DN300 | 78 mm | โ | 32.9 kg |
| DN350 | 78 mm | 46 mm | 54 kg |
| DN400 | 102 mm | 51 mm | 76 kg |
| DN450 | 114 mm | 64 mm | 93 kg |
| DN500 | 127 mm | 70 mm | 133 kg |
| DN600 | 154 mm | โ | 198 kg |
Actuation options
Description
A wafer type butterfly valve rated to maximum PN16, available in sizes DN50 to DN600. The valve features a resilient seat design with multiple body and disc material options. Face-to-face dimensions comply with EN 558 Serie 20, DIN 3202-K1, and API 609.
