Gate Valve PN100

Name: Gate Valve PN100
Brand: Euro Flow Control
SKU: EFC-60
Availability: InStock

Model: VYM-100

Debug · supplier source (internal only)

Supplier product page ↗Supplier datasheet PDF ↗EFC datasheet PDF ↗supplier: visvana · ref: 60

Specifications

Confirmed at quote

Size Range: DN50-DN300
Pressure Class: PN100
Standards: EN 1171, DIN 3352, EN 558 Serie 26, DIN3202 F7, DIN EN 1092-1, DIN EN 12266, DIN 2401
End connection: Flange ends (DIN EN 1092-1)
Face-to-face: EN 558 Serie 26 / DIN3202 F7
Operating temperature: -20°C to +400°C

Available sizes

Standard DN sizes covered by this product. Confirmed at quote.

DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

body
bonnet
wedge
seat
stem
packing
gasket
handwheel
other.back seat
other.centering nut
other.eye bolt
other.gland flange
other.handwheel nut
other.nut
other.packing nut
other.yoke nut

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
G-SC 25 (GP 240GH+N)	-20°C	100 bar
G-SC 25 (GP 240GH+N)	120°C	100 bar
G-SC 25 (GP 240GH+N)	200°C	90 bar
G-SC 25 (GP 240GH+N)	250°C	80 bar
G-SC 25 (GP 240GH+N)	300°C	70 bar
G-SC 25 (GP 240GH+N)	350°C	60 bar
G-SC 25 (GP 240GH+N)	400°C	56 bar
ASTM A Gr. A216 WCB	-20°C	100 bar
ASTM A Gr. A216 WCB	120°C	100 bar
ASTM A Gr. A216 WCB	200°C	80 bar
ASTM A Gr. A216 WCB	250°C	70 bar
ASTM A Gr. A216 WCB	300°C	60 bar
ASTM A Gr. A216 WCB	350°C	56 bar
ASTM A Gr. A216 WCB	400°C	50 bar

Dimensions per size(9 sizes)

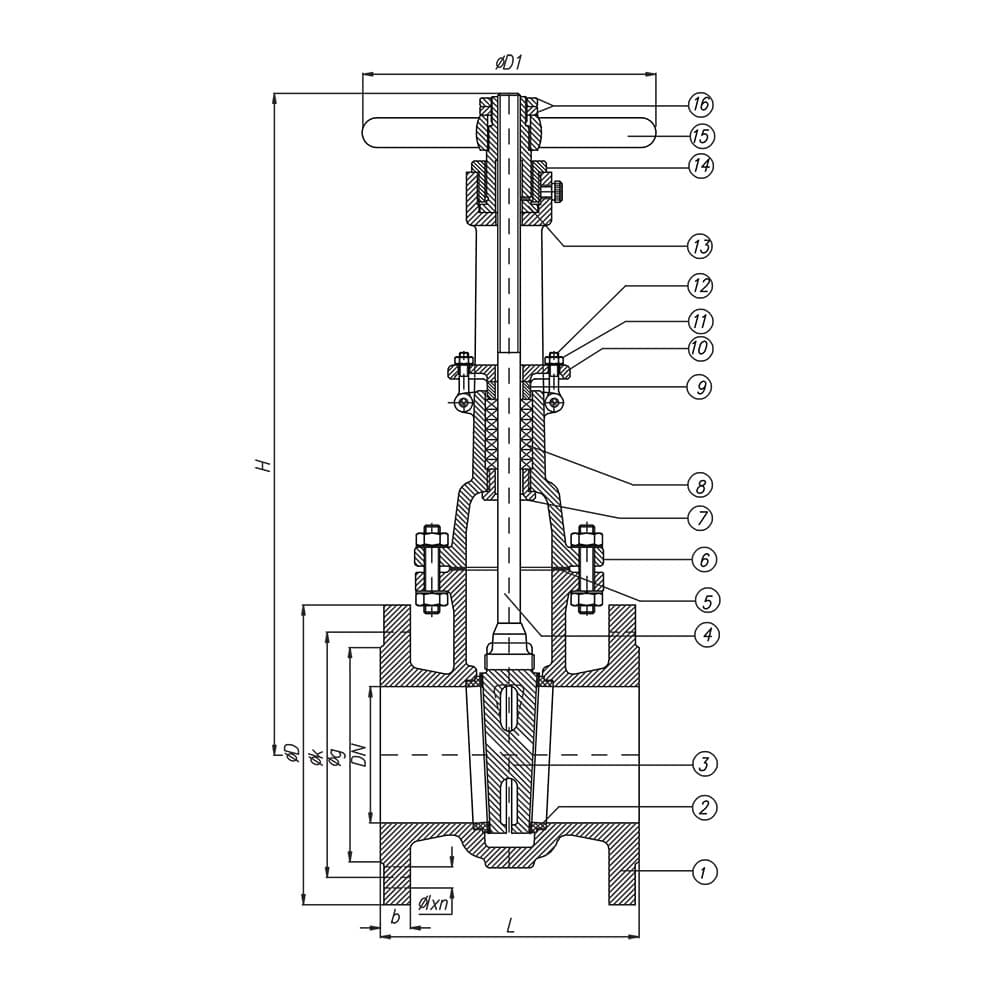

Size	L	H	OM	OD	Ok	Og	b	Weight
DN50	250 mm	490 mm	250 mm	195 mm	145 mm	102 mm	30 mm	25 kg
DN65	290 mm	540 mm	250 mm	220 mm	170 mm	122 mm	34 mm	32 kg
DN80	310 mm	575 mm	310 mm	230 mm	180 mm	138 mm	36 mm	36 kg
DN100	350 mm	675 mm	415 mm	265 mm	210 mm	162 mm	40 mm	55 kg
DN125	400 mm	745 mm	500 mm	315 mm	250 mm	188 mm	40 mm	88 kg
DN150	450 mm	800 mm	500 mm	355 mm	290 mm	218 mm	44 mm	110 kg
DN200	550 mm	890 mm	600 mm	430 mm	360 mm	285 mm	52 mm	155 kg
DN250	650 mm	1050 mm	720 mm	515 mm	430 mm	345 mm	60 mm	310 kg
DN300	750 mm	1200 mm	720 mm	585 mm	500 mm	410 mm	68 mm	355 kg

Actuation options

manual handwheel

Description

A flanged gate valve rated to PN100, covering sizes DN50 to DN300. Designed to EN 1171 and DIN 3352 with face-to-face dimensions per EN 558 Series 26 and DIN 3202 F7. Operating temperature range is -20 to +400 °C with flange ends to DIN EN 1092-1.
