Gate Valve With Stuf. Box and Indicator
Model: VSG-16
Debug · supplier source (internal only)
Specifications
Confirmed at quote- Size Range
- DN40-DN600
- Pressure Class
- PN16
- Standards
- EN 1171, DIN 3352, EN 558 Serie 14, DIN3202 F4, EN 12266, DIN EN 1092 PN10, DIN EN 1092 PN16
- End connection
- Flanged (EN 1092-2 PN10 / PN16)
- Face-to-face
- EN 558 Serie 14, DIN 3202 F4
Available sizes
Standard DN sizes covered by this product. Confirmed at quote.
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- body
- bonnet
- wedge
- seat
- stem
- packing
- gasket
- handwheel
- other.bolt
- other.gland
- other.indicator
- other.indicator pin
- other.stem nut
- other.stud nut
- other.stuffing box
- other.wedge seat

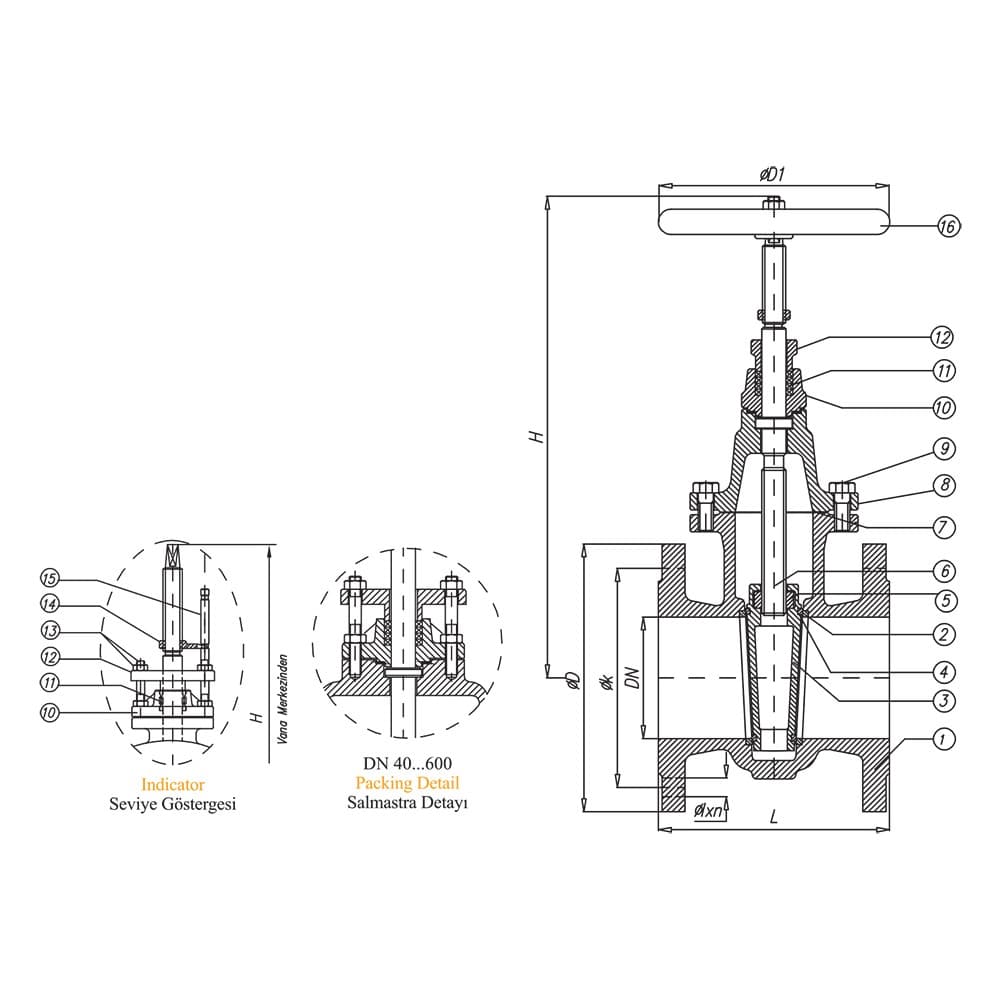

Dimensions per size(14 sizes)
| Size | L | H | D1 | Weight |
|---|---|---|---|---|
| DN40 | 140 mm | 195 mm | 160 mm | 11 kg |
| DN50 | 150 mm | 235 mm | 160 mm | 13 kg |
| DN65 | 170 mm | 260 mm | 160 mm | 18 kg |
| DN80 | 180 mm | 280 mm | 200 mm | 21 kg |
| DN100 | 190 mm | 310 mm | 200 mm | 26 kg |
| DN125 | 200 mm | 435 mm | 200 mm | 41 kg |
| DN150 | 210 mm | 455 mm | 250 mm | 52 kg |
| DN200 | 230 mm | 580 mm | 250 mm | 81 kg |
| DN250 | 250 mm | 720 mm | 315 mm | 120 kg |
| DN300 | 270 mm | 815 mm | 315 mm | 165 kg |
| DN350 | 290 mm | 925 mm | 400 mm | 222 kg |
| DN400 | 310 mm | 1030 mm | 400 mm | 280 kg |
| DN500 | 350 mm | 1285 mm | 500 mm | 445 kg |
| DN600 | 390 mm | 1450 mm | 500 mm | 605 kg |
Actuation options
Features
- Stuffing box design for stem sealing
- Integrated position indicator
- Double threaded stem option available
- Drain plug option available
- ISO top flange for actuator mounting
- Flange options: ANSI, JIS in addition to DIN EN 1171
Description
A flanged gate valve with stuffing box and position indicator, designed to EN 1171 and DIN 3352. Available in sizes DN40 to DN600 with a maximum pressure rating of PN16. Options include double-threaded stem, drain plug, electrical, pneumatic, linear or multi-turn hydraulic actuators, and ISO top flange for actuator mounting.
